Auxiliary Radiators
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

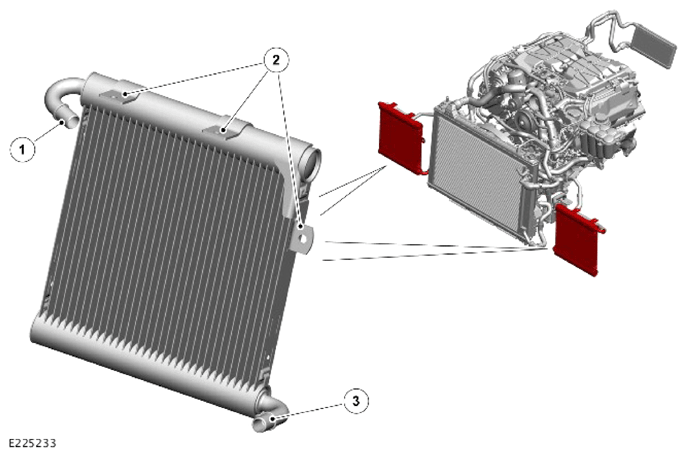

Left auxiliary radiator shown, right is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine coolant inlet connection |
| 2 | Mounting brackets |
| 3 | Hose connection to Automatic Transmission Fluid (ATF) cooler |
The auxiliary radiators increase engine cooling capacity. The auxiliary radiators are connected in parallel with the radiator and installed in an air duct, which takes cooling air from the related side grille in the front bumper.
The left end of the left auxiliary radiator is partitioned and directs the cooled engine coolant direct to the Automatic Transmission Fluid (ATF) cooler.
