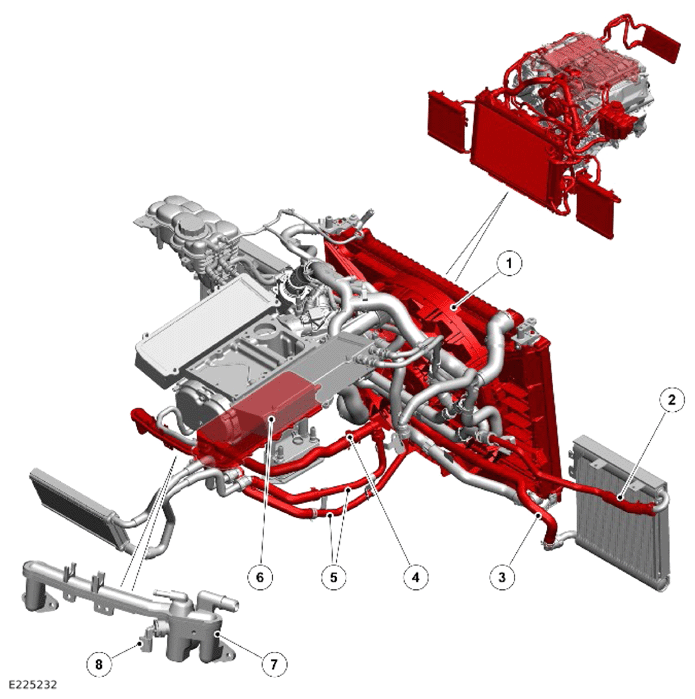

Component Location - 2 Of 2 - Rear View
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Cooling module |
| 2 |
Auxiliary radiator coolant supply hose |
| 3 |
Auxiliary radiator coolant return hose |
| 4 |
Bleed screw |
| 5 |
Heater core supply and return hoses |
| 6 |
Oil cooler |
| 7 |
Heater manifold |
| 8 |
Engine Coolant Temperature (ECT) sensor 1 |
