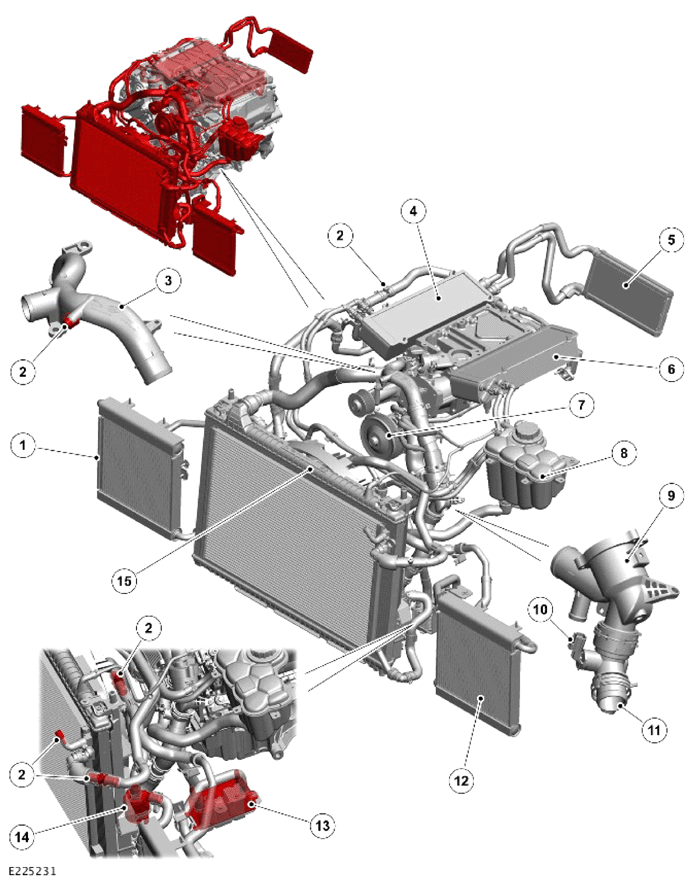

Component Location - 1 Of 2 - Front View
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Right auxiliary radiator |
| 2 | Bleed screw (quantity 3) |
| 3 | Coolant outlet pipe |
| 4 | Right charge air cooler |
| 5 | Heater core |
| 6 | Left charge air cooler |
| 7 | Coolant pump |
| 8 | Coolant expansion tank |
| 9 | Thermostat |
| 10 | Engine Coolant Temperature (ECT) sensor 2 |
| 11 | Lower pipe connection |
| 12 | Left auxiliary radiator |
| 13 | Automatic Transmission Fluid (ATF) cooler |
| 14 | Charge air coolant pump |
| 15 | Charge air radiator |
