Torque Specifications

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Numbers with a green background are a single use component.

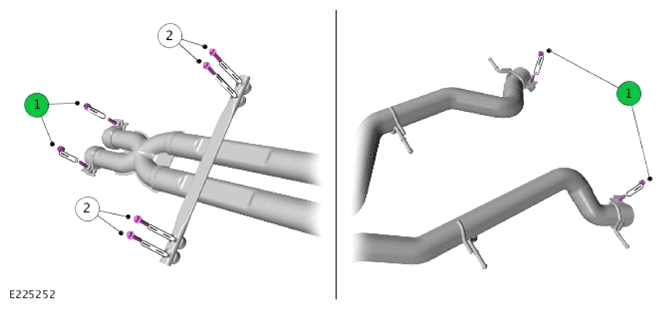

COMPONENT TORQUE LOCATION

G14007741Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

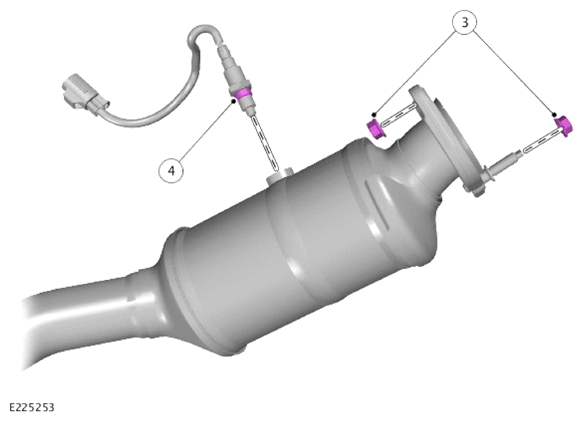

COMPONENT TORQUE LOCATION

G14007742Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATION

  DESCRIPTION NM LB-FT LB-IN
1 Exhaust clamp nut 55 41 -
2 Exhaust system front section cross brace bolt 25 18 -
3 Catalytic converter retaining nut 40 30 -
4 Heated Oxygen Sensor (HO2S) 48 35 -
