Rear Silencer (G2270512): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear undershield.
Refer to: REAR UNDERSHIELD - PROJECT 8
CAUTION: Make sure the rear bumper cover is not damaged when following this step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

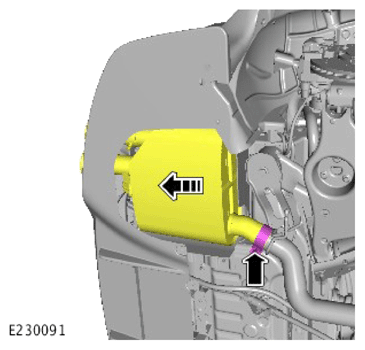

- Remove the rear silencer clamp.
- Reposition the rear silencer away from the exhaust center section.
CAUTION:
- Make sure the rear silencer is supported throughout this step.
- Do not allow the rear silencer to hang from the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

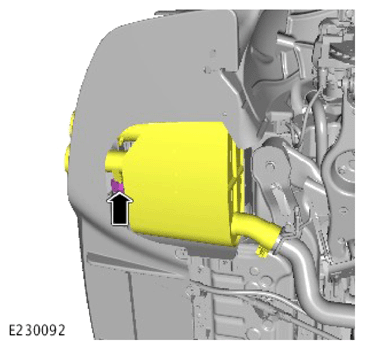

Remove the exhaust mounting rubber.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

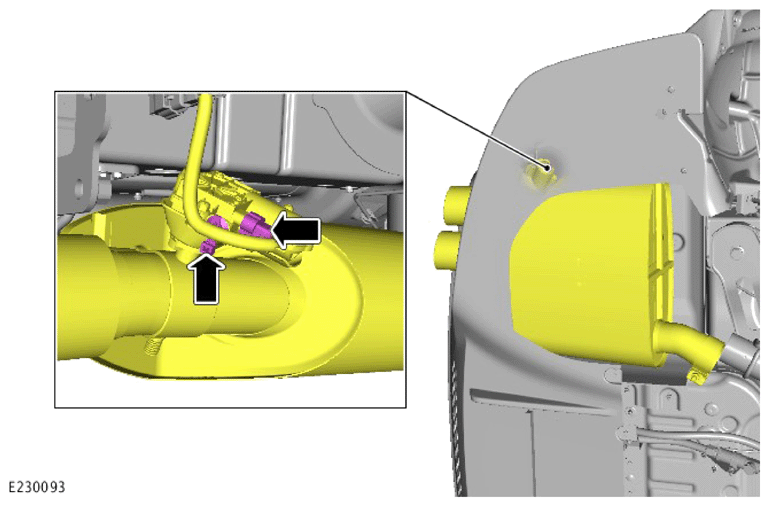

- Reposition the rear silencer to gain access to the active exhaust actuator.
- Disconnect the electrical connector.
- Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

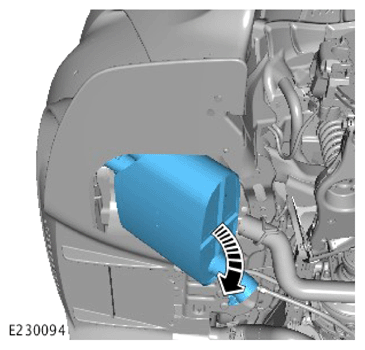

Remove the rear silencer as illustrated.
