Rear Silencer (G2270512): Installation
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
- Install the rear silencer.
-
- Connect the electrical connector.
- Install the wiring harness clip.
- Install the exhaust mounting rubber.
-
CAUTION:
- Make sure the rear bumper cover is not damaged when following this step.
- Make sure the rear silencer is installed until the pip on the exhaust center section is not visible.
- Install the rear silencer to the exhaust center section.
- Install and tighten the clamp.
Torque : 55Nm

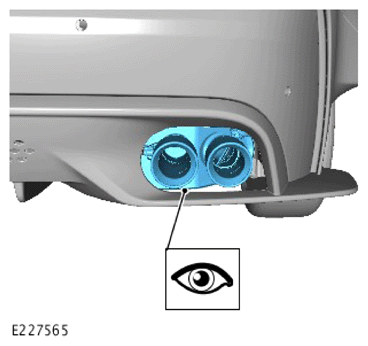

Make sure the rear silencer is positioned correctly in the rear bumper cover.
- Install the rear undershield.
Refer to: REAR UNDERSHIELD - PROJECT 8
