Left Catalytic Converter (G2244166): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8
Remove the front muffler.
Refer to: EXHAUST SYSTEM CENTER SECTION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

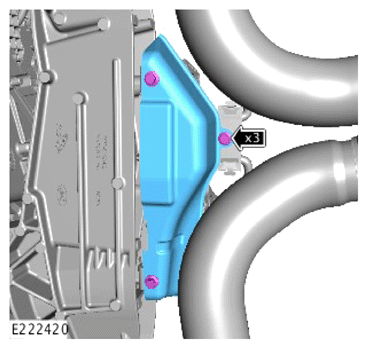

Remove the 3 bolts and the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

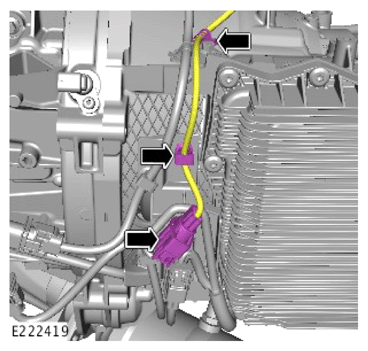

- Disconnect the electrical connector.
- Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

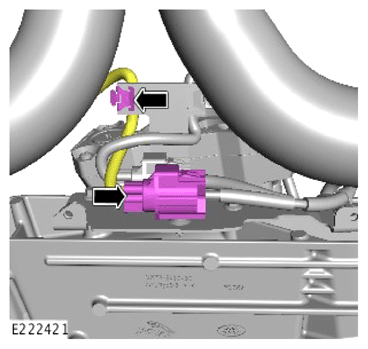

- Disconnect the electrical connector.
- Release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

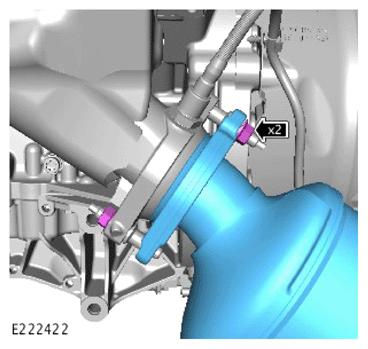

Remove the 2 nuts and the catalytic converter.
NOTE:
- If accidentally dropped or knocked install a new sensor.
- Only perform the following step(s) if a new component is to be installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

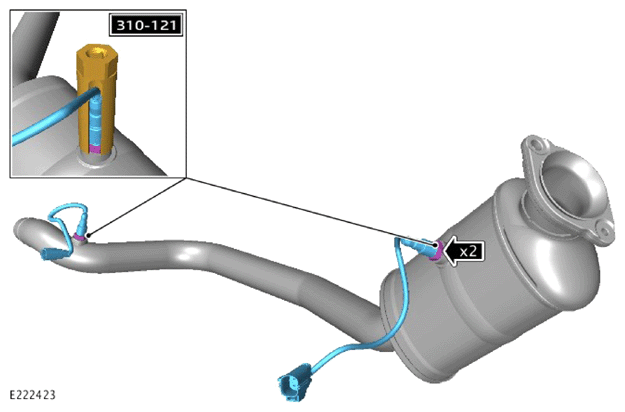

Using the special tool, remove the 2 Heated Oxygen Sensors (HO2S).

Special Tool(s): 310-121
