Exhaust System Center Section (G2270513): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear undershield.
Refer to: REAR UNDERSHIELD - PROJECT 8
CAUTION: Make sure the rear bumper cover is not damaged when following this step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

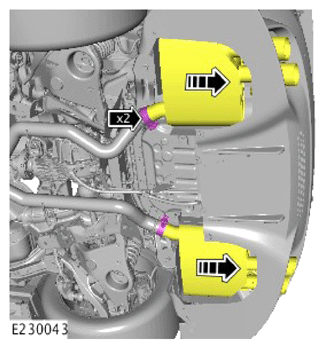

- Remove the 2 exhaust clamps.
- Reposition the rear silencers away from the exhaust system center section.
CAUTION: Support the exhaust system using a suitable stand.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

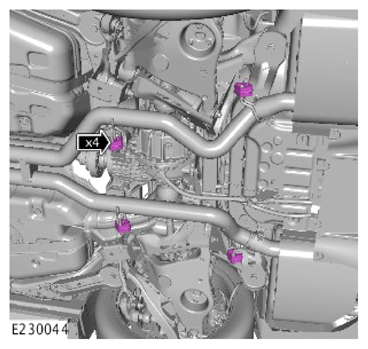

Release the 4 mounting rubbers.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

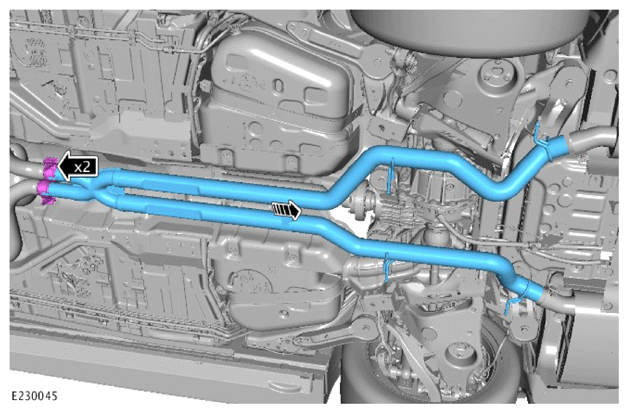

- Remove the 2 exhaust clamps.
- Remove the exhaust system center section.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

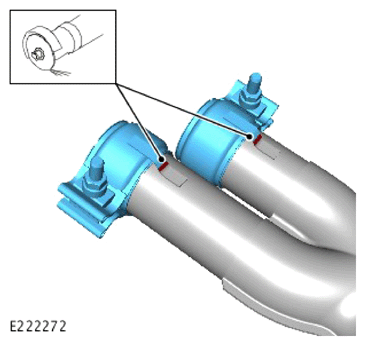

Using a suitable cutting tool remove and discard the 2 clamps.
