Rear Section
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

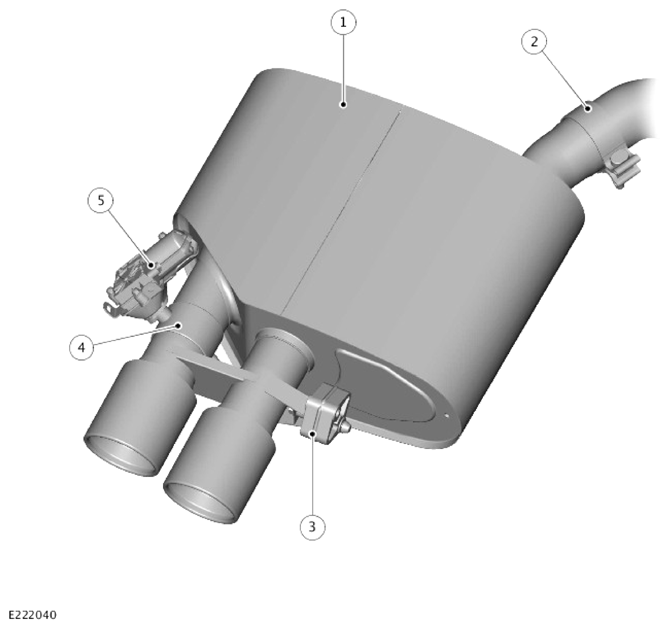

Left rear silencer is shown, right is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear silencer |
| 2 | Clamp |
| 3 | Mounting rubber |
| 4 | Active exhaust valve |
| 5 | Active exhaust actuator |
An exhaust valve is installed on the outlet pipe of each rear silencer, which is the part of the active exhaust system. The exhaust gases are expelled via 2 outlet pipes on each of the rear silencers. Lightweight titanium exhaust finishers are welded onto the outlet pipes.
