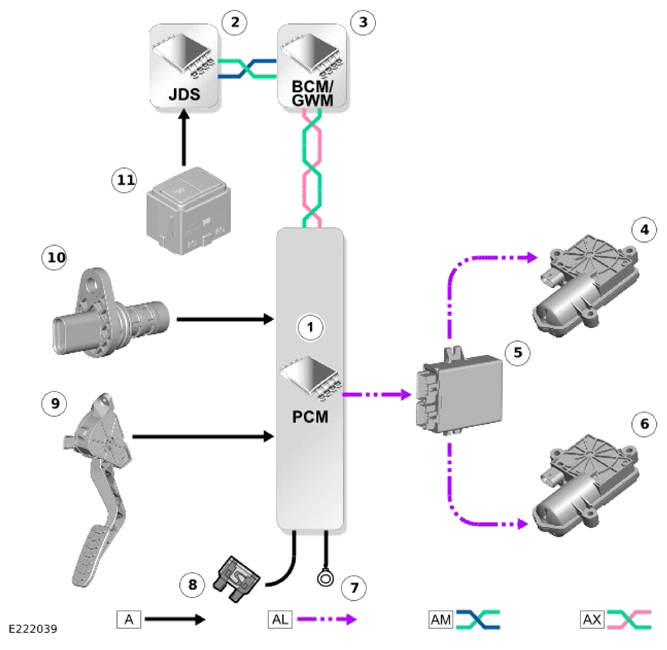

Control Diagram
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AL: PULSE WITH MODULATION (PWM): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | JaguarDrive Switchpack (JDS) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Active exhaust actuator - Right |
| 5 | Active Exhaust Module (AEM) |
| 6 | Active exhaust actuator - Left |
| 7 | Ground |
| 8 | Power supply |
| 9 | Accelerator Pedal Position (APP) sensor |
| 10 | Crankshaft Position (CKP) sensor |
| 11 | Active exhaust switch |
