Component Location - 2 Of 2 - Active Exhaust System

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

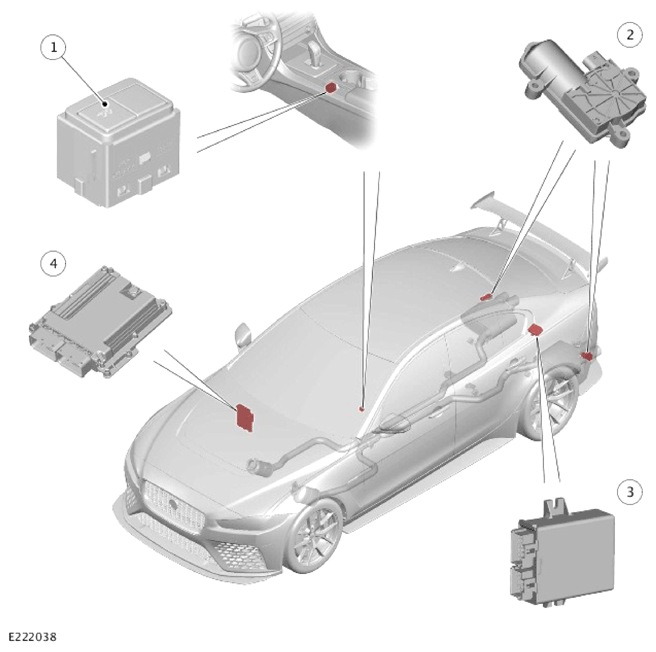

G14007744Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Active exhaust switch
2 Active exhaust actuator (quantity 2)
3 Active Exhaust Module (AEM)
4 Powertrain Control Module (PCM)
