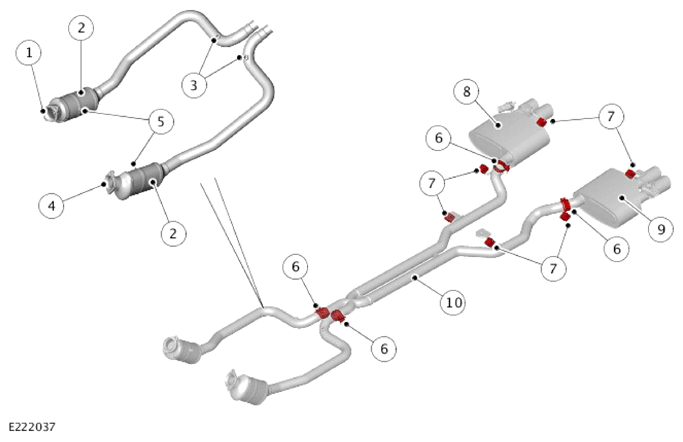

Component Location - 1 Of 2
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Flange connection to exhaust manifold - Bank 1 |
| 2 | Catalytic converter (quantity 2) |
| 3 | Threaded hole - Post catalyst Heated Oxygen Sensor (HO2S) (quantity 2) |
| 4 | Flange connection to exhaust manifold - Bank 2 |
| 5 | Threaded hole - Mid catalyst HO2S (quantity 2) |
| 6 | Clamp (quantity 4) |
| 7 | Mounting rubber (quantity 6) |
| 8 | Rear silencer - Right |
| 9 | Rear silencer - Left |
| 10 | Center section exhaust pipework |
