Left Catalytic Converter - RWD (G1817302): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

EU6C Variant shown. EU6D is similar.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Remove the front exhaust silencer.
Refer to: FRONT SILENCER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

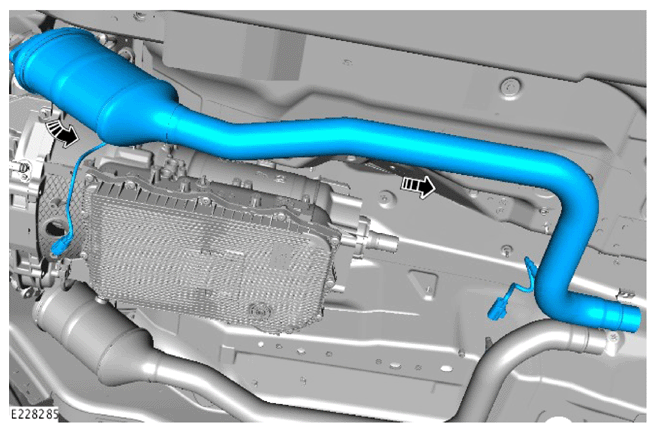

- Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.
- Release the wiring from the 2 clips.
- Remove the 2 heatshield bolts.
- Remove the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the HO2S electrical connector.
- Release the wiring from the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the catalytic converter to exhaust manifold nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the left catalytic converter.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool remove the Heated Oxygen Sensor (H02S).

Special Tool(s): 310-121
