Left Catalytic Converter - AWD (G2020245): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
- If accidentally dropped or knocked install a new Selective Catalyst Reduction (SCR)/Heated Oxygen Sensor (HO2S).
- Make sure the SCR/HO2s sensor wiring harness is not twisted more than 180 degrees and is not in contact with either the exhaust or driveshaft.
- Make sure the anti-seize compound does not contact the SCR/HO2s sensor tip.
NOTE:
- If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.
- This step is only required if previously removed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

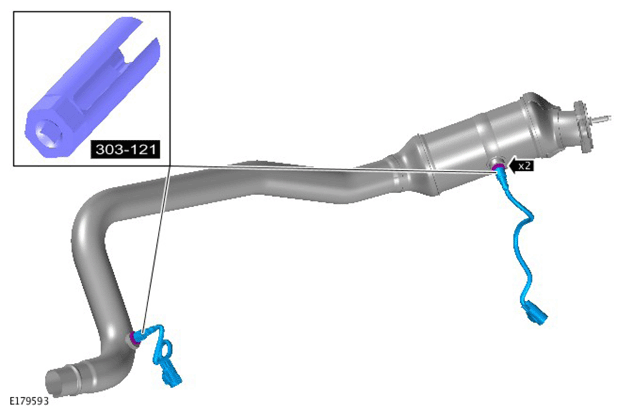

Using the special tool Install and tighten the Heated Oxygen Sensor (H02S).

Special Tool(s): 310-121

Torque : 48Nm
- Install the left catalytic converter.
- Install and tighten the 2 nuts.
Renew Part: Exhaust manifold nuts Quantity : 2.

Torque : 40Nm
- Connect the HO2S electrical connector.
- Install the wiring harness to the clip.
- Install the heatshield.
- Install and tighten the 3 bolts.
  Torque : 9Nm
- Connect the HO2S electrical connector.
- Install the wiring harness to the 2 clips.
Install the front silencer.
Refer to: FRONT SILENCER
Install the air deflector.
Refer to: ENGINE UNDERSHIELD
