Front Silencer (G1818085): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Do not do the following step(s) if a new component is to be installed.

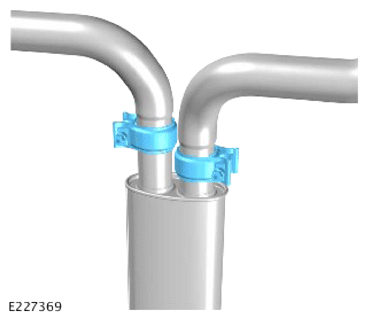

    G13913346Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 new clamps.

    Renew Part: Exhaust clamp Quantity  : 2.

    • Install the 2 new clamps.

      Renew Part: Exhaust clamp Quantity  : 2.

    • Install and secure the front silencer with the 2 mounting rubbers.
    • Secure the 2 clamps.

      Torque  : 55Nm

    • Install the center body support.
    • Install and tighten the 4 bolts.

      Torque  : 30Nm
