Variable Camshaft Timing Actuator (G2320257): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Maintain tension on the chain to prevent the coloured link from disengaging with its sprocket position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new upper timing chain guide.
Renew Part Upper timing chain guide Quantity: 1 .
- Install and tighten the bolt.
Renew Part Left side timing chain guide bolt Quantity: 1 .

Torque: 25 Nm
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the intake camshaft VCT unit. Make sure that the correct VCT unit is installed as noted in the removal steps.
- Make sure that the camshaft pin is correctly seated in the VCT unit as illustrated.
- Install and tighten the new VCT unit center bolt.
Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

Torque

Stage 1:10 Nm

Stage 2: Loosen 90 °
- Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT unit as illustrated.
NOTE: Maintain tension on the chain to prevent the coloured link from disengaging with its sprocket position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new upper timing chain guide.

Renew Part Upper timing chain guide Quantity: 1 .
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the exhaust camshaft VCT unit. Make sure that the correct VCT unit is installed as noted in the removal steps.
- Make sure that the camshaft pin is correctly seated in the VCT unit as illustrated.
- Install and tighten a new VCT unit center bolt.
Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

Torque

Stage 1:10 Nm

Stage 2: Loosen 90 °
- Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT unit as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

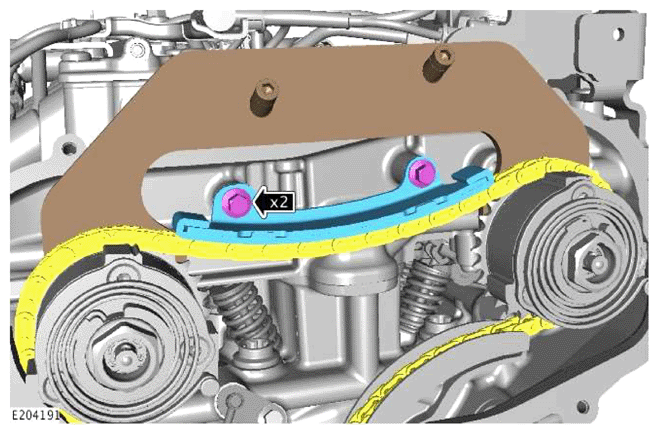

Install a new upper timing chain guide.

Renew Part Upper timing chain guide Quantity: 1 .
- Install and tighten the 2 bolts.
Renew Part: Upper timing chain upper guide bolt Quantity: 2 .

Torque: 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Before installing the new timing chain tensioner, make sure that the ratchet clip is on the first groove.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool as illustrated.

Special Tool(s): JLR-303-1636

Torque: 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the new upper timing chain tensioner.

Renew Part Upper timing chain tensioner Quantity: 1 .

Torque: 55 Nm
CAUTION:
- Do not directly touch the timing chain tensioner at this stage.
- Make sure the timing chain tensioner is fully deployed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

To correctly deploy the timing chain tensioner, push the timing chain guide against timing chain tensioner in the position illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the VCT bolts.

Torque

Stage 1: 25 Nm

Stage 2: 60 °
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1636
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1635
Install the upper timing cover.
Refer to: UPPER TIMING COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1630
NOTE: This step is to make sure that the timing components are properly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool JLR-303-1656 crankshaft pulley locking tool to rotate the crankshaft 2 times clockwise.

Special Tool(s): JLR-303-1656
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the charge air radiator bracket and tighten the retaining bolts to the correct torque.

Torque: 47 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 5 retaining clips.
Install the charge air cooler.
Refer to: CHARGE AIR COOLER
Install the hood.
Refer to: HOOD
Connect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
