Upper Timing Chain (G2030609): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the hood.
Refer to: HOOD
Remove the upper timing cover.
Refer to: UPPER TIMING COVER
Remove the charge air radiator.
Refer to: CHARGE AIR COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 fir tree clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

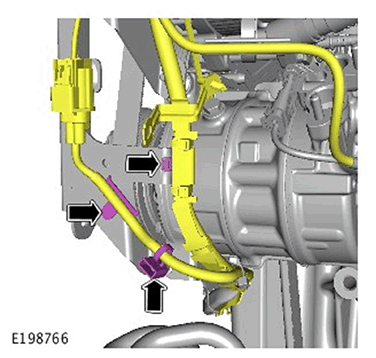

Release the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the charge air radiator bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool JLR-303-1656 as illustrated.
Special Tool(s): JLR-303-1656
- Use the special tool JLR-303-1656 to rotate the crankshaft until the timing marks align as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The crankshaft pulley has a timing mark that must align to the corresponding timing feature on the front cover assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool JLR-303-1635 as illustrated.
Special Tool(s): JLR-303-1635
- Install and tighten the 2 special tool bolts.
Torque: 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

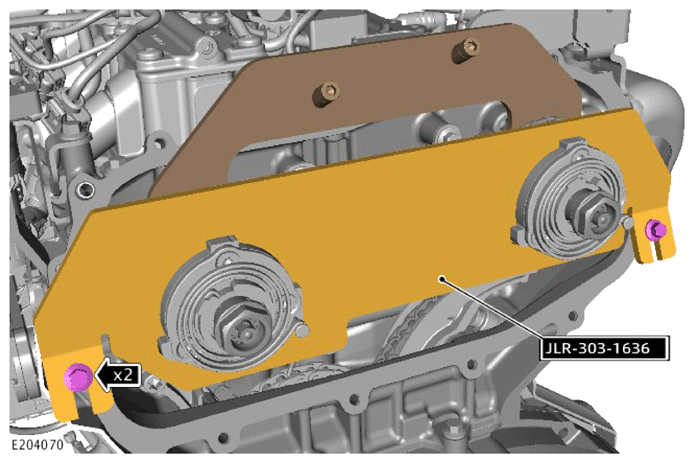

- Install the special tool JLR-303-1636 as illustrated.
Special Tool(s): JLR-303-1636
- Install and tighten the 2 special tool bolts.
Torque: 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool JLR-303-1630 to lock the crankshaft.

Special Tool(s): JLR-303-1630
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Loosen but do not fully remove the Variable Camshaft Timing (VCT) bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the upper timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 special tool bolts.
- Remove the special tool JLR-303-1636.
Special Tool(s): JLR-303-1636
CAUTION: Note the location of the VCT units prior to removal. Each VCT unit is matched to a specific camshaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

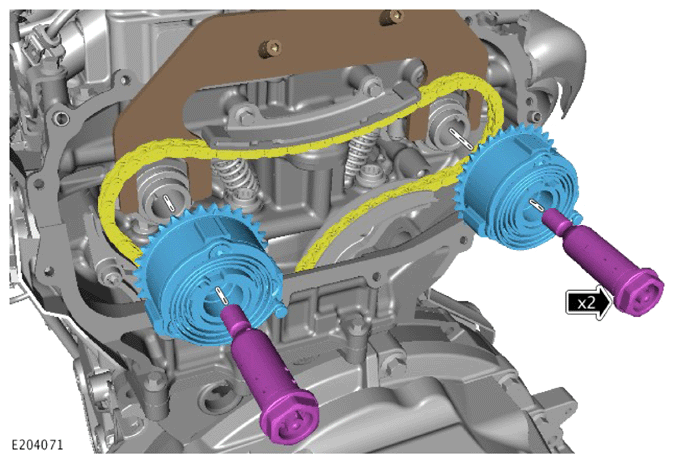

- Remove and discard the 2 VCT unit center bolts.
- Remove the 2 VCT units.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 2 bolts.
- Remove and discard the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Remove and discard the left timing chain guide.
- Remove and discard the timing chain tensioner guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the timing chain from the idler sprocket and remove.
