Lower Timing Cover (G1998105): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that the mating faces are clean and free of foreign material.

NOTE: The lower cover must be installed within 7 minutes of the sealant application.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply a 3 mm diameter continuous bead of sealant to the area shown.

Refer to: SPECIFICATIONS
CAUTION: Take care not to damage the cylinder head gasket when installing the lower timing cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the lower timing cover.
- Make sure the locating dowels are installed correctly.
- Install the 2 bolts to allow the dowels to be pushed into the correct position.
Torque: 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

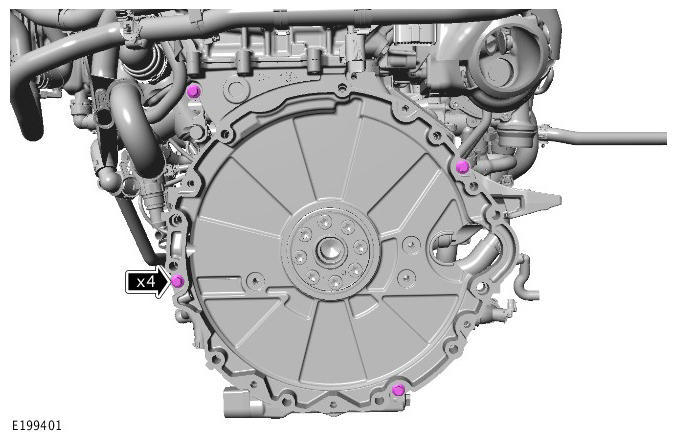

- Install 2 more bolts as illustrated and tighten the 4 bolts.
Torque: 10 Nm
- Release the 4 lower timing cover bolts by a quarter of a turn.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

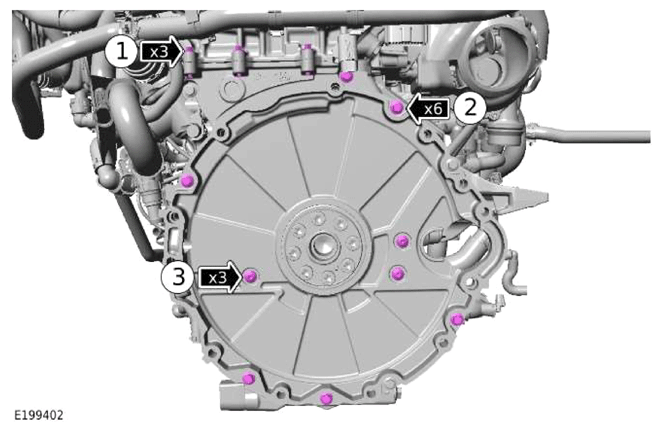

- Install the remaining 12 bolts and tighten in the sequence illustrated.
- (1) Install and tighten the 3 upper M6 x 30 bolts.
Torque: 12 Nm
- (2) Install and tighten the 6 M8 x 35 bolts.
Torque: 25 Nm
- (3) Install and tighten the 3 M8x 30 Torx bolts.
Torque: 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the 4 bolts.

Torque: 25 Nm
Install the CKP .
Torque: 8 Nm
Install the coolant pipe bracket.
Install the rear crankshaft oil seal.
Refer to: CRANKSHAFT REAR SEAL
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Lower the vehicle.
