Lower Timing Chain (G2132026): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new timing chain onto the new idler sprocket.
  Renew Part: Lower timing chain Quantity: 1 .

  Renew Part: Timing chain idler sprocket Quantity: 1 .
- Make sure that the coloured link is aligned as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new lower timing chain and the new idler sprocket
- Install and tighten the new bolt.
  Renew Part: Timing chain idler sprocket bolt Quantity: 1 .

  Torque : 35 Nm
- Make sure that the timing marks are aligned as illustrated in step 3.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Make sure that the timing marks are aligned as illustrated
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new lower timing chain guide.
  Renew Part: Lower timing chain guide Quantity: 1 .
- Install the 2 new bolts.
  Renew Part: Timing chain guide bolt Quantity: 2 .

  Torque : 25 Nm
- Make sure that the timing marks remain aligned as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new timing chain tensioner guide.
  Renew Part: Lower timing chain guide Quantity: 1 .
- Install and tighten the new bolt.
  Renew Part: Lower timing chain lower guide pivot bolt Quantity: 1 .

  Torque : 11 Nm
CAUTION: Make sure that a new lower timing chain tensioner is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new lower timing chain tensioner.
  Renew Part: Lower timing chain tensioner Quantity: 1 .
- Install and tighten the 2 bolts.
  Renew Part: Timing chain tensioner bolt Quantity: 2 .

  Torque : 11 Nm
CAUTION: Make sure that the timing chain tensioner is fully deployed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the lower timing chain tensioner piston.
NOTE: Maintain tension on the chain to prevent the coloured link from disengaging with its sprocket position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the upper timing chain.
- Make sure that the coloured link is aligned as illustrated.
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new left upper timing chain guide.
  Renew Part: Upper timing chain guide Quantity: 1 .
- Install and tighten the bolt.
  Renew Part: Left side timing chain guide bolt Quantity: 1 .

  Torque : 25 Nm
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the intake camshaft VCT unit. Make sure that the correct VCT unit is installed as noted in the removal steps.
- Make sure that the camshaft pin is correctly seated in the VCT unit as illustrated.
- Install and tighten a new VCT unit center bolt.
  Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

  Torque

  Stage 1: 10 Nm

  Stage 2: Loosen 90°
- Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT unit as illustrated.
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new upper timing chain tensioner arm.

Renew Part: Timing chain tensioner arm Quantity: 1 .
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the exhaust camshaft VCT unit. Make sure that the correct VCT unit is installed as noted in the removal steps.
- Make sure that the camshaft pin is correctly seated in the VCT unit as illustrated.
- Install and tighten a new VCT unit center bolt.
  Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

  Torque

  Stage 1: 10 Nm

  Stage 2: Loosen 90°
- Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT unit as illustrated.
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new upper timing chain guide.
  Renew Part: Upper timing chain guide Quantity: 1 .
- Install and tighten the 2 bolts.
  Renew Part: Upper timing chain upper guide bolt Quantity: 2 .

  Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool JLR-303-1636.
  Special Tool(s) : JLR-303-1636
- Install and tighten the 2 special tool bolts.
  Torque : 13 Nm
CAUTION: Make sure that a new upper timing chain tensioner is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the new timing chain tensioner.

Renew Part: Upper timing chain tensioner Quantity: 1 .

Torque : 55 Nm
CAUTION: Make sure that the timing chain tensioner piston is fully deployed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the secondary timing chain tensioner piston.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Fully tighten the VCT bolts.
  Torque

  Stage 1: 25 Nm

  Stage 2: 60°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

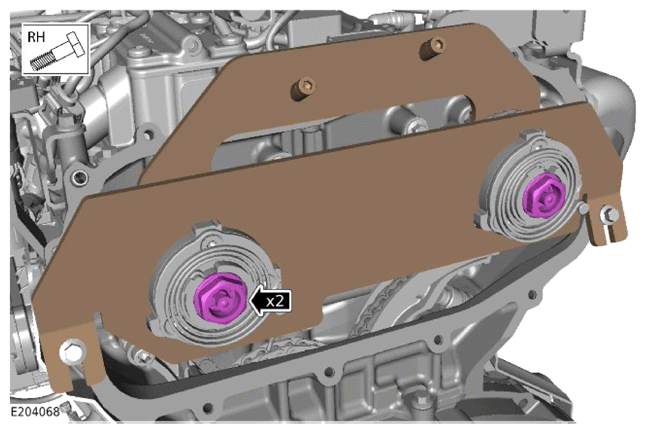

- Remove the 2 special tool bolts.
- Remove the special tool JLR-303-1636.
  Special Tool(s) : JLR-303-1636
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 special tool bolts.
- Remove the special tool JLR-303-1635.
  Special Tool(s) : JLR-303-1635
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool JLR-303-1630.

Special Tool(s) : JLR-303-1630
NOTE: This step is to make sure that the timing components are properly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool JLR-303-1656 to rotate the crankshaft 2 times clockwise.

Special Tool(s) : JLR-303-1656
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the charge air radiator bracket.
- Torque : 47 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

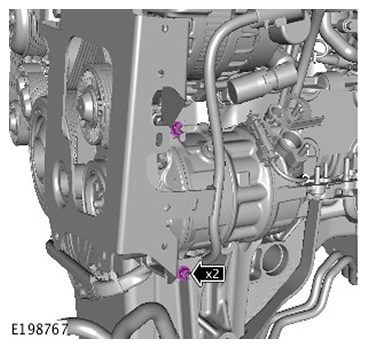

- Install the 2 nuts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

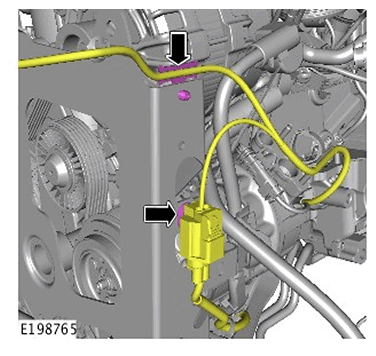

Install the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 fir tree clips.
Install the charge air radiator.
Refer to: CHARGE AIR COOLER
Install the lower timing cover.
Refer to: LOWER TIMING COVER
Install the upper timing cover.
Refer to: UPPER TIMING COVER
Connect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Install the hood.
Refer to: HOOD
