Intake Camshaft (G2029692): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle.

    Refer to: LIFTING

  3. Remove the upper timing chain.

    Refer to: UPPER TIMING CHAIN

  4. Remove the Continuous Variable Valve Lift (CVVL) assembly.

    Refer to: CONTINUOUS VARIABLE VALVE LIFT

  5. Remove the fuel injectors.

    Refer to: FUEL INJECTORS

  6. Remove the engine vent oil separator assembly.

    Refer to: VALVE COVER VENT OIL SEPARATOR

  7. Remove the purge valve assembly.

    Refer to: EVAPORATIVE EMISSION CANISTER PURGE VALVE

  8. Remove the High Pressure (HP) fuel pump.

    Refer to: HIGH PRESSURE FUEL PUMP

  9. Remove the accessory drive belt.

    Refer to: ACCESSORY DRIVE BELT

  10. G11306872Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 8 electrical connectors.
    • Remove the 2 retaining bolts.
    • Release the wiring harness and reposition away from the valve cover assembly.
  11. G11306862Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 engine cover support mounts.

  12. G11306863Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 retaining nuts and reposition the engine coolant bypass hose away from the valve cover assembly.

  13. G11306864Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 19 bolts.
    • Remove the valve cover assembly.
  14. G11306865Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the valve cover gasket.

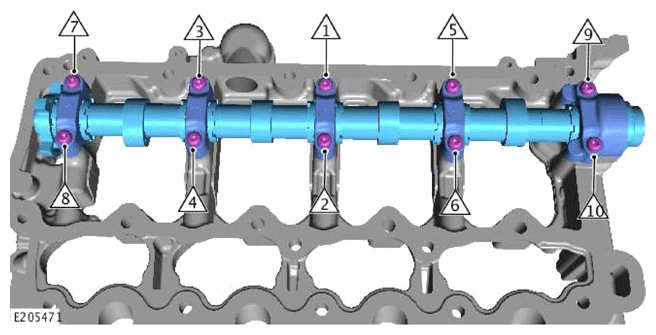

  15. G13883422Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    NOTE: Note the orientation of the component prior to removal.

    Release the 10 camshaft bearing cap bolts evenly 1 turn at a time.

    • Remove the inlet camshaft.
    • Inspect the components and renew if damaged or worn.
