Engine Front Cover (G2046459): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the accessory drive belt idler pulleys.
CAUTION: Make sure that the special tool is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

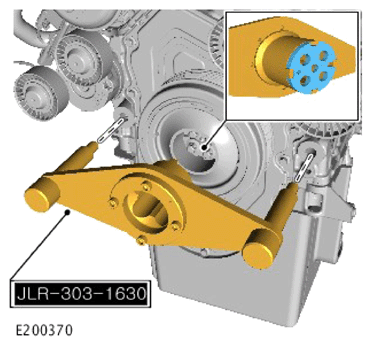

Install the special tool onto the crankshaft pulley.

Special Tool(s): JLR-303-1630
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 4 crankshaft pulley retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

72

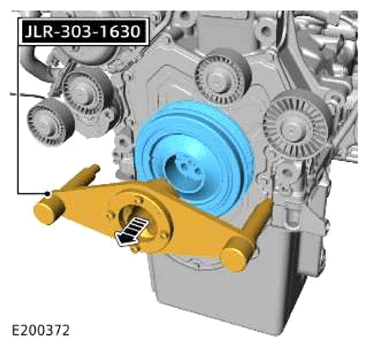

- Remove the crankshaft pulley special tool.
  Special Tool(s): JLR-303-1630
- Remove the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 12 bolts.
- Remove the engine front cover.
