Block Heater (G1889840): Installation
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

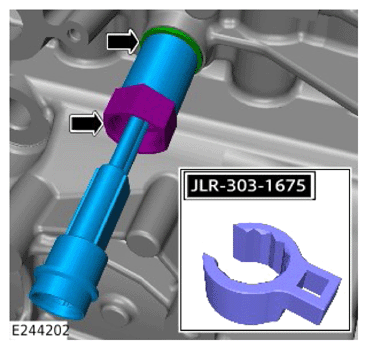

- Install the gasket.
- Use the special tool to install and tighten the block heater.
Special Tool(s): JLR-303-1675
Torque : 55Nm
- Connect the electrical connector to the block heater.
- Install the thermostat.
Refer to: THERMOSTAT
- Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
