Torque specification
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers with a green background are a single use components.
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION

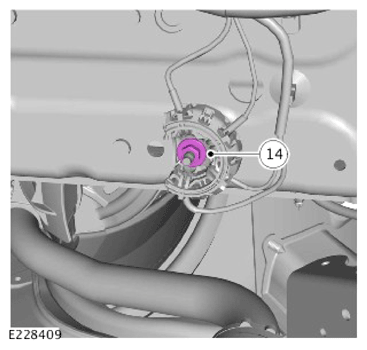

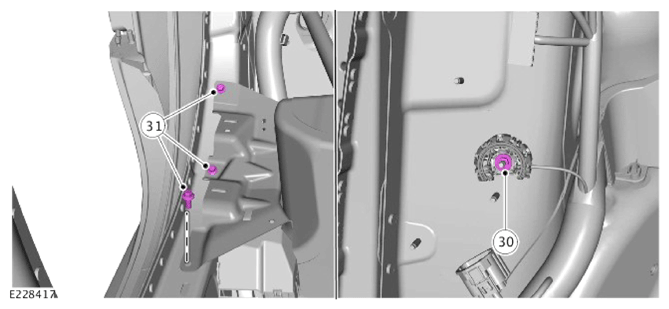

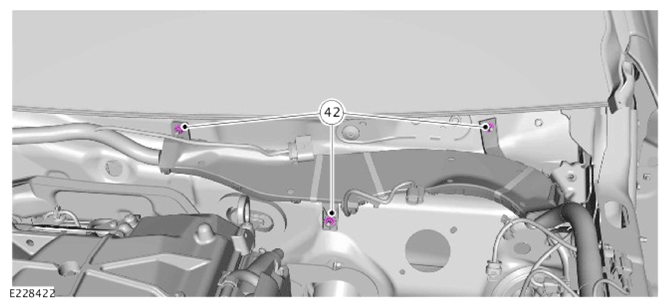

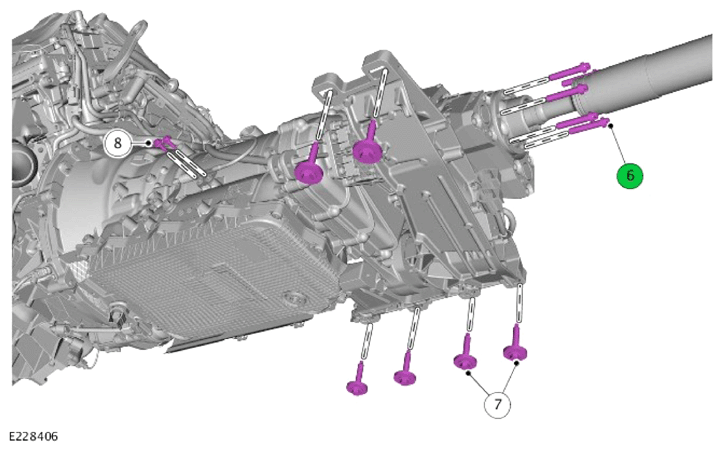

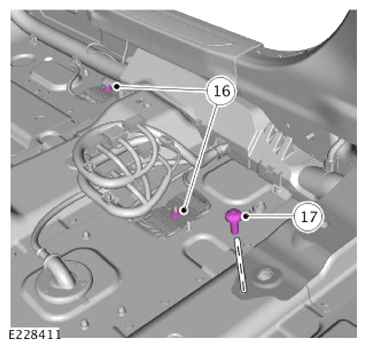

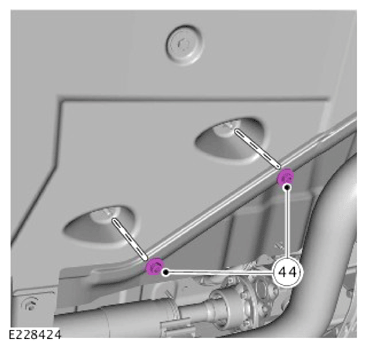

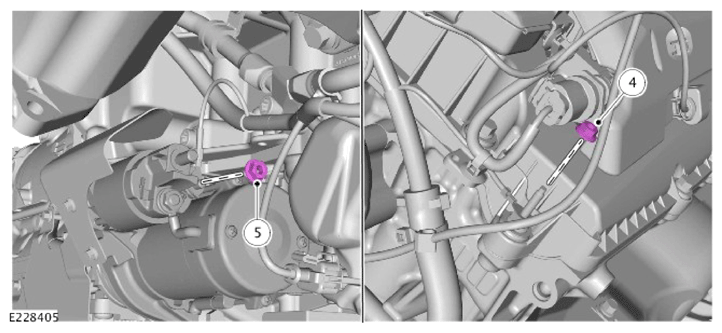

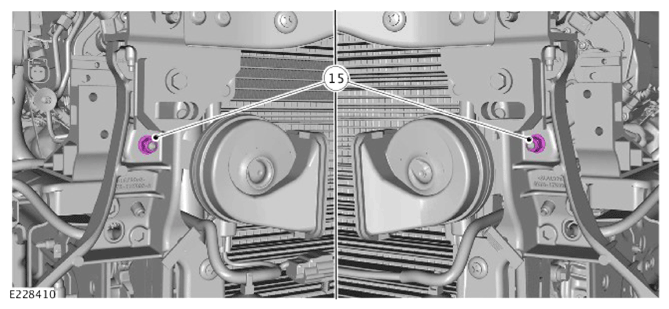

| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

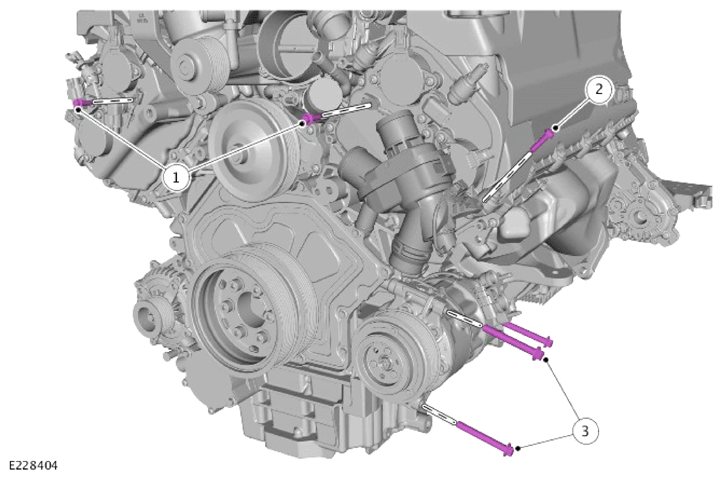

| 1 | Engine front ground cable bolt | 10 | 7.3 | - |
| 2 | Thermostat housing bolt | 10 | 7.3 | - |
| 3 | Air Conditioning (A/C) compressor bolt | 25 | 18.4 | - |
| 4 | Engine rear ground cable nut | 10 | 7.3 | - |
| 5 | Starter cable nut | 7 | - | 61.9 |
| 6 | Rear driveshaft to transfer case flange bolt | 75 | 55.3 | - |
| 7 | Transmission mounting bolt | 48 | 35.4 | - |
| 8 | Gear selector lever arm bracket bolt | 11 | 8.1 | - |

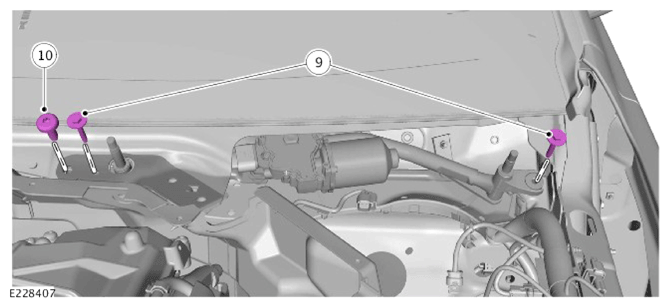

| 9 | Windshield wiper motor screw | 12 | 8.8 | - |
| 10 | Cowl bracket bolt | 55 | 40.5 | - |

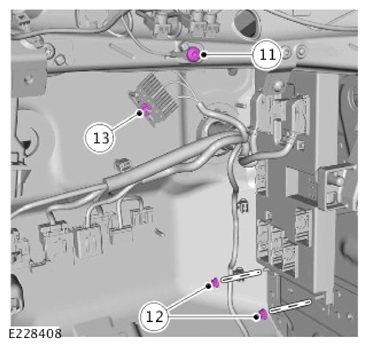

| 11 | Cross-car beam right side ground cable bolt | 10 | 7.3 | - |
| 12 | Body Control Module (BCM) nut | 10 | 7.3 | - |
| 13 | Bulkhead right ground cable nut | 10 | 7.3 | - |
| 14 | Front left side member ground cable nut | 10 | 7.3 | - |
| 15 | Horn retaining nut | 15 | 11.6 | - |
| 16 | Floor right side ground cable nut | 10 | 7.3 | - |
| 17 | Right reinforcement bracket bolt | 10 | 7.3 | - |

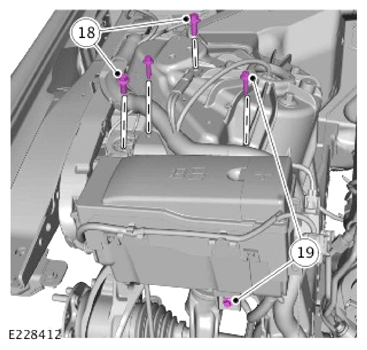

| 18 | Front suspension mounting ground cable bolt | 10 | 7.3 | - |
| 19 | Front Engine Junction Box (EJB) bolt | 10 | 7.3 | - |

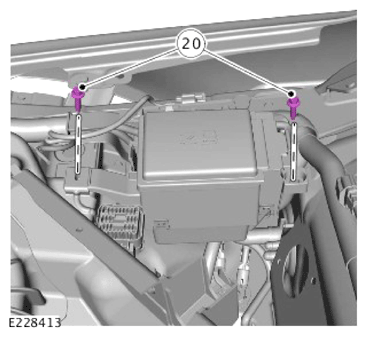

| 20 | Rear EJB bolt | 10 | 7.3 | - |
| 21 | Navigation Control Module (NCM) tray ground cable nut | 10 | 7.3 | - |
| 22 | NCM tray ground cable screw | 10 | 7.3 | - |

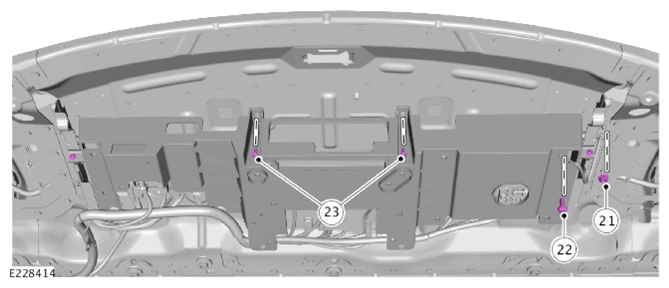

| 23 | NCM tray screw | 10 | 7.3 | - |

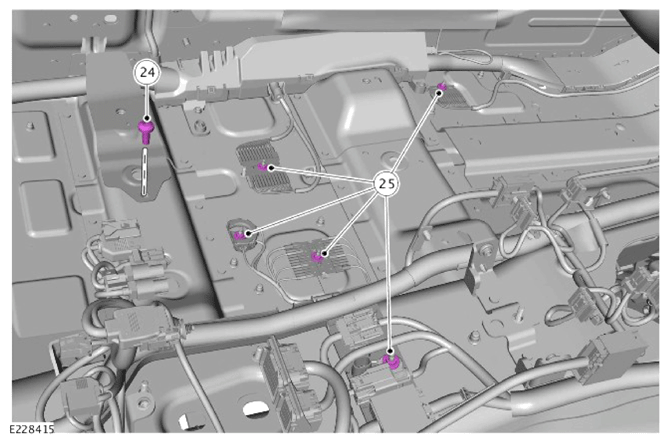

| 24 | Left reinforcement bracket bolt | 10 | 7.3 | - |
| 25 | Floor left side ground cable nut | 10 | 7.3 | - |

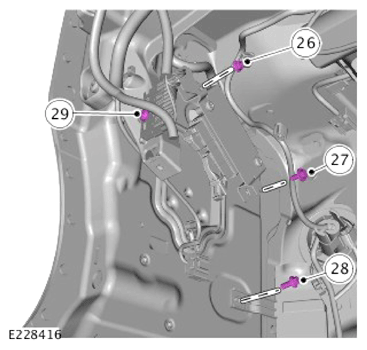

| 26 | Parking Assist Control Module (PAM) bracket nut | 10 | 7.3 | - |
| 27 | PAM bracket screw | 10 | 7.3 | - |
| 28 | Left A-pillar wiring harness bracket bolt | 10 | 7.3 | - |
| 29 | Cross-car beam left side ground cable bolt | 10 | 7.3 | - |
| 30 | Right C-pillar ground cable nut | 10 | 7.3 | - |
| 31 | C-pillar lower bracket bolt | 10 | 7.3 | - |

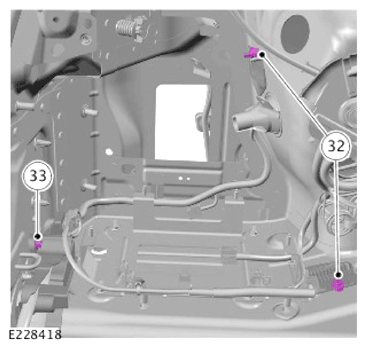

| 32 | Luggage compartment left side ground cable nut | 10 | 7.3 | - |
| 33 | Luggage compartment left side wiring harness bracket nut | 10 | 7.3 | - |

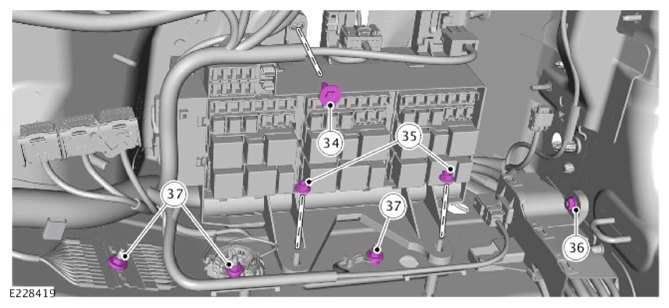

| 34 | Luggage compartment junction box screw | 10 | 7.3 | - |
| 35 | Luggage compartment junction box nut | 10 | 7.3 | - |
| 36 | Luggage compartment right side wiring harness bracket nut | 10 | 7.3 | - |
| 37 | Luggage compartment right side ground cable nut | 10 | 7.3 | - |

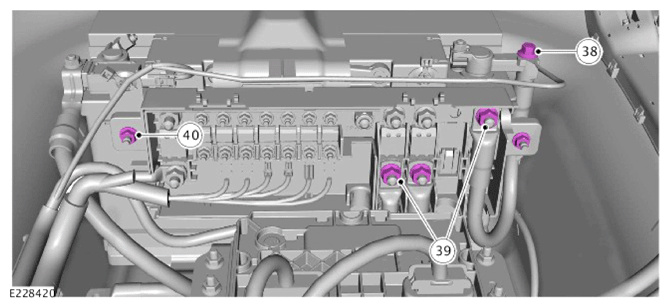

| 38 | Startup battery positive clamp bolt | 10 | 7.3 | - |
| 39 | Positive cable nut | 10 | 7.3 | - |
| 40 | Battery Junction Box (BJB) nut | 10 | 7.3 | - |

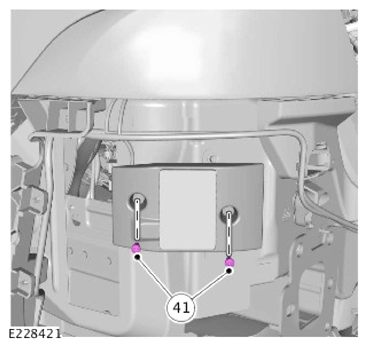

| 41 | Blindspot sensor bracket screw | 10 | 7.3 | - |
| 42 | Bulkhead wiring harness bracket nut | 10 | 7.3 | - |

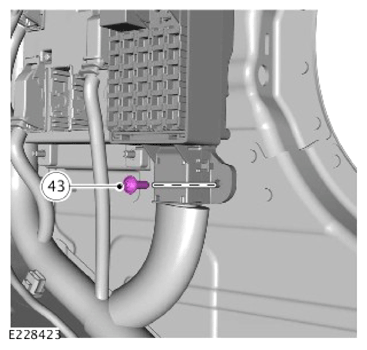

| 43 | Passenger Junction Box (PJB) screw | 10 | 7.3 | - |
| 44 | Undershield nut | 10 | 7.3 | - |

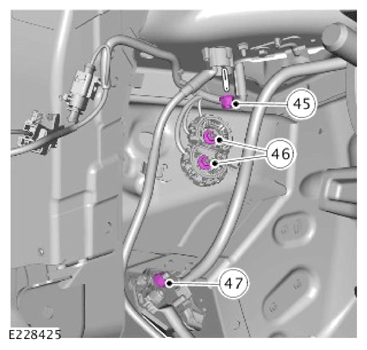

| 45 | Starter cable nut | 10 | 7.3 | - |
| 46 | Front right ground cable nut | 10 | 7.3 | - |
| 47 | Inter cable nut | 10 | 7.3 | - |

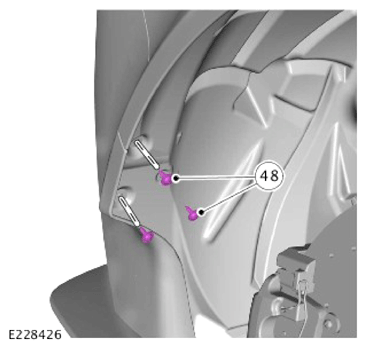

| 48 | Rear wheel arch liner screw | 10 | 7.3 | - |
