Main Wiring Harness (G1862905): Removal
- Make sure that the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.
- Take extra care not to damage the wiring harness clips.
- Note the installed position of the component(s) prior to removal.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
The following step(s) applies to:
All vehicles
- Make the air bag supplemental restraint system (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the thermostatic expansion valve.
Refer to: THERMOSTATIC EXPANSION VALVE
- Remove the headliner
Refer to: HEADLINER
-
NOTE: Repeat this step for the other side.
Remove the b-pillar lower trim panel.
Refer to: B-PILLAR LOWER TRIM PANEL
-
NOTE: Repeat this step for the other side.
Remove the a-pillar lower trim panel.
Refer to: A-PILLAR LOWER TRIM PANEL
-
NOTE: Repeat this step for the other side.
Remove the front row seat.
Refer to: FRONT ROW SEAT
- Remove the rear seat backrest cover.
Refer to: REAR SEAT BACKREST COVER
- Remove the luggage compartment treadplate.
Refer to: LUGGAGE COMPARTMENT TREADPLATE
- Remove the parcel shelf.
Refer to: PARCEL SHELF
- Remove the rear bumper.
Refer to: REAR BUMPER
- Remove the rear lamp assembly.
Refer to: REAR LAMP ASSEMBLY

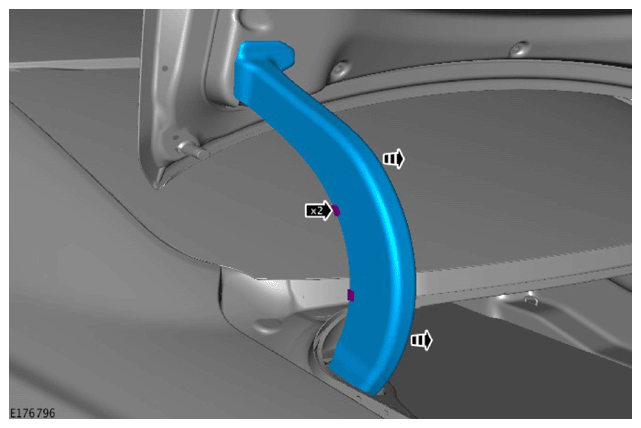

- Remove the luggage compartment lid trim panel.
Refer to: LUGGAGE COMPARTMENT LID TRIM PANEL
-
NOTE: Repeat the step for the other side.

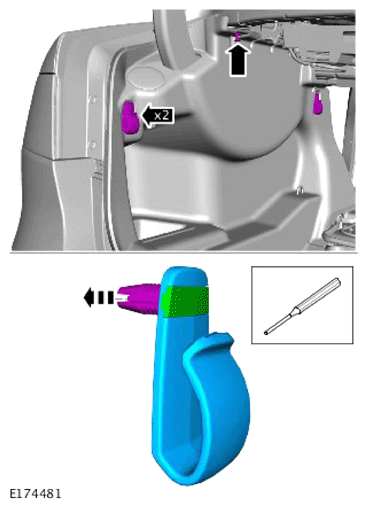

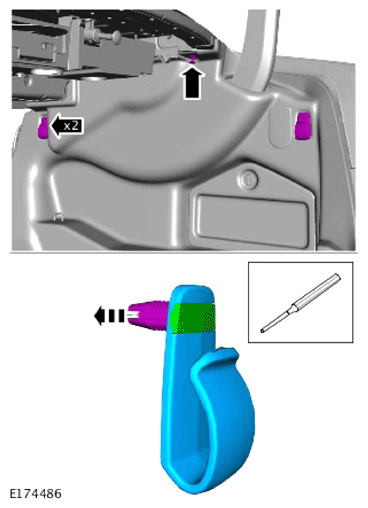

- Release the 2 clips.
- Remove the cover.
Remove the loadspace trim.
-
NOTE: If equipped.

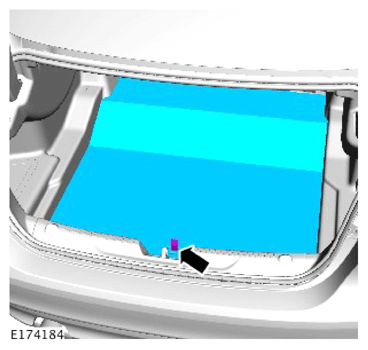

- Remove the bolt.
- Remove the clip.

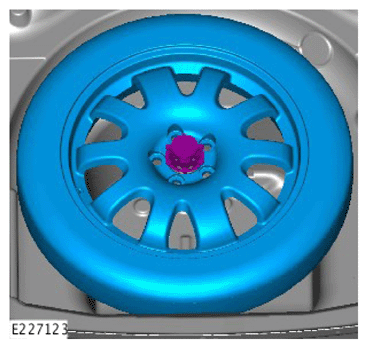

- Remove the spare wheel.
-
NOTE: If equipped.

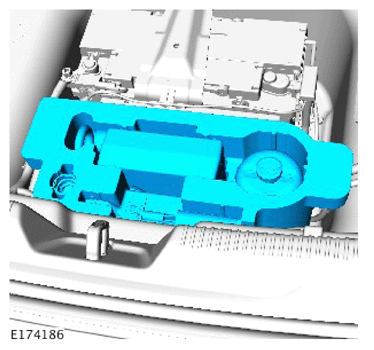

Remove the tire repair kit.
-
NOTE:
- Repeat the step for the other side.
- Left side shown, right side is similar.

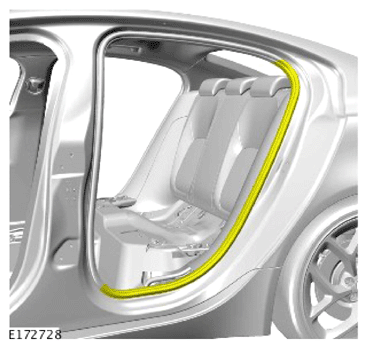

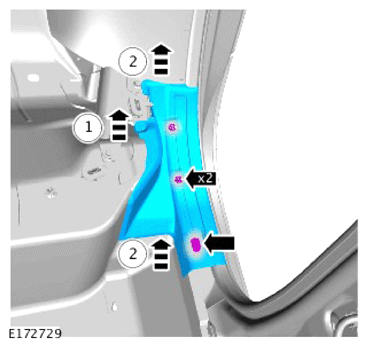

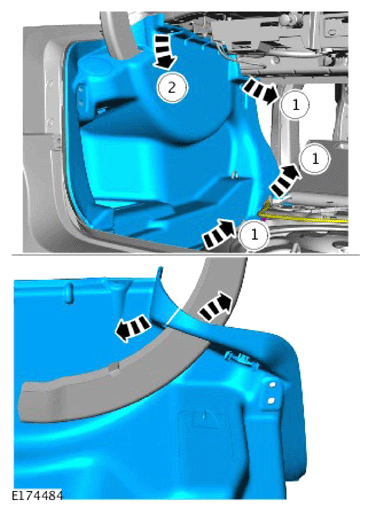

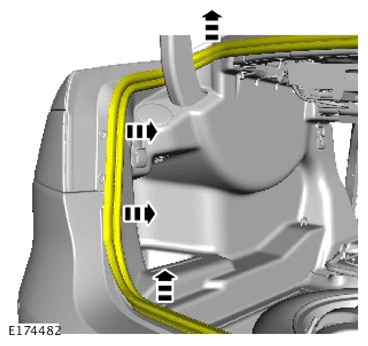

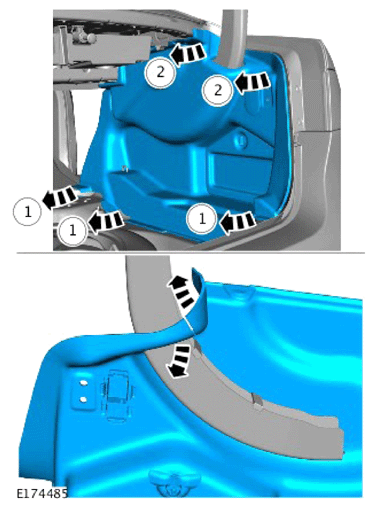

Move the weatherstrip away from the body.
Release the 3 right side loadspace clips.
Remove the right side loadspace trim.
Release the 3 left side loadspace clips.
Remove the left side loadspace trim.

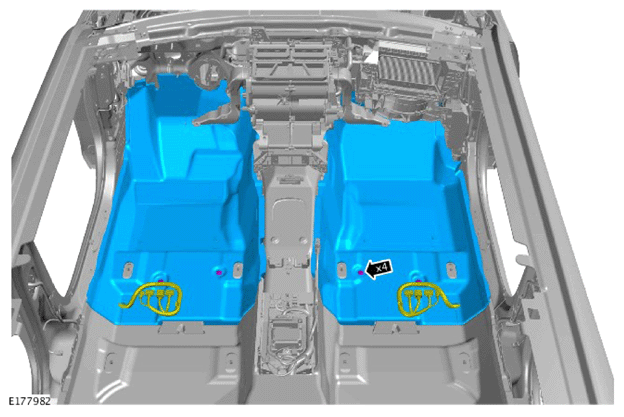

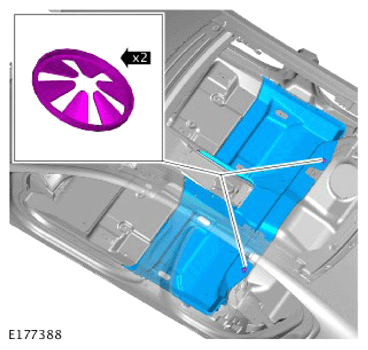

- Release the 4 clips.
- Remove the 2 floor carpets.
-
NOTE:
- Repeat the step for the other side.
- Left illustration shown, right is similar.

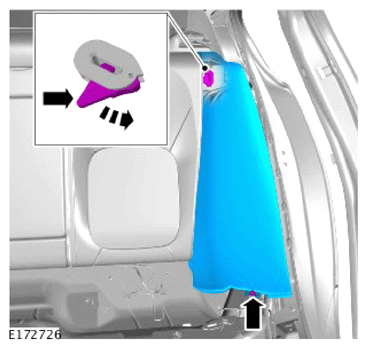

- Release the 3 clips.
- Remove the trim.
-
NOTE:
- Repeat the step for the other side.
- Left illustration shown, right is similar.
Move the weatherstrip away from the body.
-
NOTE:
- Repeat the step for the other side.
- Left illustration shown, right is similar.
- Release the clip.
- Remove the bolt.
- Remove the trim.
- Release the 2 clips.
- Remove the carpet.
-
NOTE:
- Repeat the step for the other side.
- Right illustration shown, left is similar.

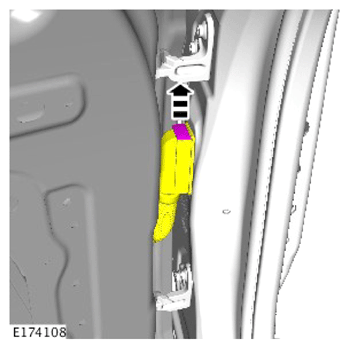

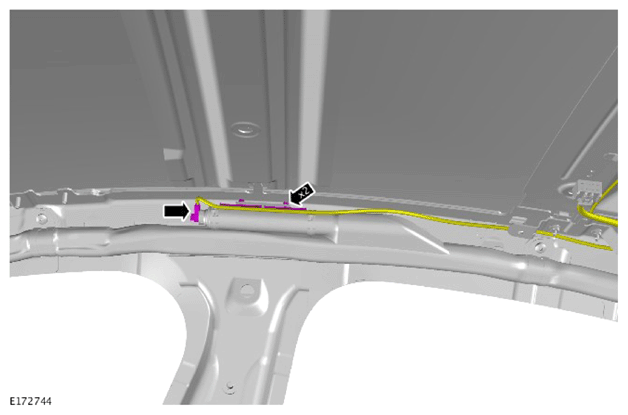

- Disconnect the electrical connector.
- Release the 2 clips.
-
NOTE: Repeat this step for the other side.
- Disconnect the front door wiring harness.

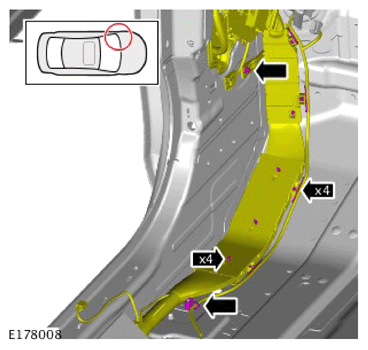

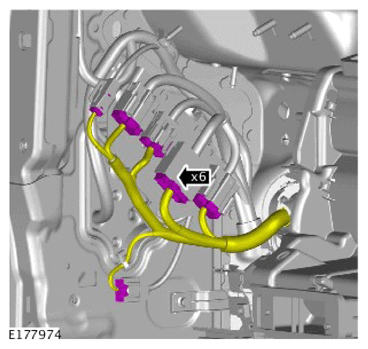

Disconnect the 6 electrical connectors.
Release the 4 clips.
- Remove the bolt.
- Remove the nut.
- Remove the park assist module.

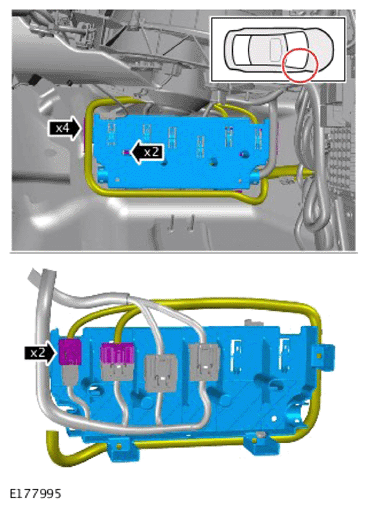

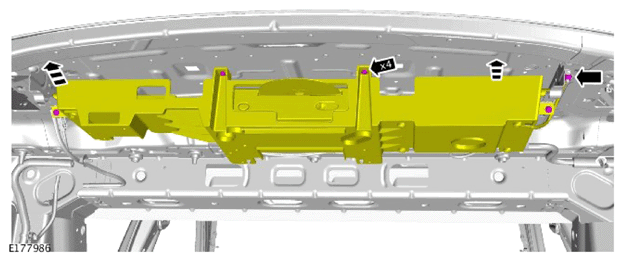

- Remove the bolt.
- Release the 5 clips.
- Release the bracket from the 4 studs.
- Remove the 2 screws.
- Release the clip.

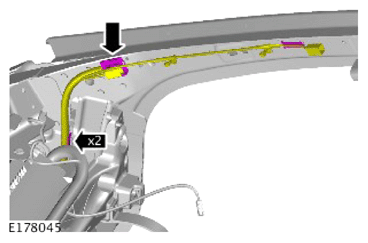

- Disconnect the 2 electrical connectors.

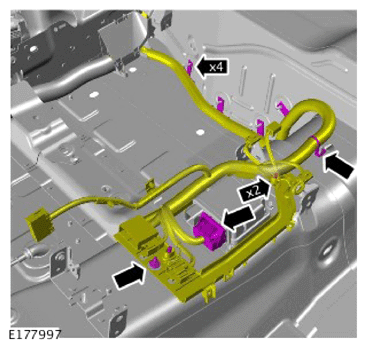

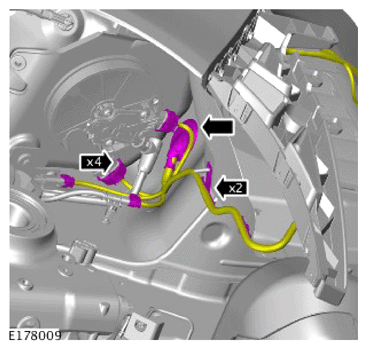

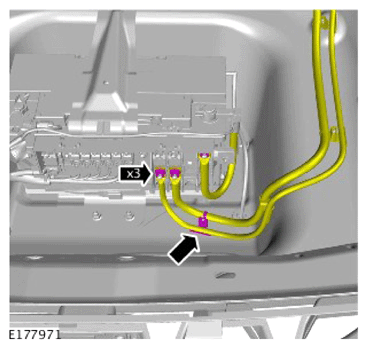

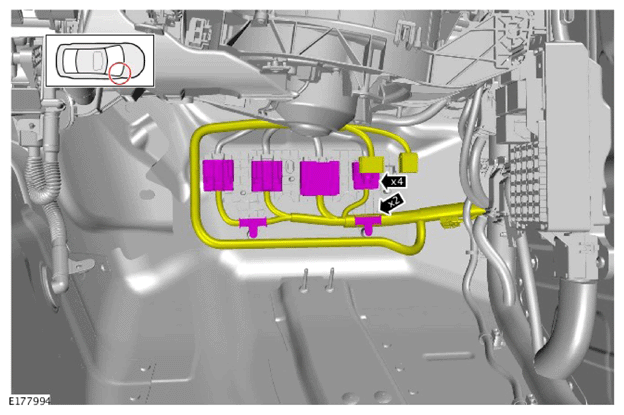

- Disconnect the 4 electrical connectors.
- Release the 2 clips.

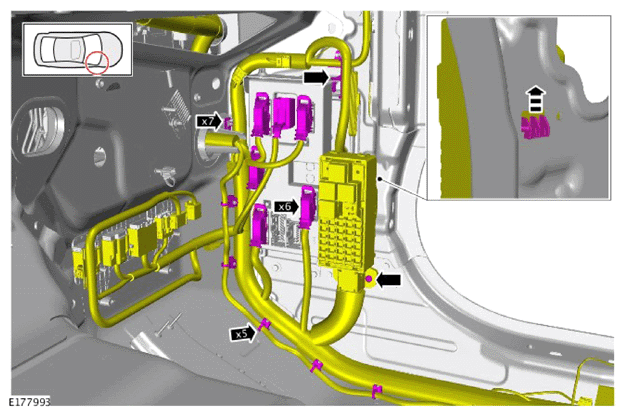

- Release the 13 clips.

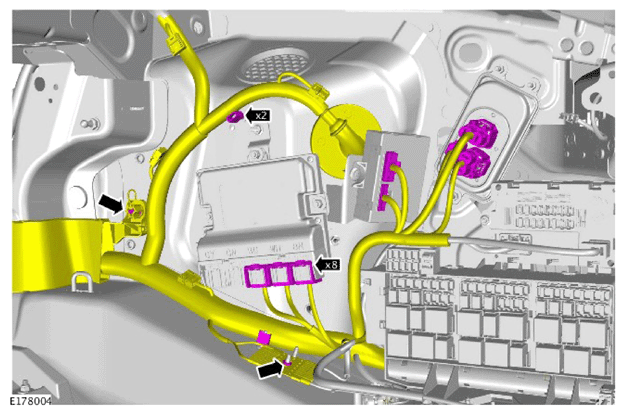

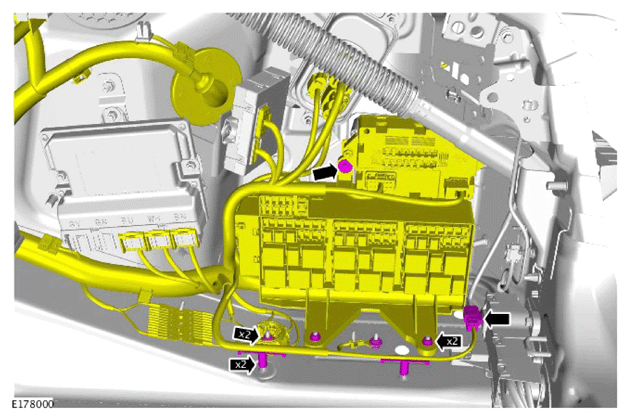

- Disconnect the 6 electrical connectors.
- Release the wiring harness from the clip.

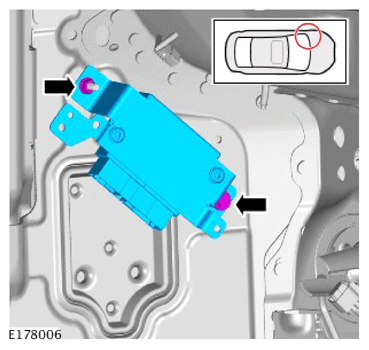

- Remove the 2 nuts.

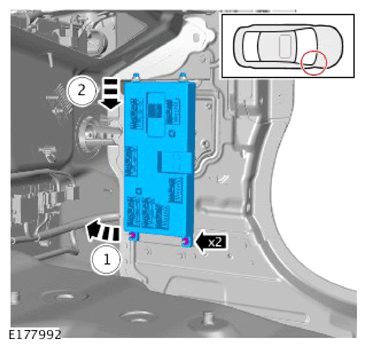

- Remove the body control module.
-
NOTE:
- Repeat this step for the other side.
- Left illustration shown, right is similar.

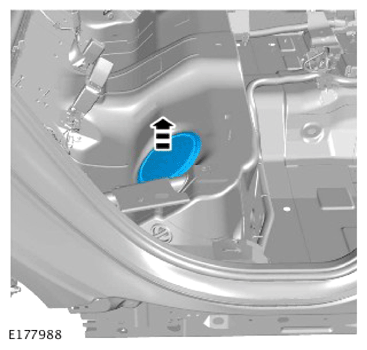

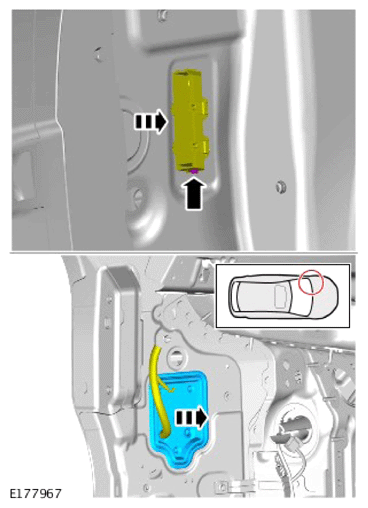

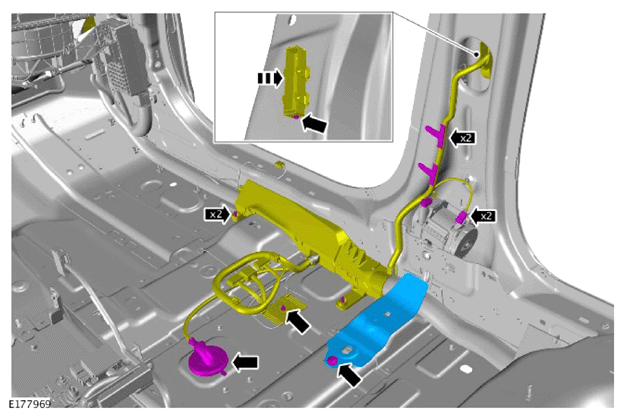

- Release the clip.
- Remove the grommet.
-
NOTE: Left illustration shown, right is similar.
Disconnect the rear door wiring harness.
- Remove the bolt.
- Remove the nut.
- Remove the bracket.

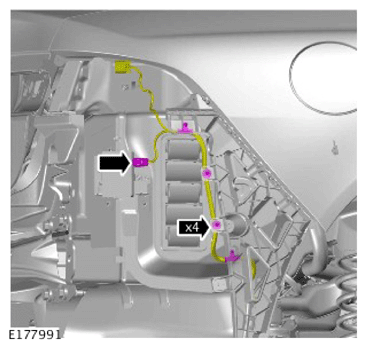

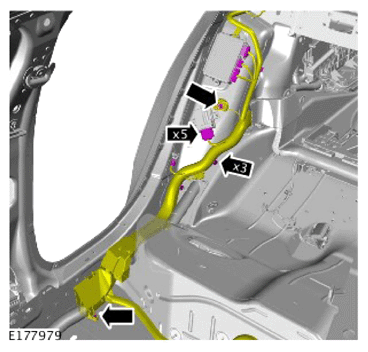

- Disconnect the electrical connector.
- Release the 3 clips.
- Reposition the wiring harness as illustrated.
- Disconnect the electrical connector.
- Remove the nut.
- Release the 5 clips.
- Raise the vehicle.
-
NOTE: If equipped.

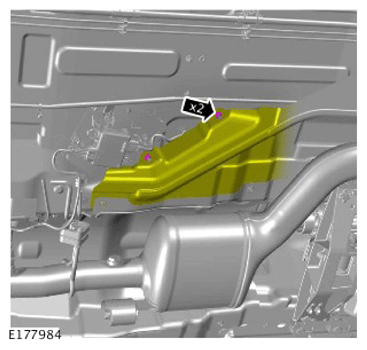

Remove the 2 nuts.
-
NOTE: If equipped.

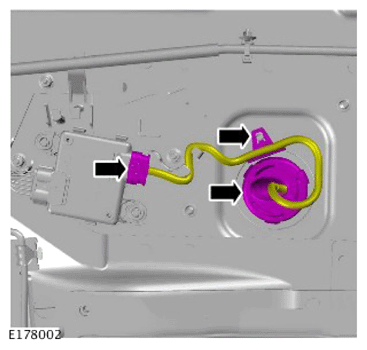

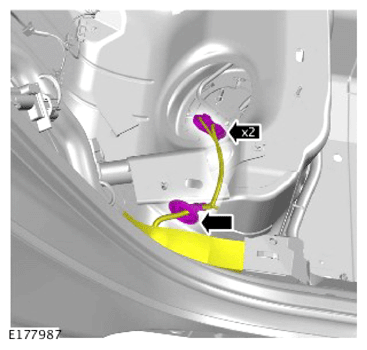

- Disconnect the electrical connector.
- Release the clip.
- Release the grommet.
-
NOTE: If equipped.

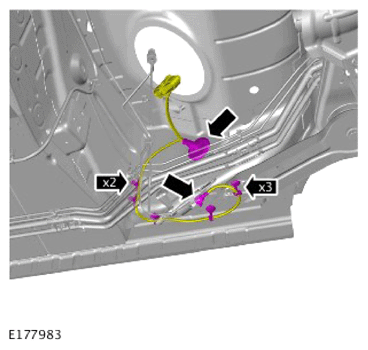

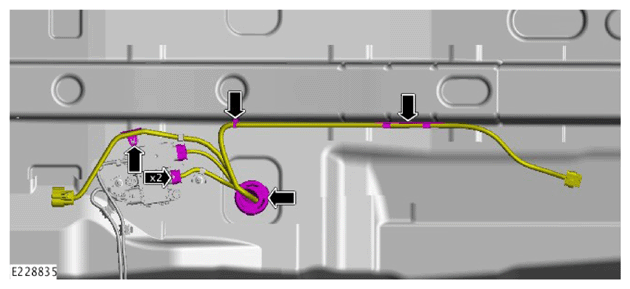

- Disconnect the 2 electrical connectors.
- Release the 3 clips.
- Release the grommet.
- Remove the bolt.
Torque : 10Nm
- Remove the nut.
Torque : 10Nm
- Remove the bracket.
- Release the 3 clips.

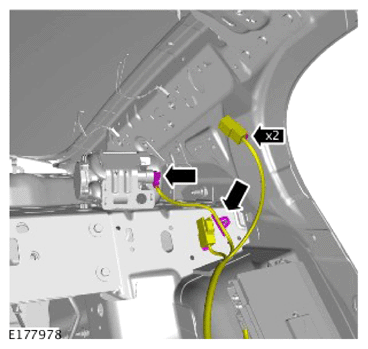

- Disconnect the 2 electrical connectors.
- Release the grommet.
- Release the wiring harness from the 2 studs.

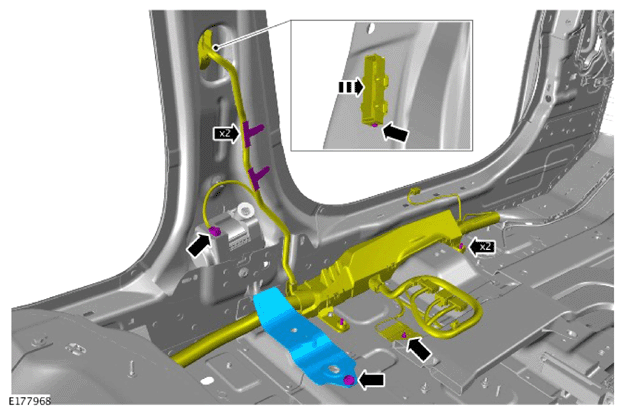

- Remove the bolt.
-
NOTE:
- Repeat this step for the other side.
- Left illustration shown, right is similar.

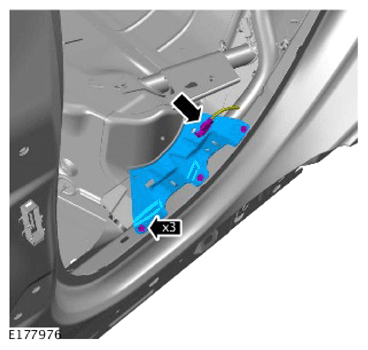

- Remove the 3 nuts.
- Release the clip.
- Remove the bracket.

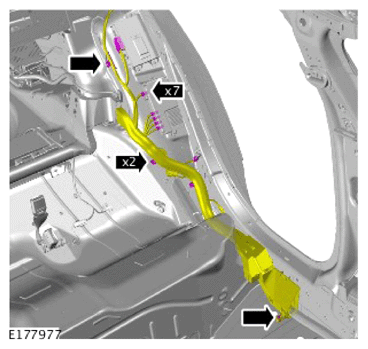

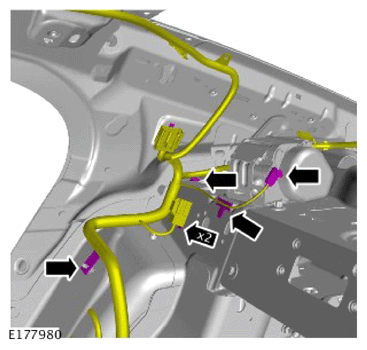

- Disconnect the 7 electrical connectors.
- Release the 3 clips.
- Release the wiring harness from the stud.
- Disconnect the electrical connector.
- Release the 3 clips.
Remove the cover.
The following step(s) applies to:
Vehicles with fuel fired heater
- Remove the fuel tank.
Refer to: FUEL TANK - INGENIUM I4 2.0L Diesel
Refer to: FUEL TANK - V6 S/C 3.0L Petrol
Refer to: FUEL TANK - INGENIUM I4 2.0L Diesel
- Disconnect the electrical connector.
- Release the 5 clips.
- Release the grommet.
The following step(s) applies to:
Vehicles without fuel fired heater
- Disconnect the 2 electrical connectors.
- Release the grommet.
The following step(s) applies to:
All vehicles

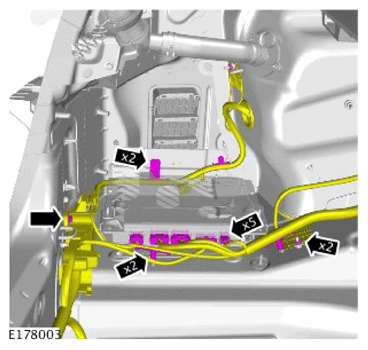

- Disconnect the 5 electrical connectors.
- Remove the nut.
- Release the 3 clips.
- Release the wiring harness from the stud.

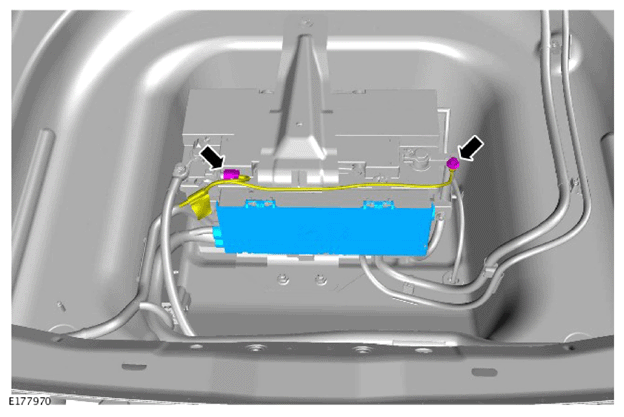

- Disconnect the 2 electrical connectors.
- Release the 2 clips.

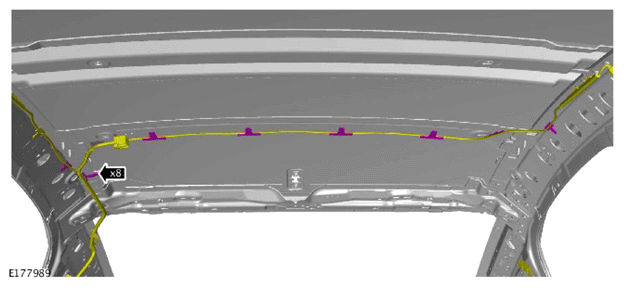

Release the 8 clips.

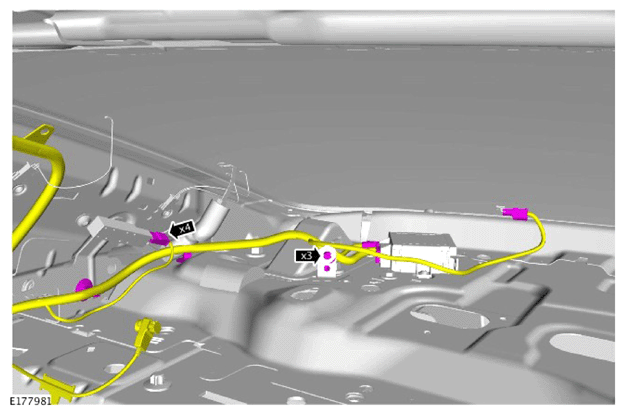

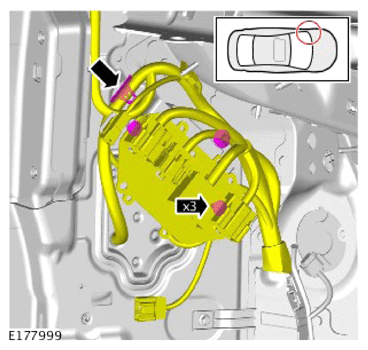

- Disconnect the 4 electrical connectors.
- Release the 3 clips
- Disconnect the electrical connector.
- Release the 5 clips.
- Disconnect the 4 electrical connectors.
- Release the 5 clips.
- Release the wiring harness from the 2 studs.
-
NOTE: Repeat this step for the other side.
Remove the rear left wheel and tire.
Refer to: WHEEL AND TIRE
-
NOTE: Repeat this step for the other side.

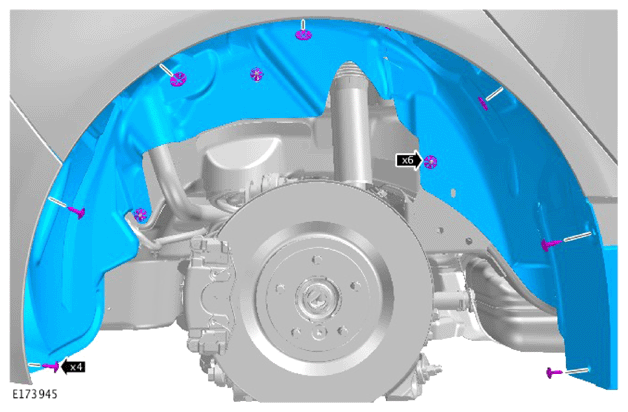

- Release the 6 clips.
- Remove the 4 screws.
- Remove the rear wheel arch liner.
-
NOTE:
- Repeat this step for the other side.
- Left illustration shown, right is similar.

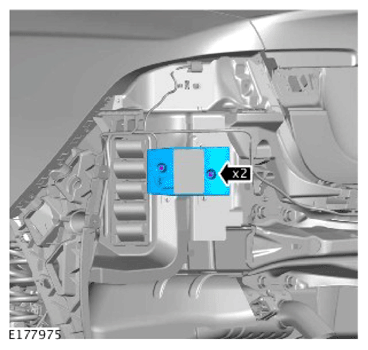

- Remove the 2 bolts.
- Remove the bracket.

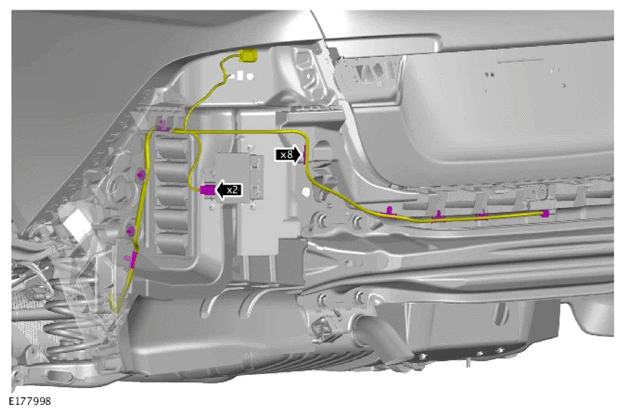

- Disconnect the 2 electrical connectors.
- Release the 8 clips.
- Disconnect the 4 electrical connectors.
- Release the 2 clips.

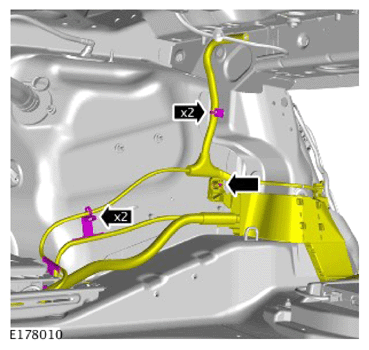

- Disconnect the electrical connector.
- Release the 4 clips.

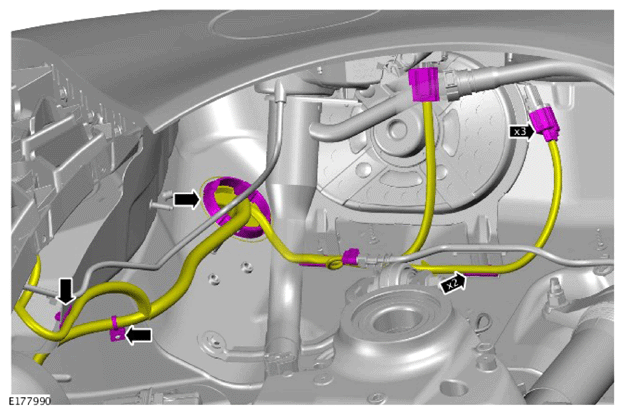

- Disconnect the 3 electrical connectors.
- Release the 4 clips.
- Release the grommet.

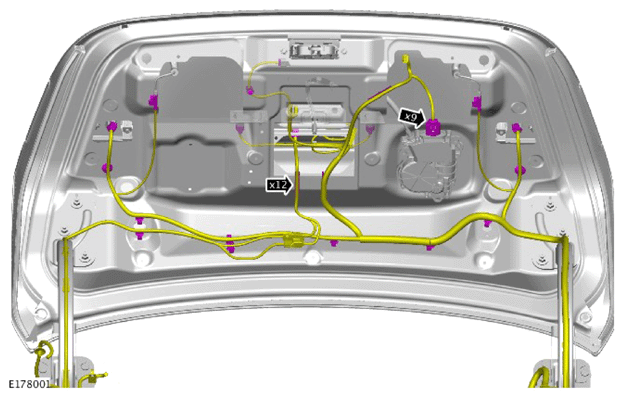

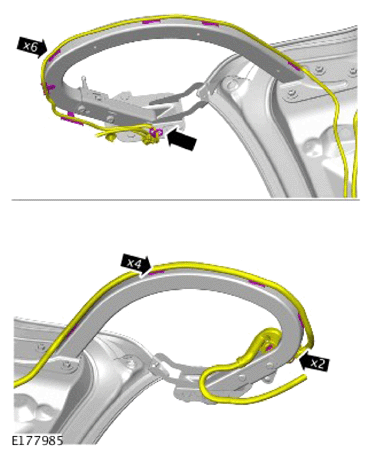

- Disconnect the 9 electrical connectors.
- Release the 12 clips.

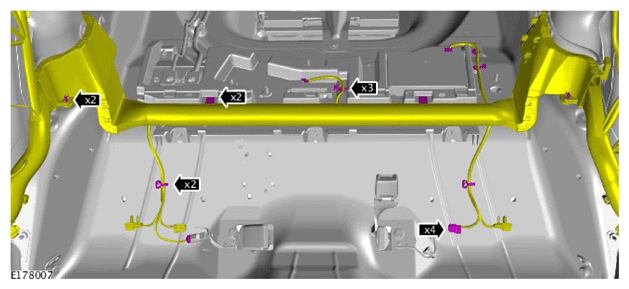

Release the 13 clips.
- Remove the 4 bolts.
- Remove the nut.
- Release the wiring harness from the stud.
- Reposition the bracket as illustrated.

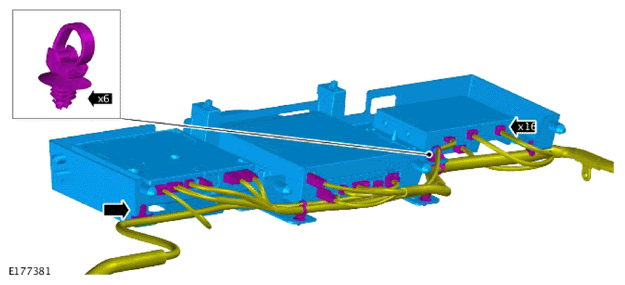

- Disconnect the 16 electrical connectors.
- Release the 7 clips.
Release the 5 clips.
- Remove the bolt.
- Remove the 2 nuts.
- Disconnect the 5 electrical connectors.
- Release the 4 clips.
- Remove the nut.
- Disconnect the 8 electrical connectors.
- Release the 2 clips.

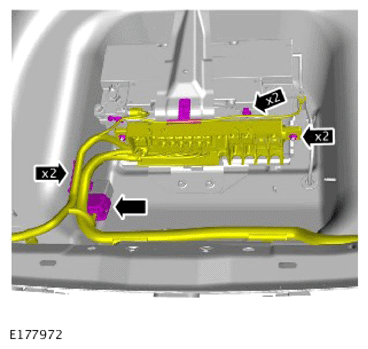

- Remove the bolt.
- Remove the 4 nuts.
- Disconnect the electrical connector.
- Release the 2 clips.

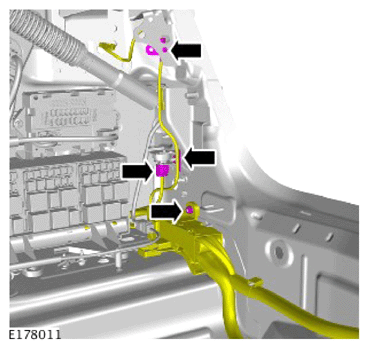

- Remove the nut.
- Disconnect the electrical connector.
- Release the 2 clips.
- Remove the bolt.
- Disconnect the electrical connector.
- Remove the 3 nuts.
- Release the clip.
- Remove the 2 nuts.
- Disconnect the electrical connector.
- Release the 4 clips.

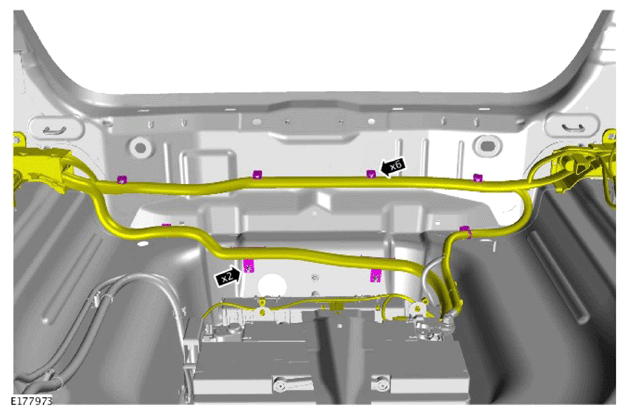

Release the 8 clips.

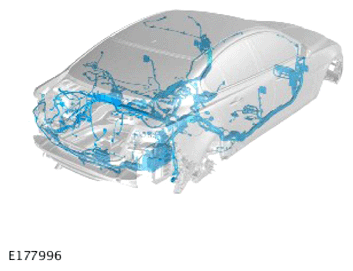

Remove the main wiring harness.
