Main Wiring Harness (G1862905): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

The following step(s) applies to:

All vehicles

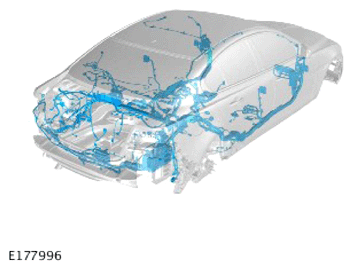

  1. G14009703Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the main wiring harness.

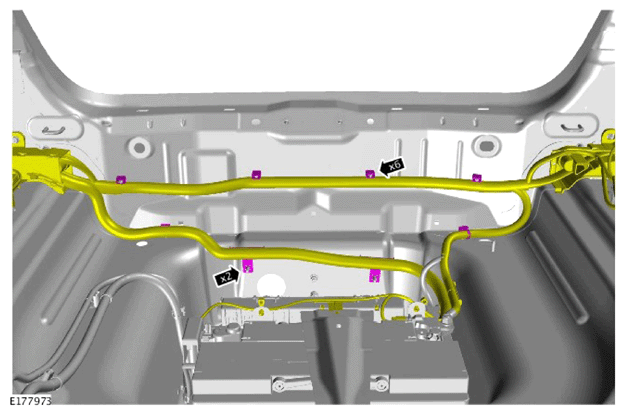

  2. G14009704Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 8 clips.

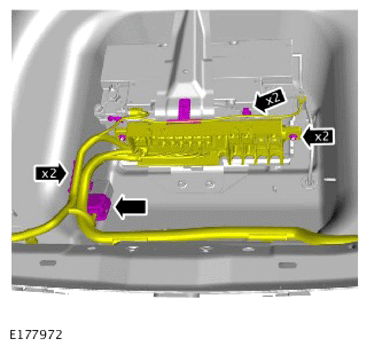

  3. G14009705Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install and tighten the 2 nuts.
    3. Install the 4 clips.

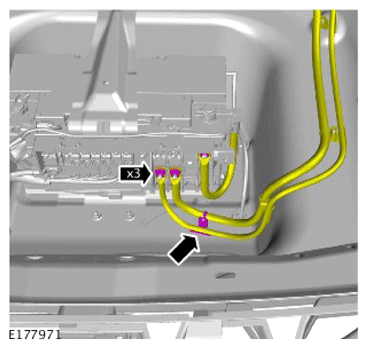

  4. G14009706Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the 3 nuts.
    2. Install the clip.

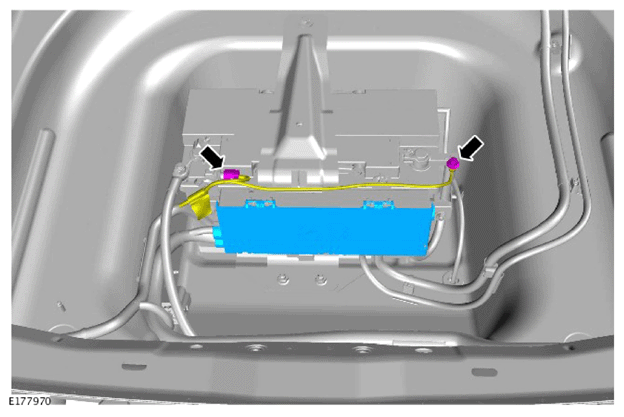

  5. G14009707Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the bolt.
    2. Connect the electrical connector.

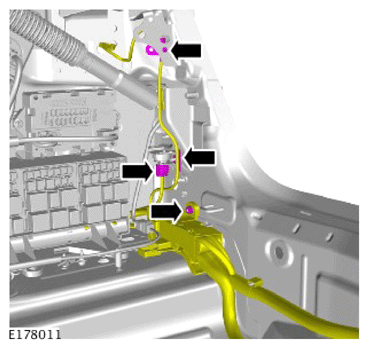

  6. G14009708Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the nut.

      Torque  : 10Nm

    2. Connect the electrical connector.
    3. Install the 2 clips.

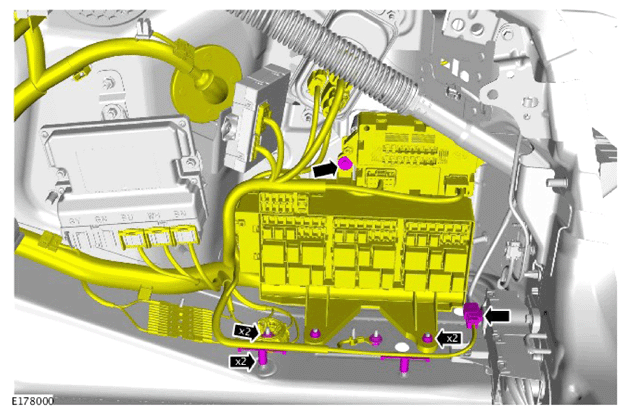

  7. G14009709Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the bolt.

      Torque  : 10Nm

    2. Install and tighten the 4 nuts.

      Torque  : 10Nm

    3. Connect the electrical connector.
    4. Install the 2 clips.

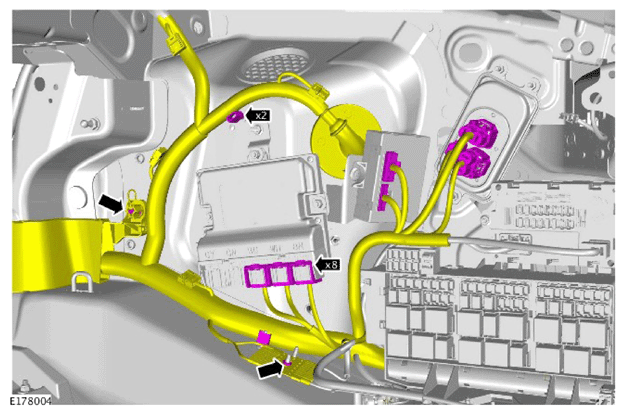

  8. G14009710Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the nut.

      Torque  : 10Nm

    2. Connect the 8 electrical connectors.
    3. Install the 2 clips.

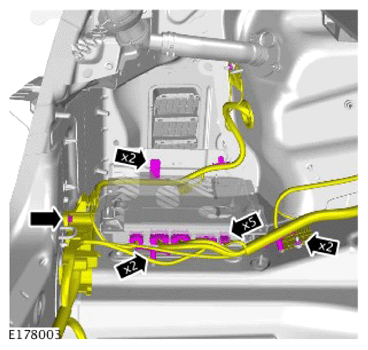

  9. G14009711Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the bolt.

      Torque  : 10Nm

    2. Install and tighten the 2 nuts.

      Torque  : 10Nm

    3. Connect the 5 electrical connectors.
    4. Install the 4 clips.

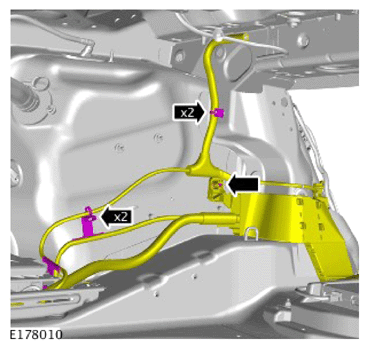

  10. G14009712Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 5 clips.

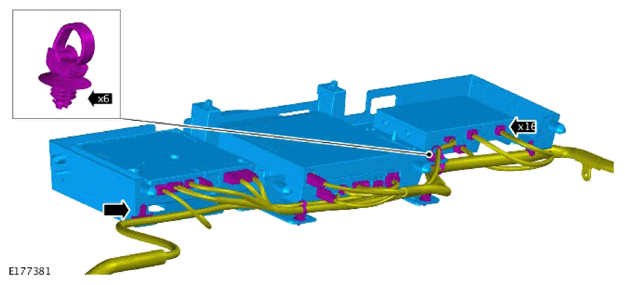

  11. G14009713Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 16 electrical connectors.
    2. Install the 7 clips.

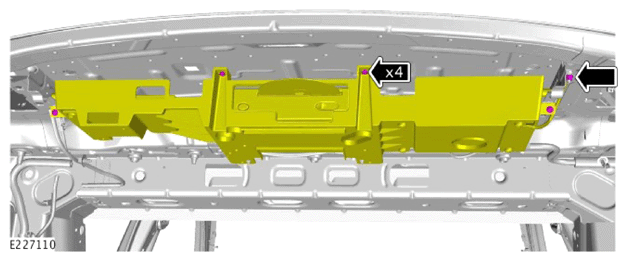

  12. G14009714Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Reposition the bracket as illustrated.
    2. Install and tighten the 4 bolts.

      Torque  : 10Nm

    3. Install and tighten the nut.

      Torque  : 10Nm

    4. Install the wiring harness to the stud.

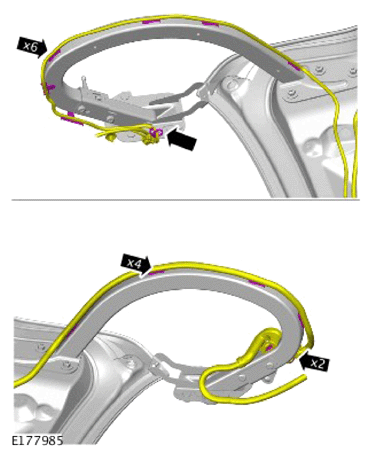

  13. G14009715Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 13 clips.

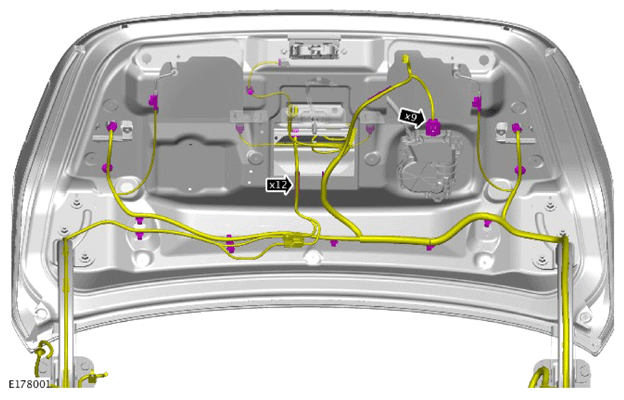

  14. G14009716Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 9 electrical connectors.
    2. Install the 12 clips.

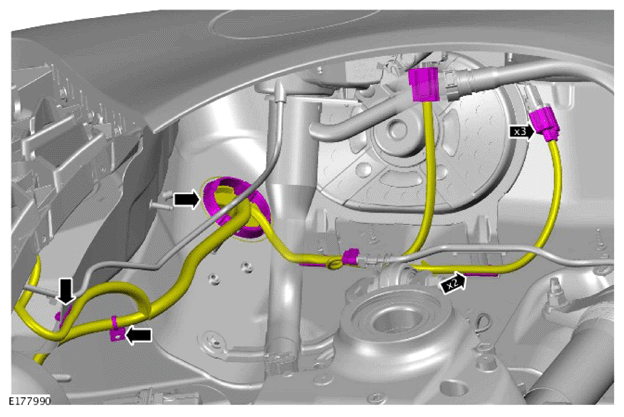

  15. G14009717Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the grommet.
    2. Connect the 3 electrical connectors.
    3. Install the 4 clips.

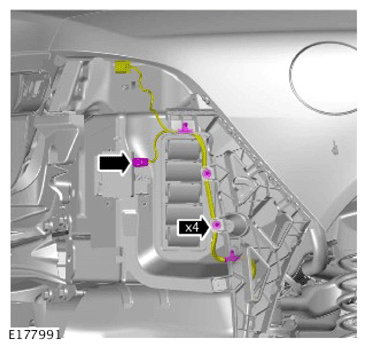

  16. G14009718Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the 4 clips.

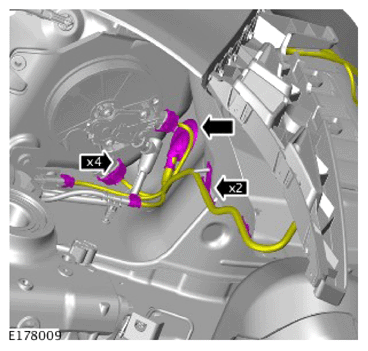

  17. G14009719Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 4 electrical connectors.
    2. Install the 2 clips.

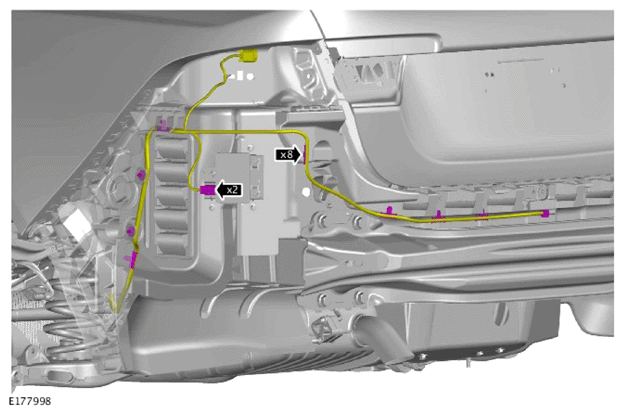

  18. G14009720Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 2 electrical connectors.
    2. Install the 8 clips.
  19. NOTE:
    1. Repeat this step for the other side.
    2. Left illustration shown, right is similar.

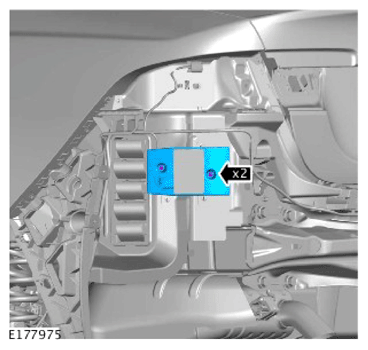

    G14009721Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the bracket.
    2. Install and tighten the 2 bolts.

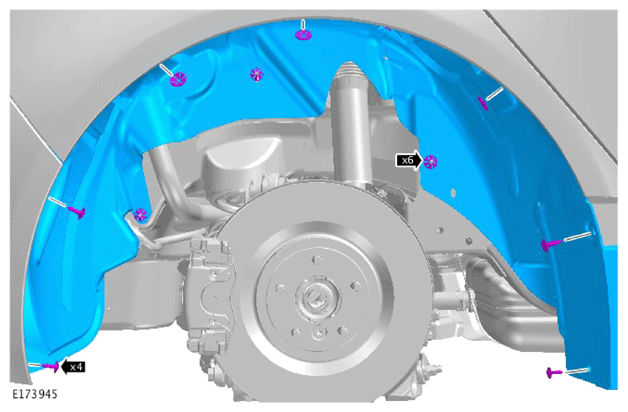

  20. NOTE: Repeat this step for the other side.
    G14009722Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the rear wheel arch liner.
    2. Install the 6 clips.
    3. Install and tighten the 4 screws.
  21. NOTE: Repeat this step for the other side.

    Install the rear left wheel and tire.

    Refer to: WHEEL AND TIRE

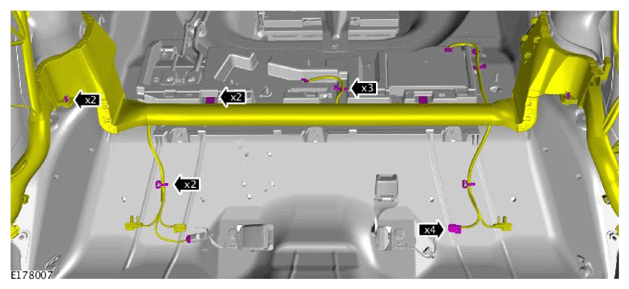

  22. G14009723Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 4 electrical connectors.
    2. Install the 5 clips.
    3. Install the wiring harness to the 2 studs.

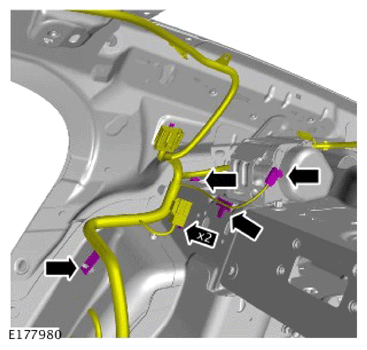

  23. G14009724Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the 5 clips.

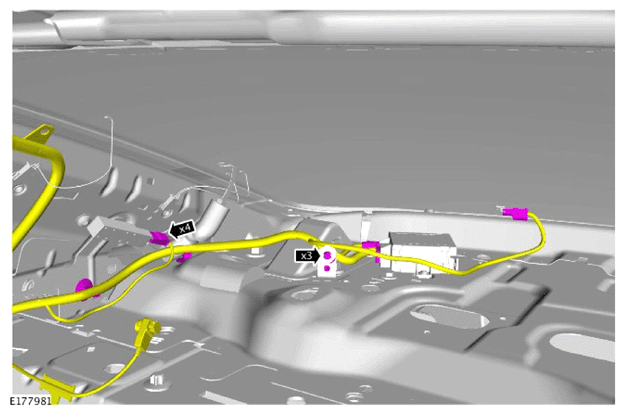

  24. G14009725Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 4 electrical connectors.
    2. Install the 3 clips

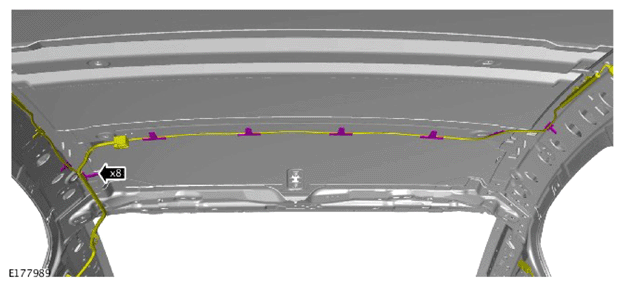

  25. G14009726Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 8 clips.

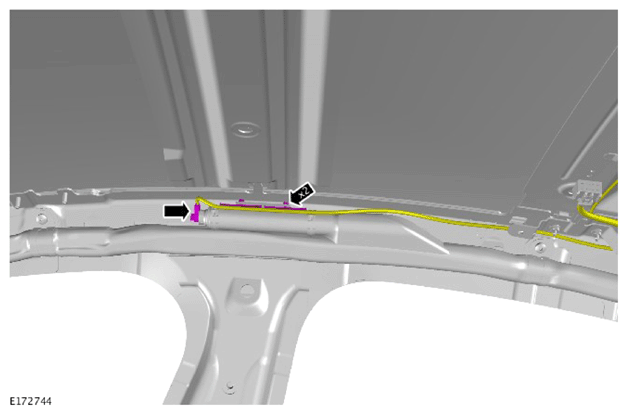

  26. G14009727Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 2 electrical connectors.
    2. Install the 2 clips.

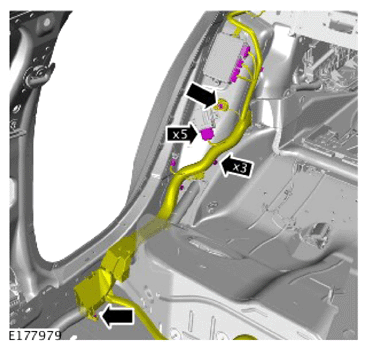

  27. G14009728Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 5 electrical connectors.
    2. Install and tighten the nut.

      Torque  : 10.5Nm

    3. Install the 3 clips.
    4. Install the wiring harness to the stud.

    The following step(s) applies to:

    Vehicles without fuel fired heater

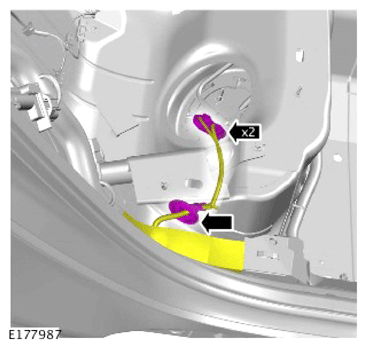

  28. G14009729Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 2 electrical connectors.
    2. Install the grommet.

    The following step(s) applies to:

    Vehicles with fuel fired heater

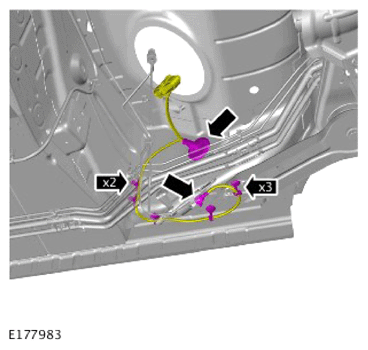

  29. G14009730Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the 5 clips.
    3. Install the grommet.
  30. Install the fuel tank.

    Refer to: FUEL TANK - INGENIUM I4 2.0L Diesel

    Refer to: FUEL TANK - V6 S/C 3.0L Petrol

    Refer to: FUEL TANK - INGENIUM I4 2.0L Diesel

    The following step(s) applies to:

    All vehicles

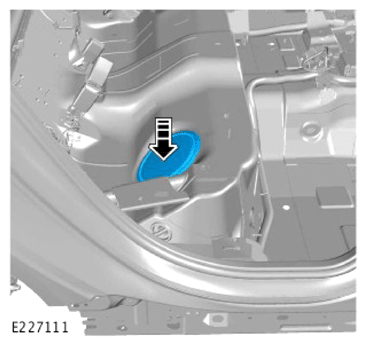

  31. G14009731Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the cover.

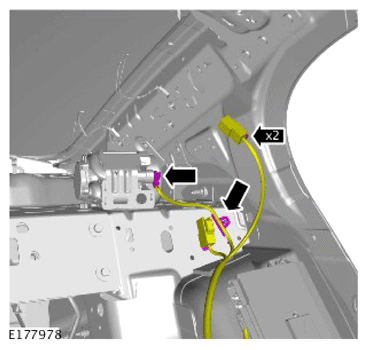

  32. G14009732Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the 3 clips.

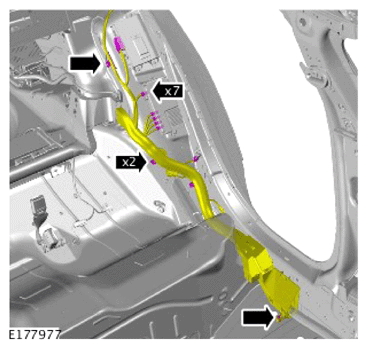

  33. G14009733Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 7 electrical connectors.
    2. Install the 3 clips.
    3. Install the wiring harness to the stud.
  34. NOTE:
    1. Repeat this step for the other side.
    2. Left illustration shown, right is similar.

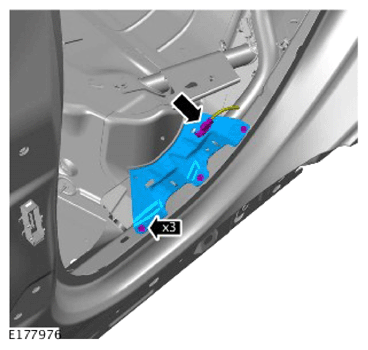

    G14009734Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the bracket.
    2. Install and tighten the 3 nuts.

      Torque  : 10Nm

    3. Install the clip.

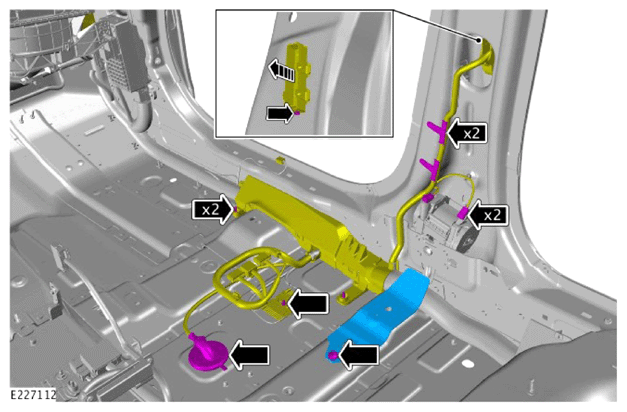

  35. G14009735Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the bracket.
    2. Install and tighten the bolt.

      Torque  : 10Nm

    3. Install and tighten the nut.

      Torque  : 10Nm

    4. Install the 3 clips.
    5. Connect the 2 electrical connectors.
    6. Install the grommet.
    7. Install the wiring harness to the 2 studs.

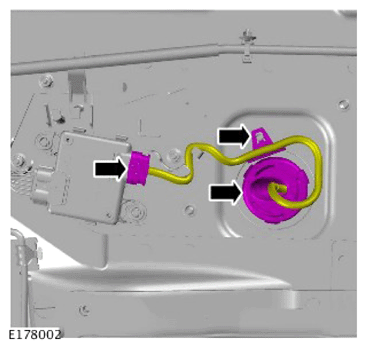

  36. NOTE: If equipped.
    G14009736Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the clip.
    3. Install the grommet.

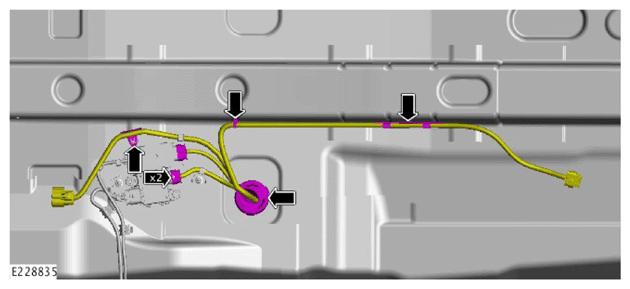

  37. NOTE: If equipped.
    G14009737Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the grommet.
    2. Connect the 2 electrical connectors.
    3. Install the 3 clips.

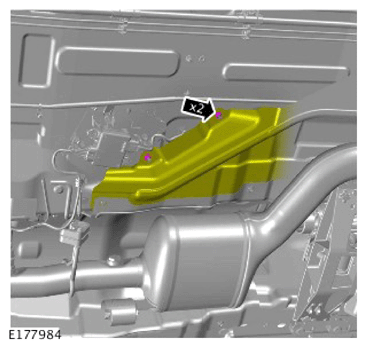

  38. NOTE: If equipped.
    G14009738Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 nuts.

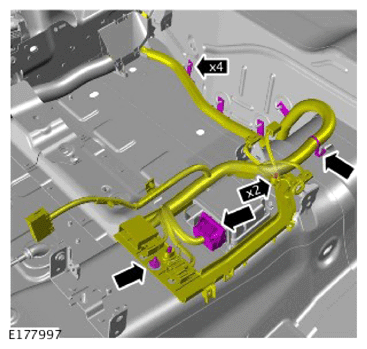

  39. G14009739Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the wiring harness to the 2 studs.
    2. Connect the electrical connector.
    3. Install and tighten the nut.
    4. Install the 5 clips.

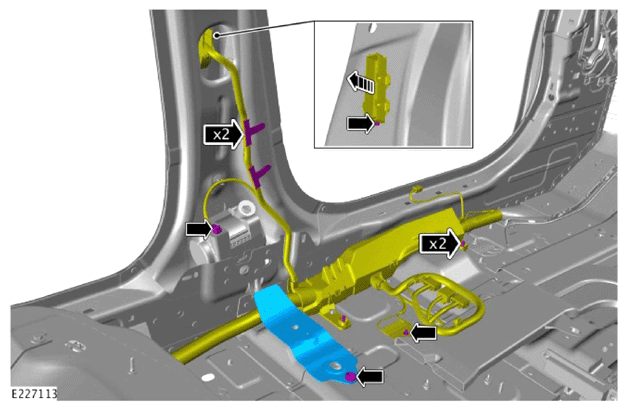

  40. G14009740Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the bolt.

      Torque  : 10Nm

    2. Install the bracket.
    3. Install and tighten the nut.

      Torque  : 10Nm

    4. Connect the electrical connector.
    5. Install the 3 clips.
    6. Reposition the wiring harness as illustrated.
  41. NOTE: Left illustration shown, right is similar.
    G14009741Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the rear door wiring harness.

  42. NOTE:
    1. Repeat this step for the other side.
    2. Left illustration shown, right is similar.

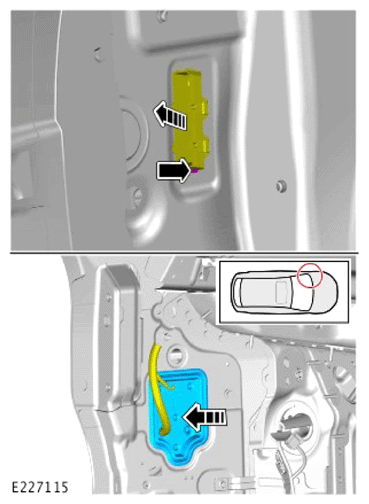

    G14009742Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the grommet.
    2. Install the clip.

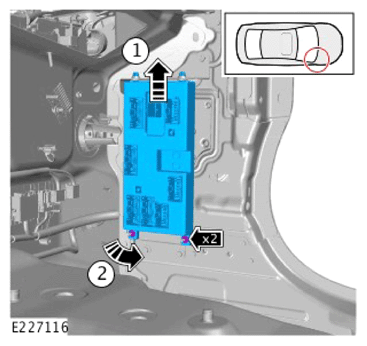

  43. G14009743Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the 2 nuts.

      Torque  : 10Nm

    2. Install the body control module.

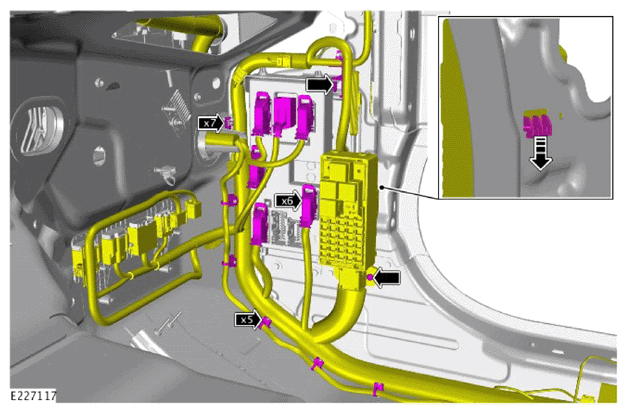

  44. G14009744Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the wiring harness to the clip.
    2. Connect the 6 electrical connectors.
    3. Install the 13 clips.

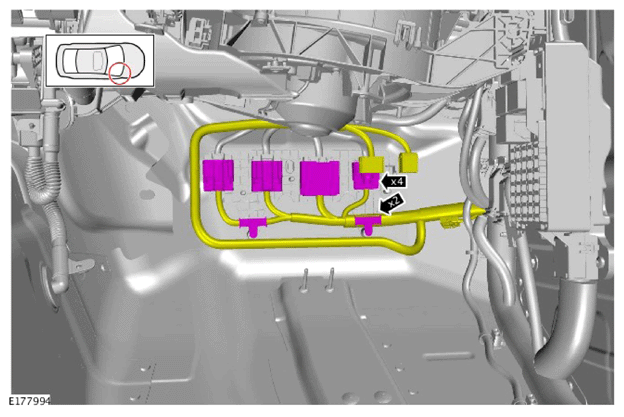

  45. G14009745Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 4 electrical connectors.
    2. Install the 2 clips.

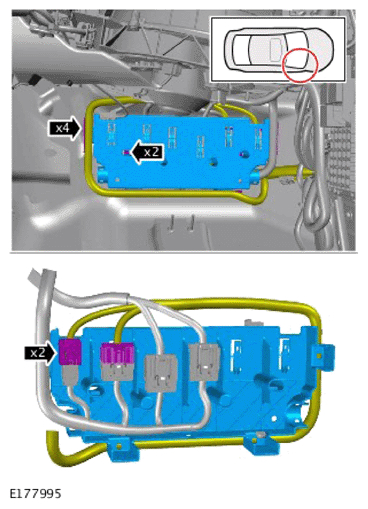

  46. G14009746Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 2 electrical connectors.
    2. Install the clip.
    3. Install and tighten the 2 screws.

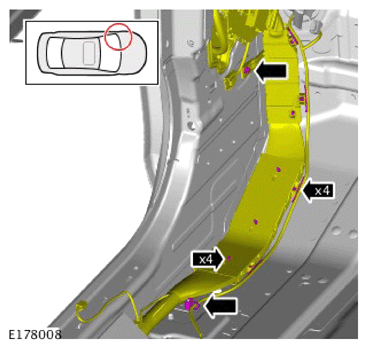

  47. G14009747Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the bracket to the 4 studs.
    2. Install and tighten the bolt.
    3. Install the 5 clips.

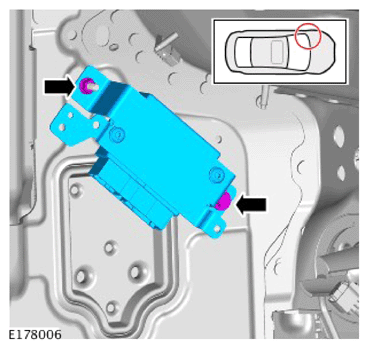

  48. G14009748Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the park assist module.
    2. Install and tighten the bolt.

      Torque  : 10Nm

    3. Install and tighten the nut.

      Torque  : 10Nm

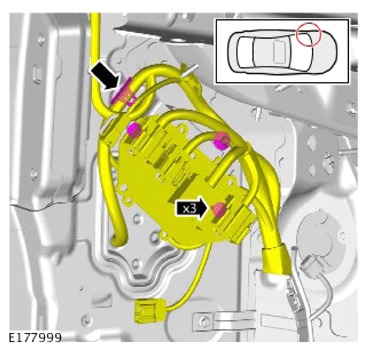

  49. G14009749Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 4 clips.

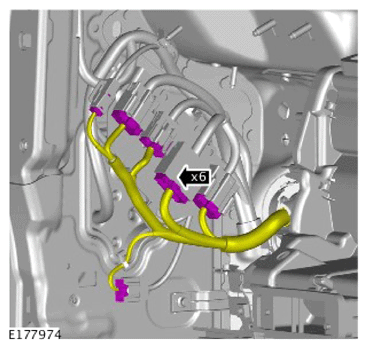

  50. G14009750Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the 6 electrical connectors.

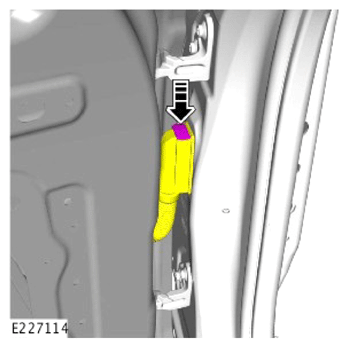

  51. NOTE: Repeat this step for the other side.
    G14009751Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the front door wiring harness.

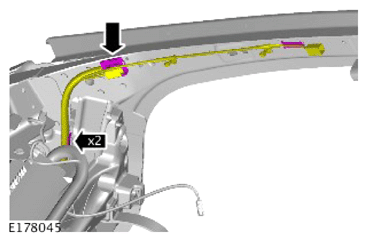

  52. NOTE:
    1. Repeat the step for the other side.
    2. Right illustration shown, left is similar.
    G14009752Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the 2 clips.

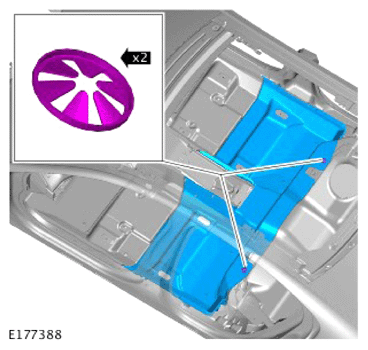

  53. G14009753Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the carpet.
    2. Install the 2 clips.

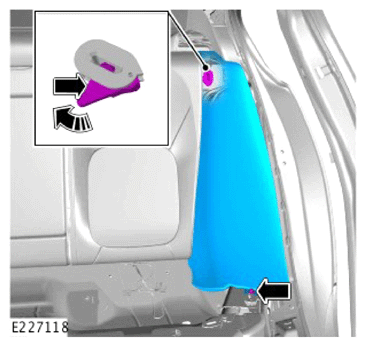

  54. NOTE:
    1. Repeat the step for the other side.
    2. Left illustration shown, right is similar.
    G14009754Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the trim.
    2. Install and tighten the bolt.
    3. Install the clip.
  55. NOTE:
    1. Repeat the step for the other side.
    2. Left illustration shown, right is similar.

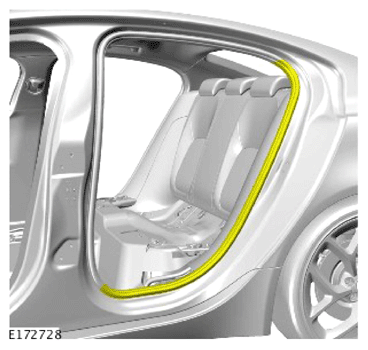

    G14009755Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the weatherstrip.

  56. NOTE:
    1. Repeat the step for the other side.
    2. Left illustration shown, right is similar.

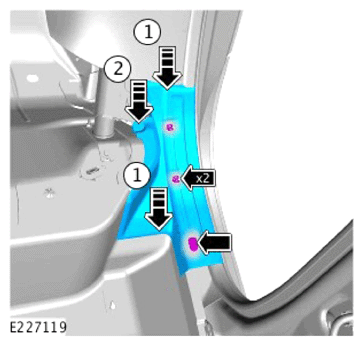

    G14009756Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the trim.
    2. Install the 3 clips.

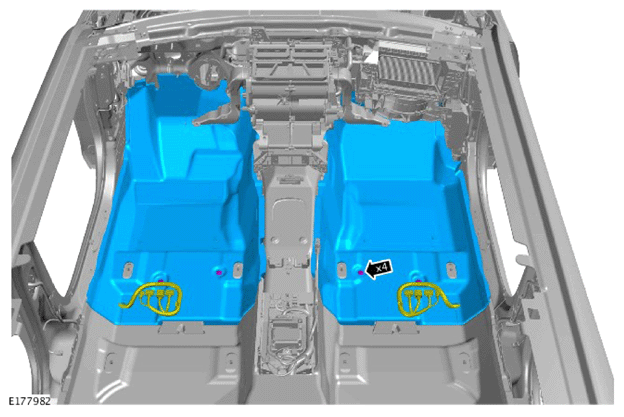

  57. G14009757Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the 2 floor carpets.
    2. Install the 4 clips.

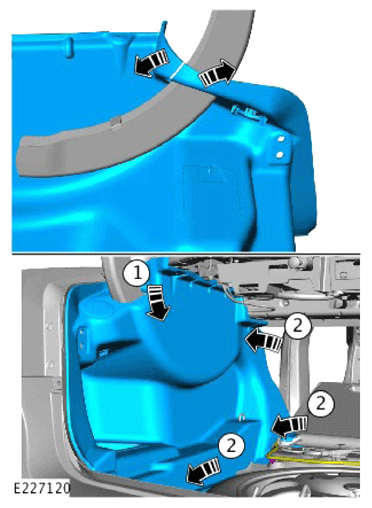

  58. G14009758Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the left side loadspace trim.

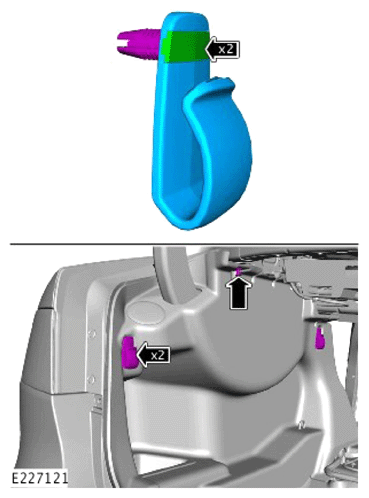

  59. G14009759Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 3 left side loadspace clips.

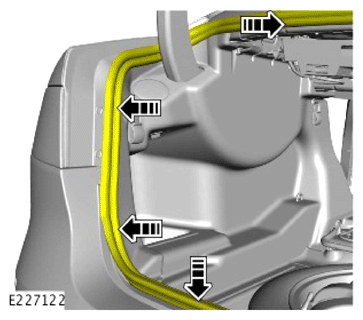

  60. NOTE:
    1. Repeat the step for the other side.
    2. Left side shown, right side is similar.
    G14009760Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the weatherstrip.

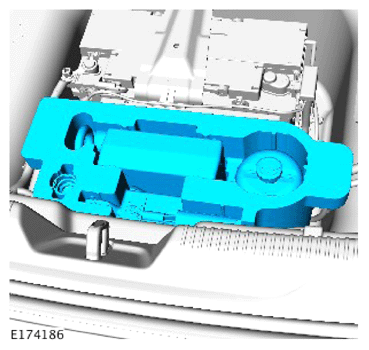

  61. NOTE: If equipped.
    G14009761Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the tire repair kit.

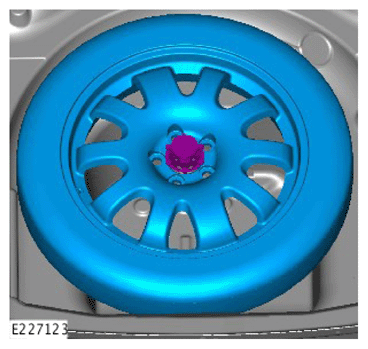

  62. NOTE: If equipped.
    G14009762Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the spare wheel.
    2. Install the bolt.

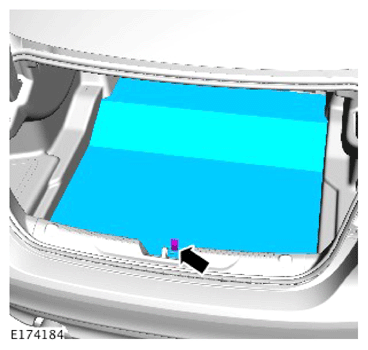

  63. G14009763Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the loadspace trim.

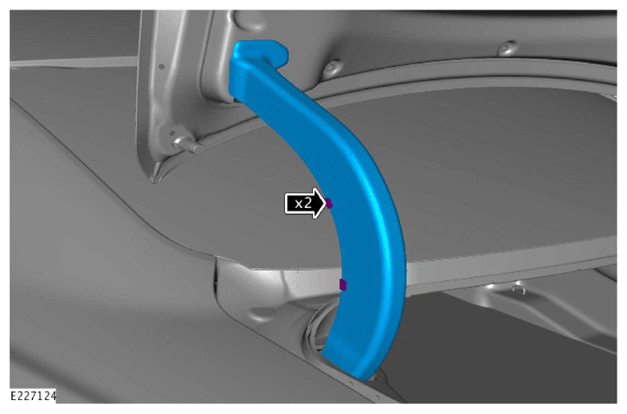

  64. NOTE: Repeat the step for the other side.
    G14009764Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the cover.
    2. Install the 2 clips.
  65. Install the luggage compartment lid trim panel.

    Refer to: LUGGAGE COMPARTMENT LID TRIM PANEL

  66. Install the rear lamp assembly.

    Refer to: REAR LAMP ASSEMBLY

  67. Install the rear bumper.

    Refer to: REAR BUMPER

  68. Install the parcel shelf.

    Refer to: PARCEL SHELF

  69. Install the luggage compartment treadplate.

    Refer to: LUGGAGE COMPARTMENT TREADPLATE

  70. Install the rear seat backrest cover.

    Refer to: REAR SEAT BACKREST COVER

  71. NOTE: Repeat this step for the other side.

    Remove the left side front row seat.

    Refer to: FRONT ROW SEAT

  72. Install the A-pillar lower trim panel.

    Refer to: A-PILLAR LOWER TRIM PANEL

  73. Install the B-pillar lower trim panel.

    Refer to: B-PILLAR LOWER TRIM PANEL

  74. Install the headliner.

    Refer to: HEADLINER

  75. Install the thermostatic expansion valve.

    Refer to: THERMOSTATIC EXPANSION VALVE

  76. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

scientia non olet · About LEMON Manuals
