Engine Wiring Harness - Project 8 (G2248420): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  1. Note the installed position of the component(s) prior to removal.
  2. Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  1. This procedure contains illustrations showing certain components removed to provide extra clarity.
  2. This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the left air filter housing.

    Refer to: LEFT AIR FILTER HOUSING

  3. Remove the right air filter housing.

    Refer to: RIGHT AIR FILTER HOUSING

  4. Remove the Air Cleaner Outlet Pipe T-Connector.

    Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR

  5. Remove the secondary bulkhead left inner panel.

    Refer to: SECONDARY BULKHEAD LEFT INNER PANEL - PROJECT 8

  6. Remove the secondary bulkhead right inner panel.

    Refer to: SECONDARY BULKHEAD RIGHT INNER PANEL - PROJECT 8

  7. Raise and support the vehicle.

    Refer to: LIFTING

  8. Remove the exhaust system.

    Refer to: EXHAUST SYSTEM CENTER SECTION

  9. Drain the coolant.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

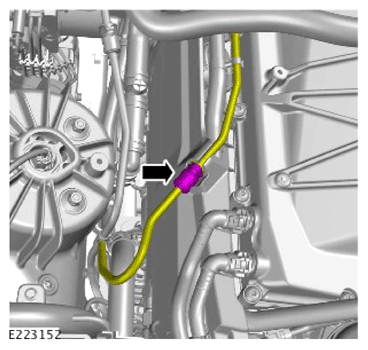

  10. G14009387Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the vacuum pipe.

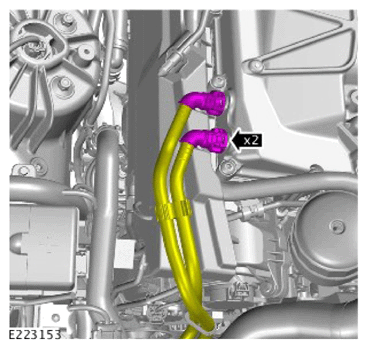

  11. G14009388Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 coolant hoses.

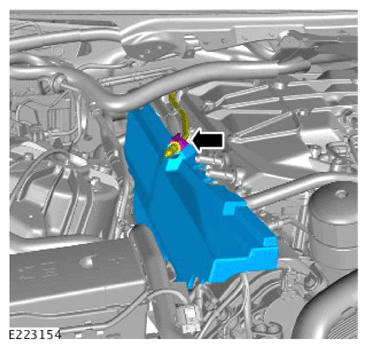

  12. G14009389Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the Noise, Vibration and Harness (NVH) material.

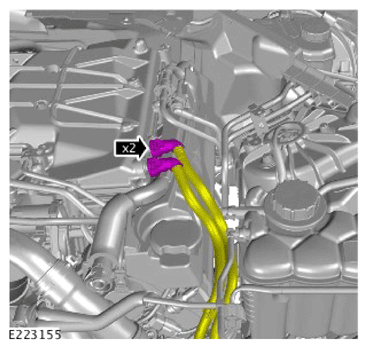

  13. G14009390Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 coolant hoses.

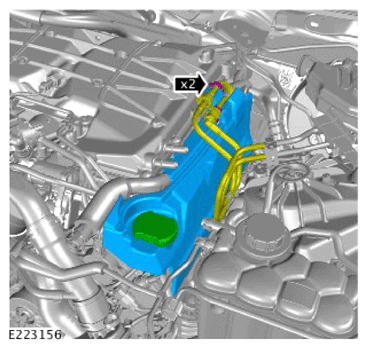

  14. G14009391Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the NVH material.

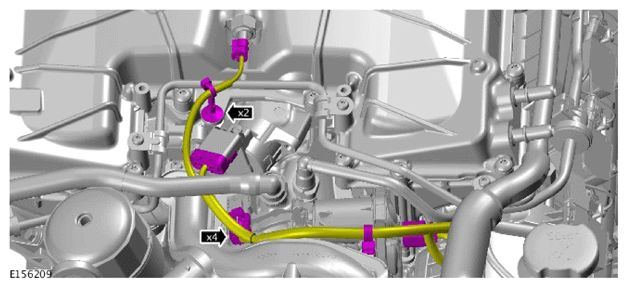

  15. G14009392Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 2 electrical connectors.
    2. Release the 4 wiring harness clips.

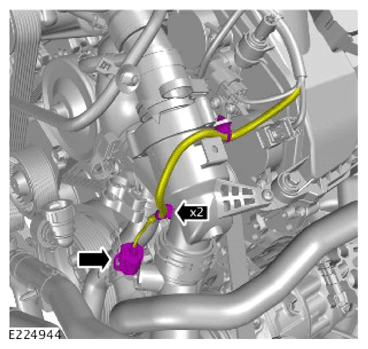

  16. G14009393Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Release the 2 wiring harness clips.

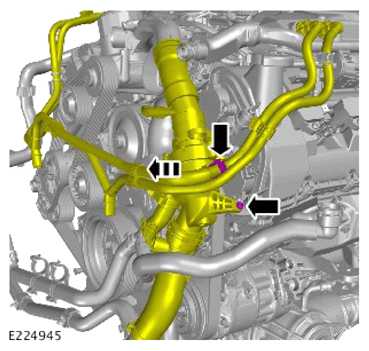

  17. G14009394Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the clip.
    2. Remove the bolt.
    3. Move the thermostat housing from the engine.

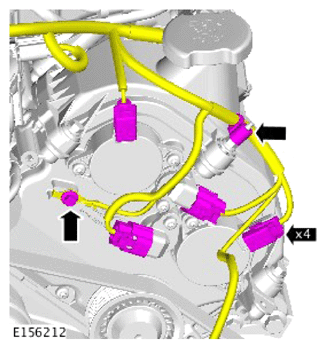

  18. G14009395Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 4 electrical connectors.
    2. Release the wiring harness clip.
    3. Remove the bolt to release the ground cable.

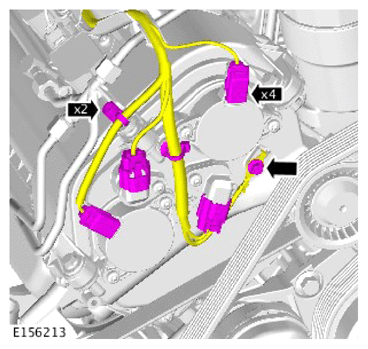

  19. G14009396Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 4 electrical connectors.
    2. Release the 2 wiring harness clips.
    3. Remove the bolt to release the ground cable.

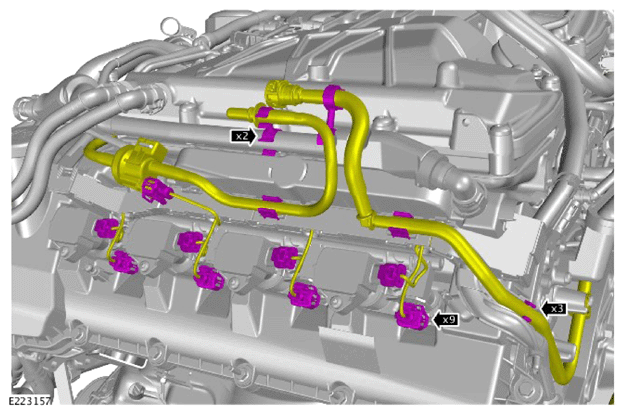

  20. G14009397Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 9 electrical connectors.
    2. Release the 2 hose clips.
    3. Release the fuel pipes from the 3 clips.

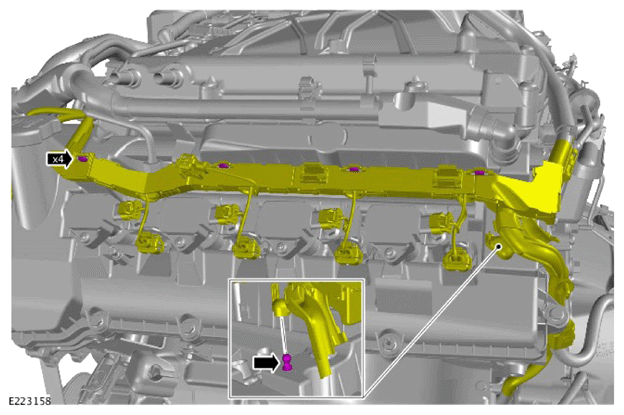

  21. G14009398Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the 5 clips.
    2. Move the wiring harness carrier aside.

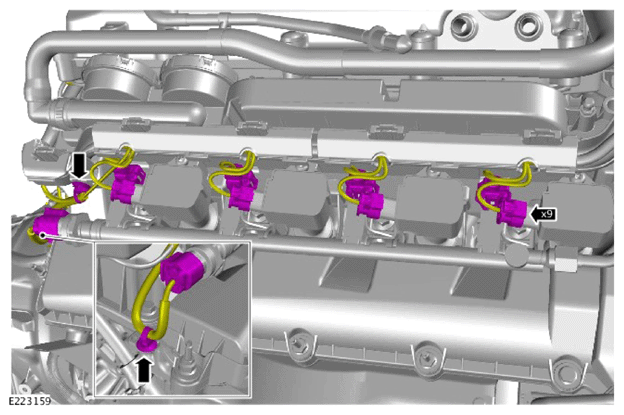

  22. G14009399Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 9 electrical connectors.
    2. Release the 2 wiring harness clips.

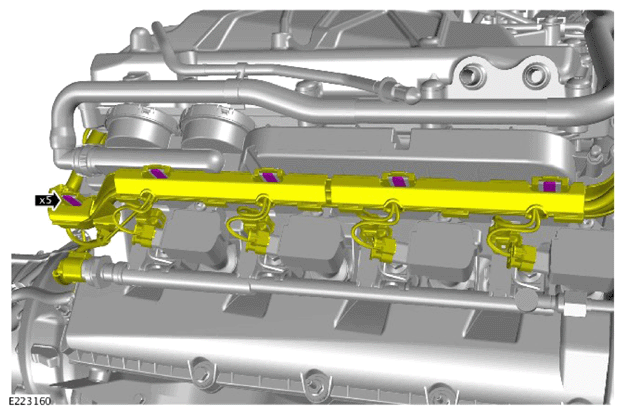

  23. G14009400Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the 5 clips.
    2. Move the wiring harness carrier aside.

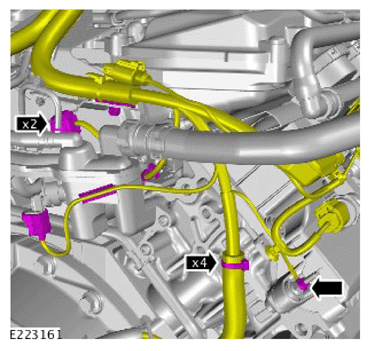

  24. G14009401Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 2 electrical connectors.
    2. Release the 4 wiring harness clips.
    3. Remove the nut to release the ground cable.

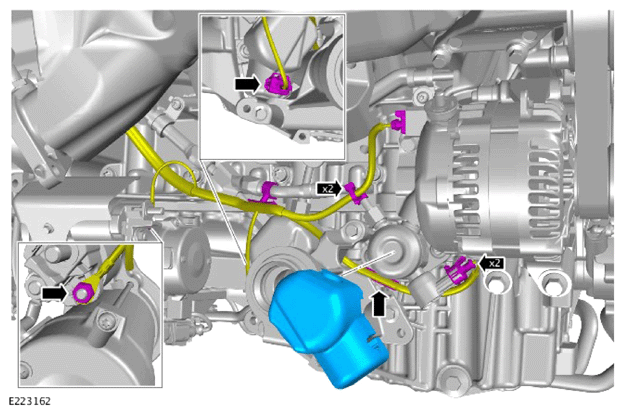

  25. G14009402Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the High Pressure (HP) fuel pump cover.
    2. Disconnect the 3 electrical connectors.
    3. Remove the nut to release the starter cable.
    4. Release the 3 wiring harness clips.

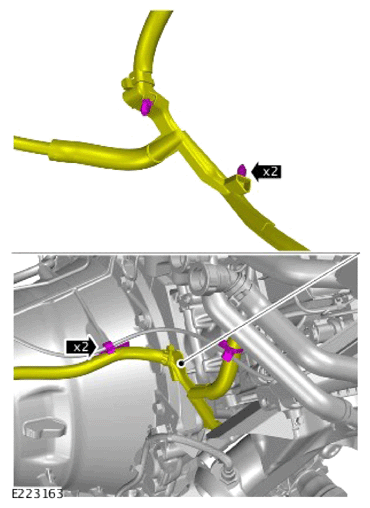

  26. G14009403Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the 2 wiring harness clips.
    2. Release the wiring harness carrier.

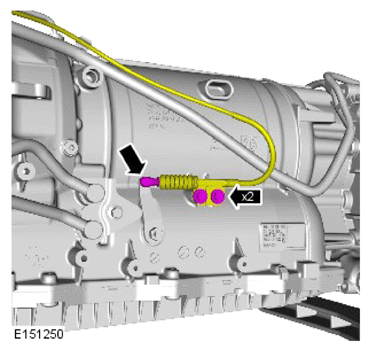

  27. G14009404Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the 2 bolts.
    2. Release the cable from the selector lever.

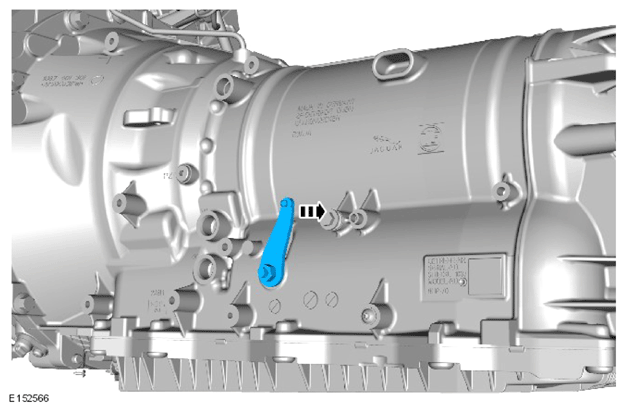

  28. G14009405Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the selector lever from position PARK.

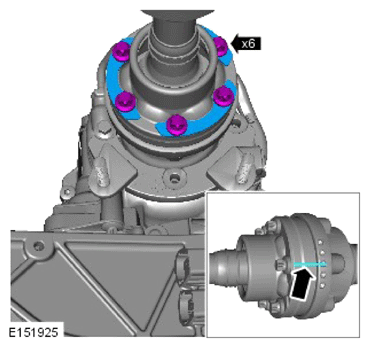

  29. NOTE: Mark the position of the driveshaft on the transfer case flange.
    G14009406Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove and discard the 6 bolts.
    2. Remove the 3 washers.

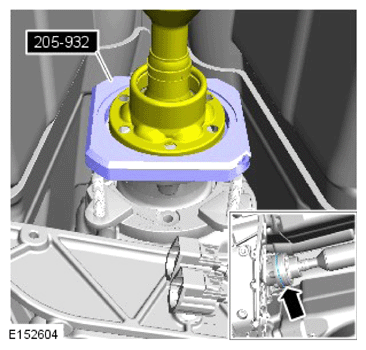

  30. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
    NOTE:
    1. Make sure that the special tool is correctly installed to the recess on the driveshaft.
    2. Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.
    G14009407Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the rear driveshaft from the transfer case flange.

    Special Tool(s): 205-932

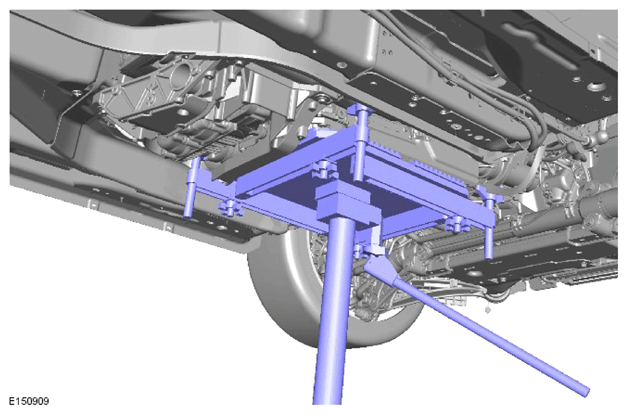

  31. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G14009408Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the suitable equipment, support the transmission.

    General Equipment: Transmission jack

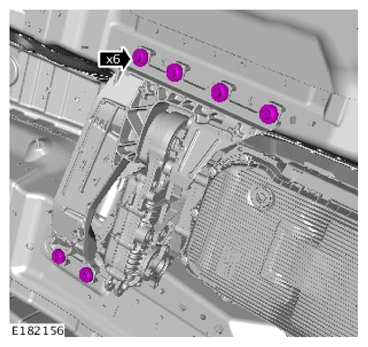

  32. G14009409Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 6 bolts.

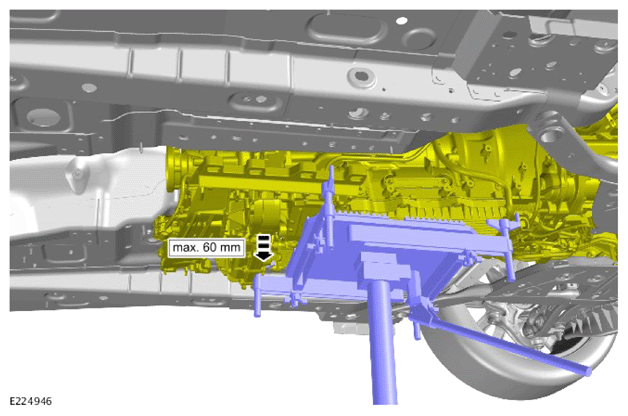

  33. CAUTION: Make sure that the transmission is lowered to the value indicated in the illustration.
    G14009410Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Lower the transmission.

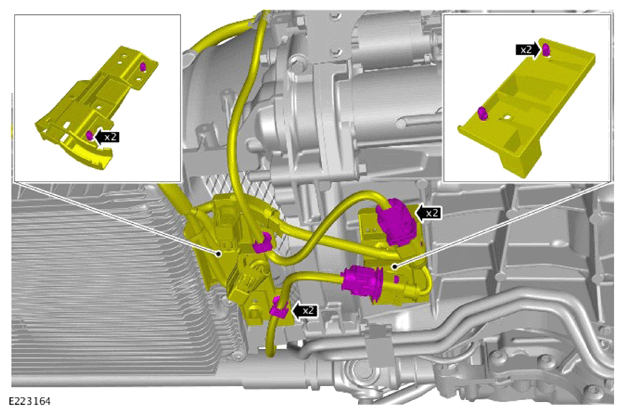

  34. G14009411Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 2 electrical connectors.
    2. Release the 2 wiring harness clips.
    3. Release the 2 wiring harness carriers.

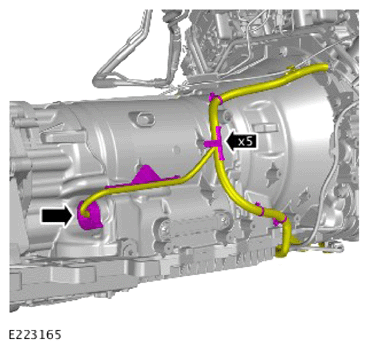

  35. G14009412Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Release the 5 wiring harness clips.

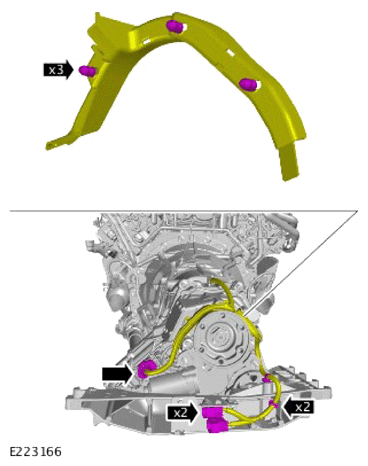

  36. G14009413Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Release the 2 electrical connectors.
    3. Release the wiring harness carrier.
    4. Release the 2 wiring harness clips.

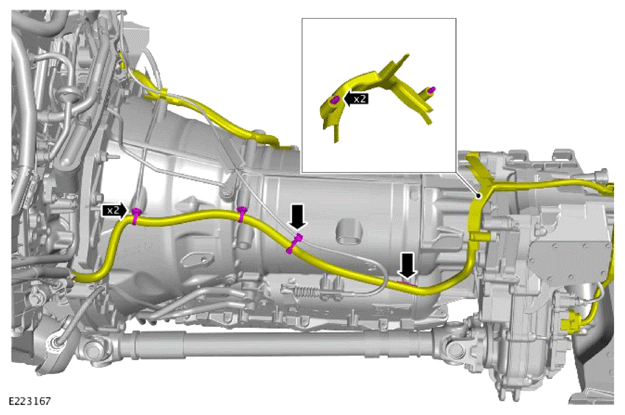

  37. G14009414Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the wiring harness carrier.
    2. Release the 4 wiring harness clips.

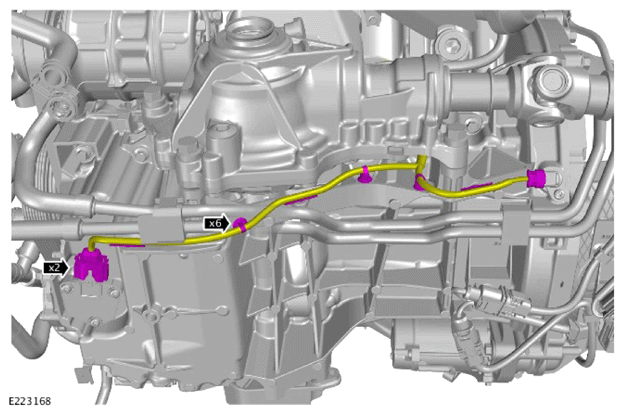

  38. G14009415Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 2 electrical connectors.
    2. Release the 6 wiring harness clips.

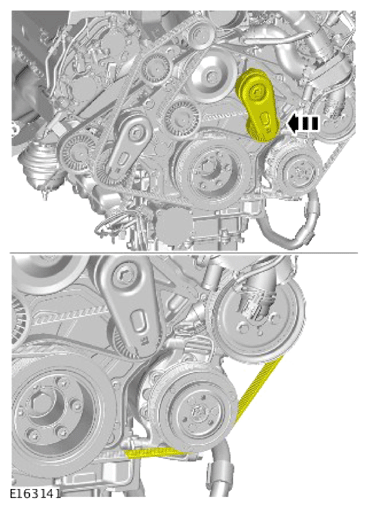

  39. G14009416Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the accessory drive belt tensioner.
    2. Release the accessory drive belt from the Air Conditioning (A/C) compressor pulley.

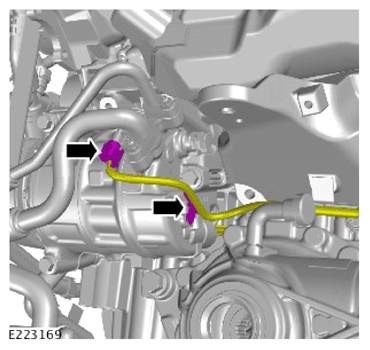

  40. G14009417Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Release the wiring harness clip.

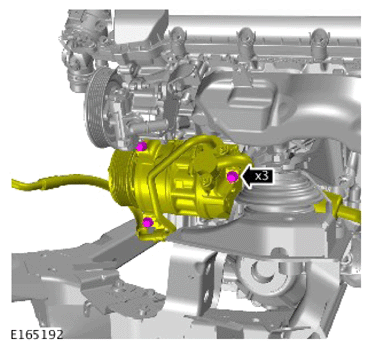

  41. G14009418Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the 3 bolts.
    2. Position the A/C compressor aside.

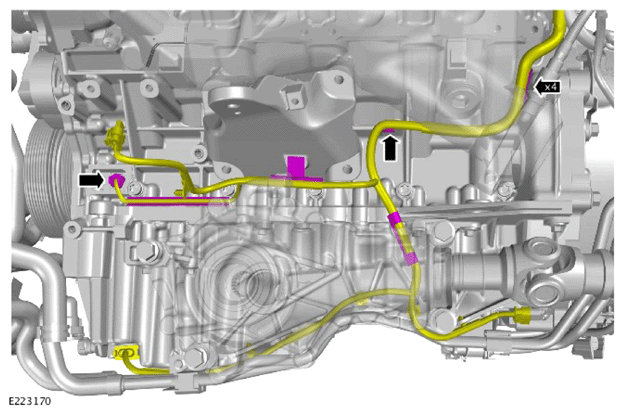

  42. G14009419Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Release the 5 wiring harness clips.

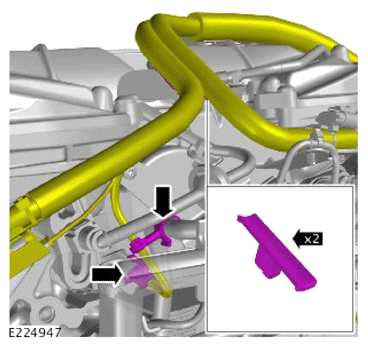

  43. G14009420Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Release the 3 wiring harness clips.

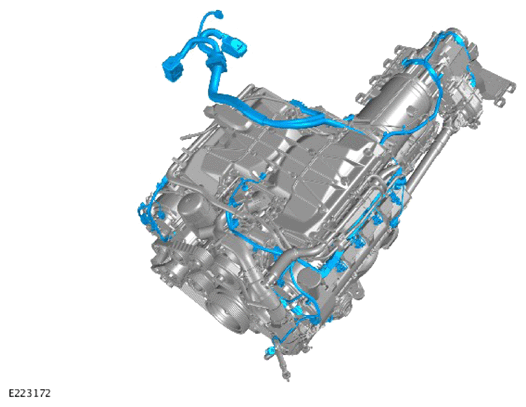

  44. G14009421Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the engine wiring harness.
