Engine Wiring Harness - Project 8 (G2248420): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

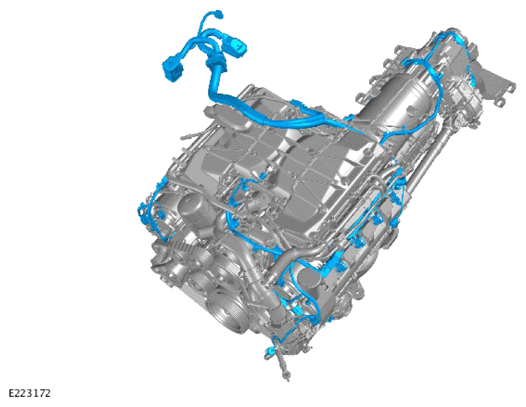

Install the engine wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

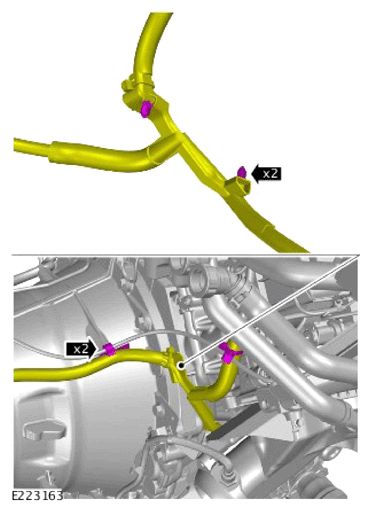

1. Connect the electrical connector.
2. Secure the 3 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

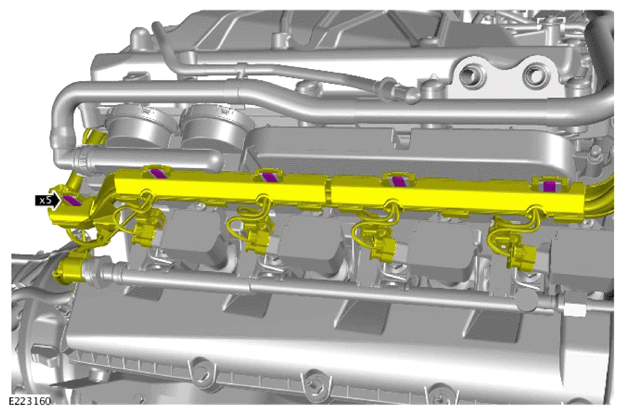

1. Connect the electrical connector.
2. Secure the 5 wiring harness clips.

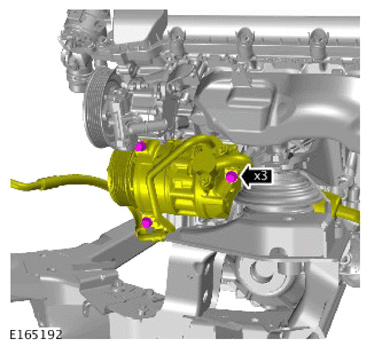

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Install the air conditioning Air Conditioning (A/C) compressor.
2. Install and tighten the 3 bolts.
  Torque : 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

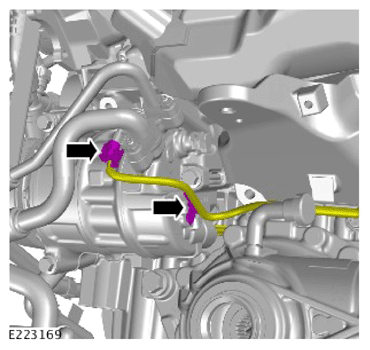

1. Connect the electrical connector.
2. Secure the wiring harness clip.
CAUTION: Make sure the accessory belt is correctly aligned to the pulleys. Failure to follow this instruction may result in damage to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

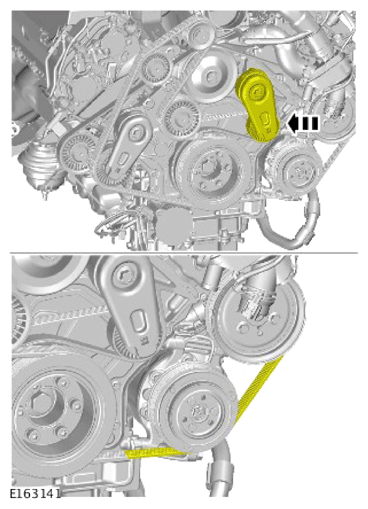

1. Release the accessory drive belt tensioner.
2. Install the accessory drive belt to the A/C compressor pulley.

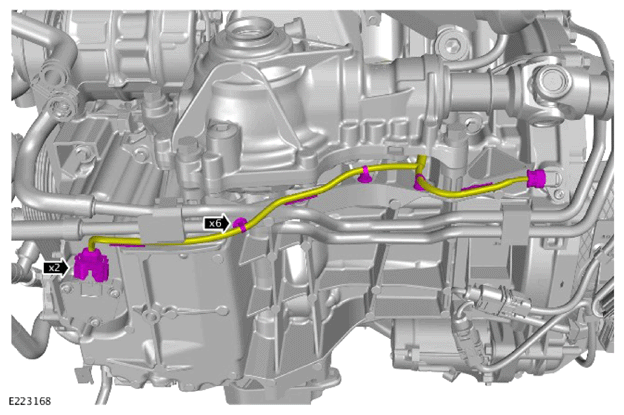

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Connect the 2 electrical connectors.
2. Secure the 6 wiring harness clips.

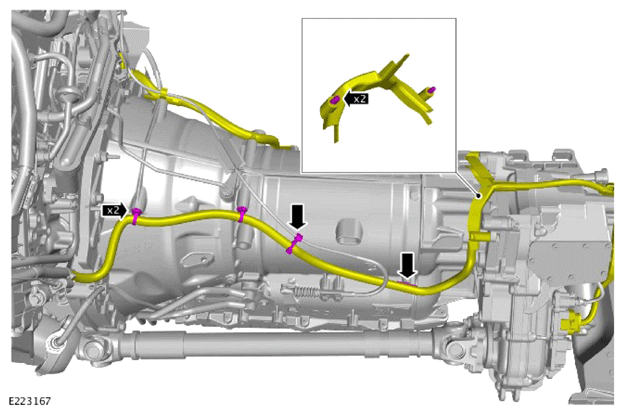

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Secure the wiring harness carrier.
2. Secure the 4 wiring harness clips.

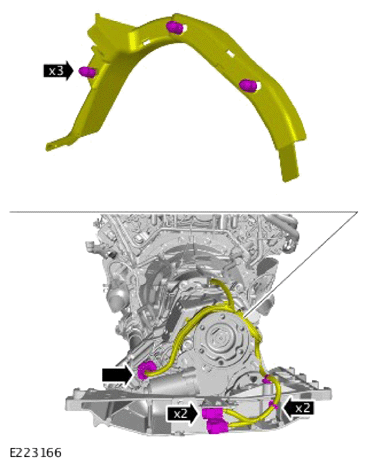

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Connect the electrical connector.
2. Secure the 2 electrical connectors.
3. Secure the wiring harness carrier.
4. Secure the 2 wiring harness clips.

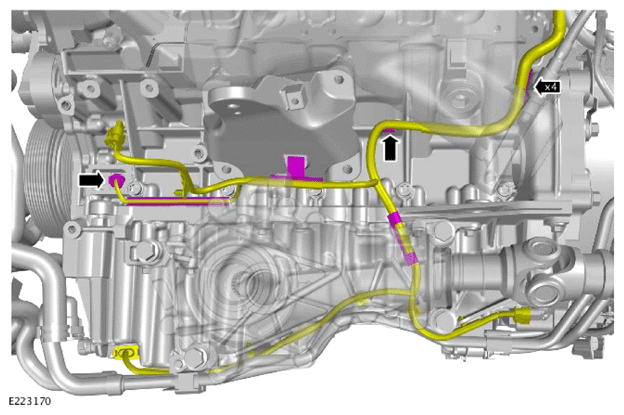

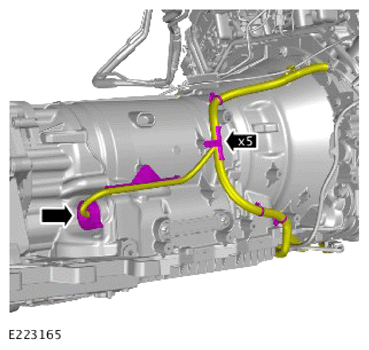

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Connect the electrical connector.
2. Secure the 5 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

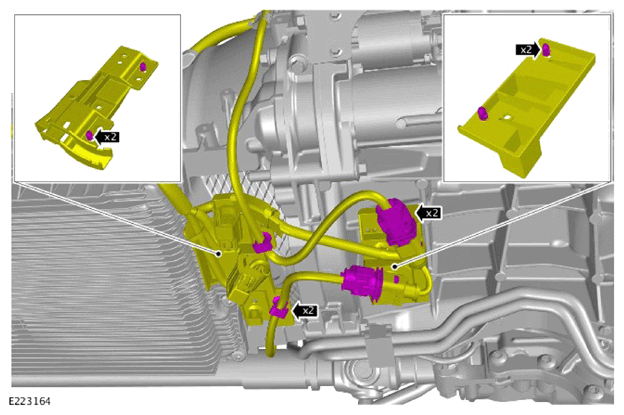

1. Install the wiring harness carrier.
2. Connect the 2 electrical connectors.
3. Secure the 2 wiring harness clips.

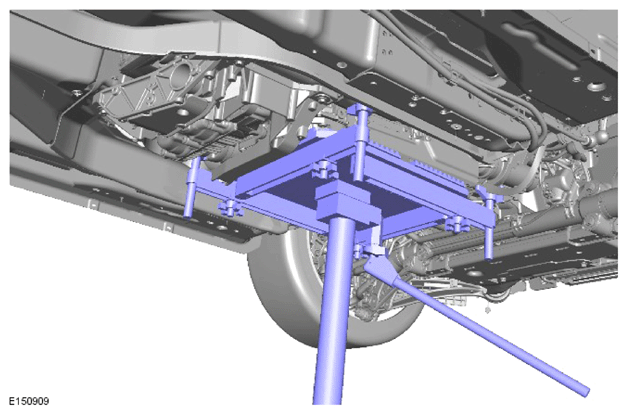

Raise the transmission.
General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

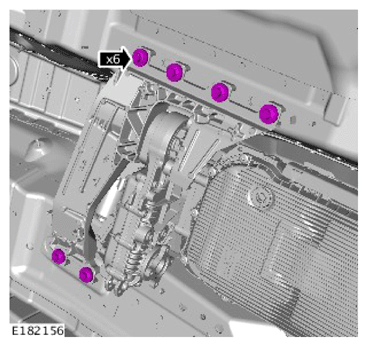

Install and tighten the 6 bolts.

Torque : 48Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the jack supporting the transmission.
NOTE: Make sure the component is installed in the noted position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

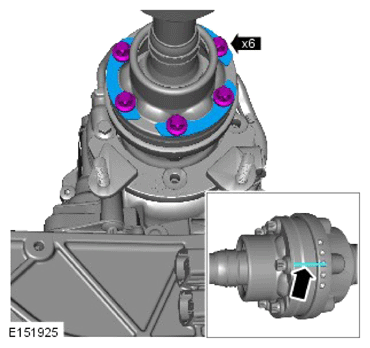

1. Install the 3 washers.
2. Install and tighten the 6 new bolts.
  Renew Part: Driveshaft flange bolts Quantity: 6.

  Torque : 75Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

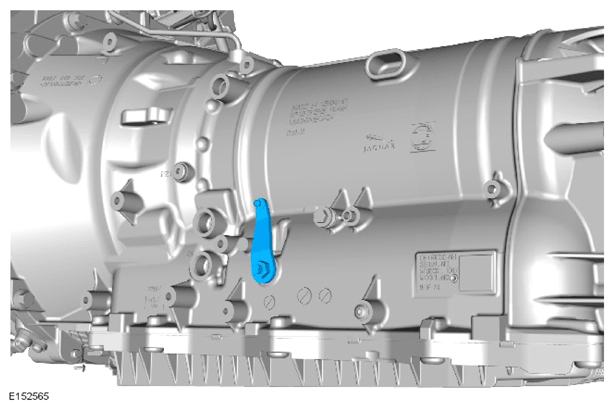

Position the gearshift lever in PARK.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

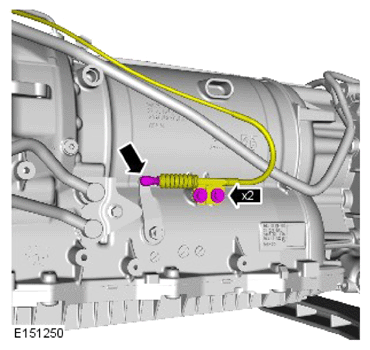

1. Install the cable to the selector lever.
2. Install and tighten the 2 bolts.
  Torque : 11Nm

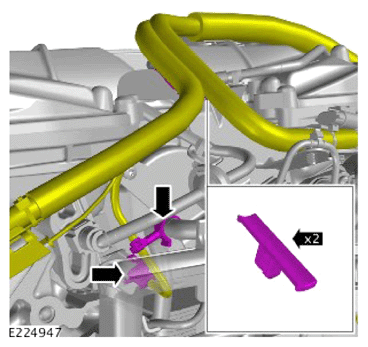

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

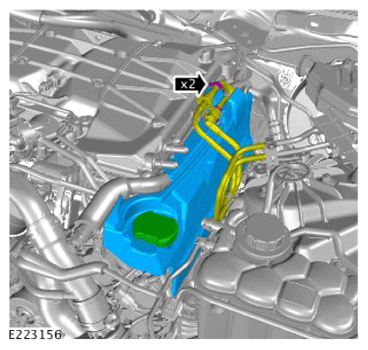

1. Secure the wiring harness carrier.
2. Secure the 2 wiring harness clips.

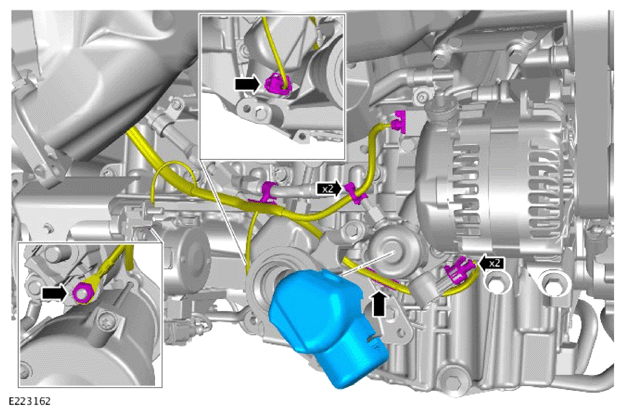

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

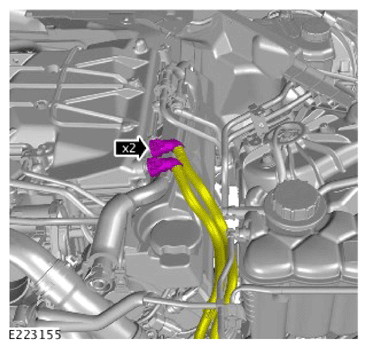

1. Connect the 2 electrical connectors.
2. Install and tighten the nut to secure the starter cable.
  Torque : 7Nm
3. Secure the 3 wiring harness clips.
4. Install the High Pressure (HP) fuel pump cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

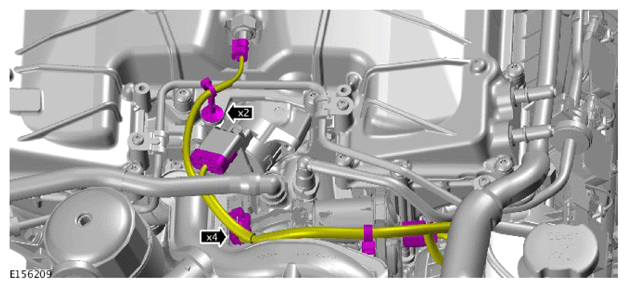

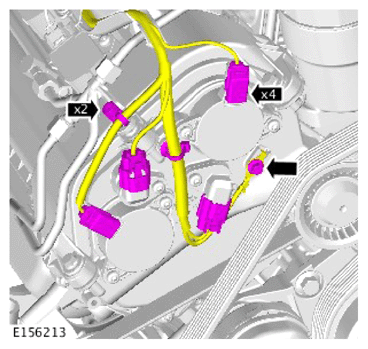

1. Connect the 2 electrical connectors.
2. Secure the 4 wiring harness clips.
3. Install and tighten the nut to secure the ground cable.
  Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

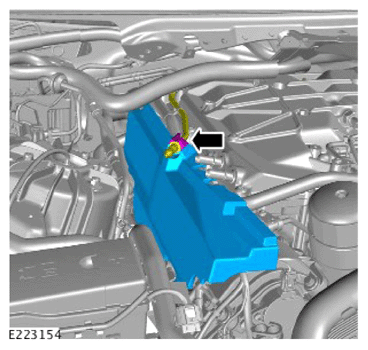

Install the wiring harness carrier.

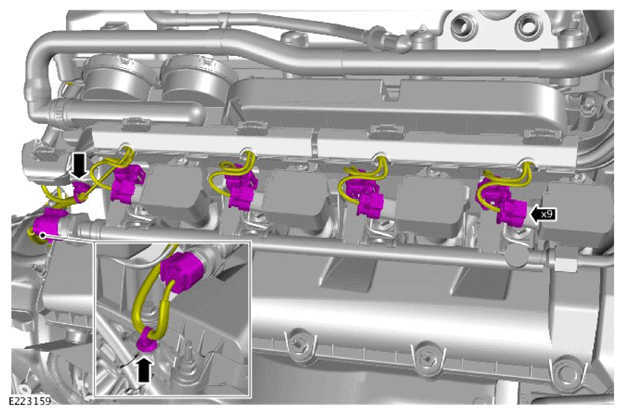

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Connect the 9 electrical connectors.
2. Secure the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

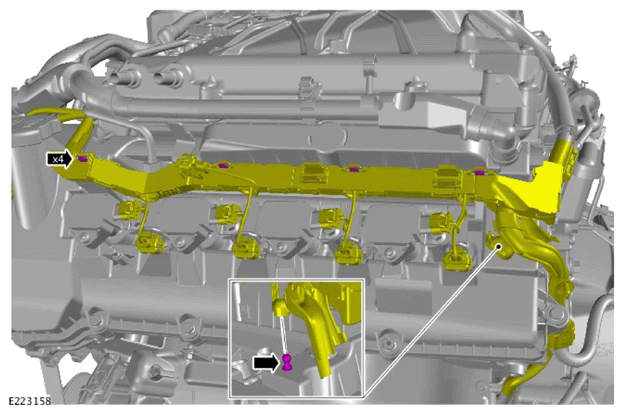

Install the wiring harness carrier.

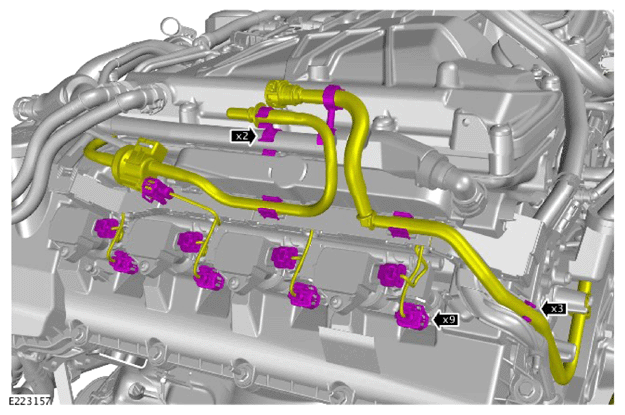

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Connect the 9 electrical connectors.
2. Secure the fuel pipes into the 3 clips.
3. Secure the 2 hose clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

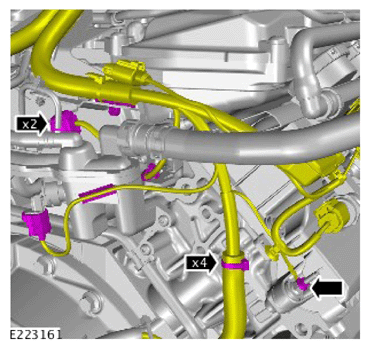

1. Connect the 4 electrical connectors.
2. Secure the 2 wiring harness clips.
3. Install and tighten the bolt to secure the ground cable.
  Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

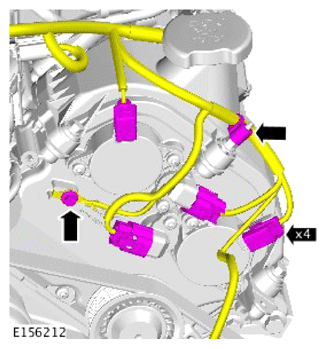

1. Connect the 4 electrical connectors.
2. Secure the wiring harness clip.
3. Install and tighten the bolt to secure the ground cable.
  Torque : 10Nm
1. Install the thermostat housing.
2. Install and tighten the bolt.
  Torque : 10Nm
3. Install the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

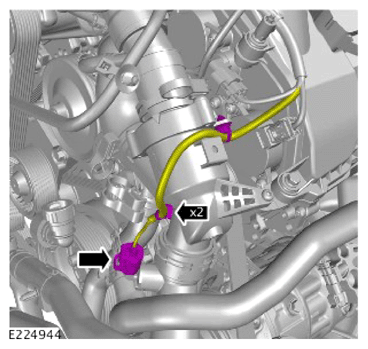

1. Connect the electrical connector.
2. Secure the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Connect the 2 electrical connectors.
2. Secure the 4 wiring harness clips.
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Noise, Vibration and Harness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

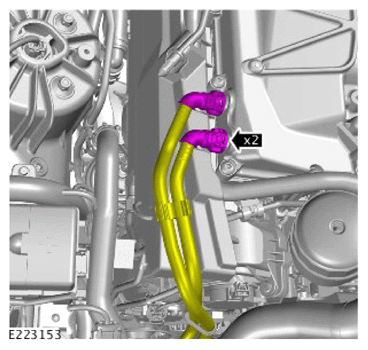

Install the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the NVH material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

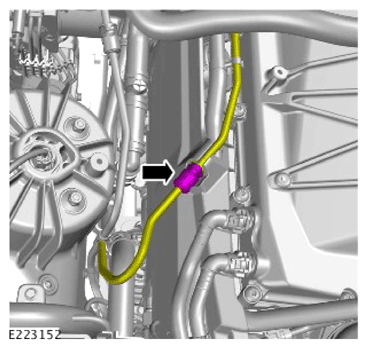

Connect the vacuum pipe.
Fill and bleed the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Install the exhaust system.
Refer to: EXHAUST SYSTEM CENTER SECTION
Install the secondary bulkhead right inner panel.
Refer to: SECONDARY BULKHEAD RIGHT INNER PANEL - PROJECT 8
Install the secondary bulkhead left inner panel.
Refer to: SECONDARY BULKHEAD LEFT INNER PANEL - PROJECT 8
Install the Air Cleaner Outlet Pipe T-Connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Install the left air filter housing.
Refer to: LEFT AIR FILTER HOUSING
Install the right air filter housing.
Refer to: RIGHT AIR FILTER HOUSING
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
