Engine Wiring Harness - INGENIUM I4 2.0L Petrol (G2046723): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Make sure that the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.
Take extra care not to damage the wiring harness clips.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
Note the position of the wiring harnesses to aid installation.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the intake air resonator.
Refer to: INTAKE AIR RESONATOR
Remove the intake manifold assembly.
Refer to: INTAKE MANIFOLD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Disconnect the 2 coolant pump harness electrical connectors.
2. Disconnect the compressor recirculation valve electrical connector.
3. Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

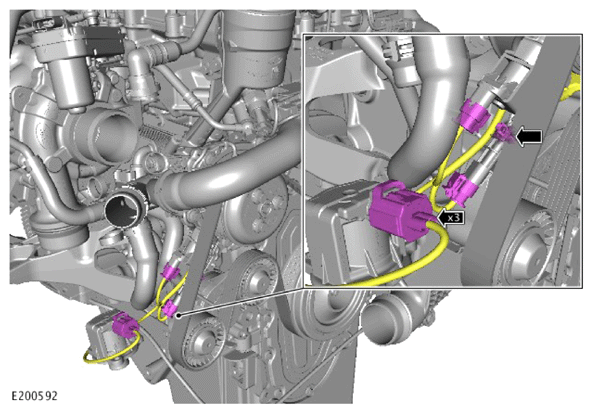

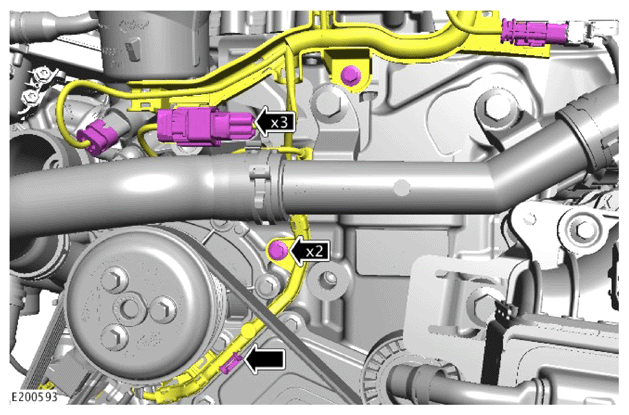

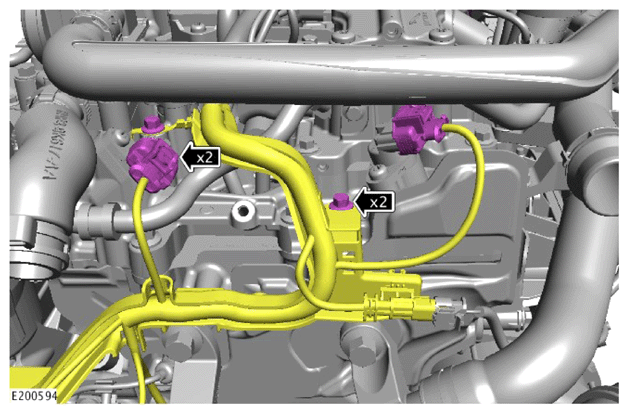

1. Disconnect the 3 electrical connectors in the area of the oil filter housing.
2. Remove the 2 bolts.
3. Release the wiring harness bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Disconnect the 2 Camshaft Position (CMP) sensor electrical connectors.
2. Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

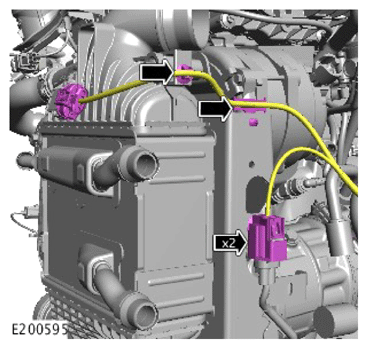

1. Disconnect the 2 electrical connectors in the area of the charge air cooler.
2. Release the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

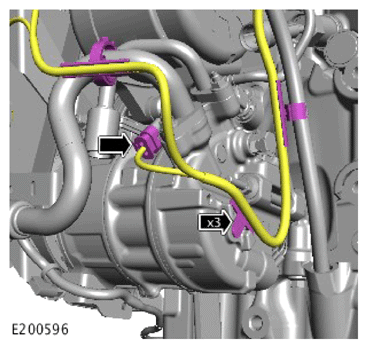

1. Disconnect the electrical connector in the area of Air Conditioning (A/C) compressor.
2. Release the 3 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Disconnect the knock sensor electrical connector.
2. Disconnect the cylinder block temperature sensor electrical connector.
3. Disconnect the thermostat electrical connector.
4. Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

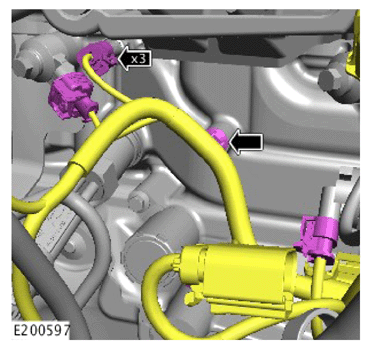

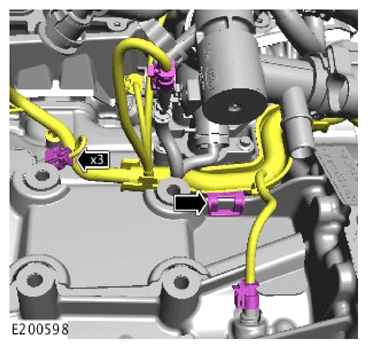

1. Disconnect the 3 electrical connectors in the area of the thermostat.
2. Release the wiring harness bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

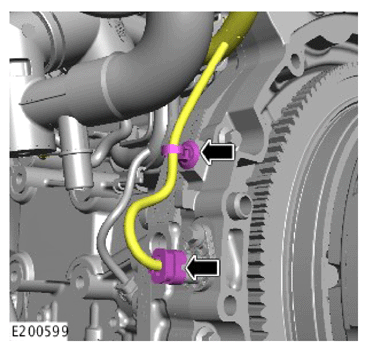

1. Disconnect the Crankshaft Position (CKP) sensor electrical connector.
2. Disconnect the wiring harness clip.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

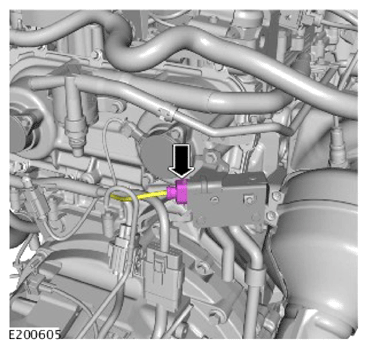

Disconnect the Gasoline Particulate Filter (GPF) pressure sensor electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

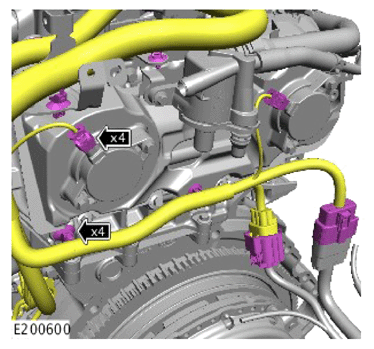

1. Disconnect the 4 electrical connectors at the rear of the engine.
2. Release the 4 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

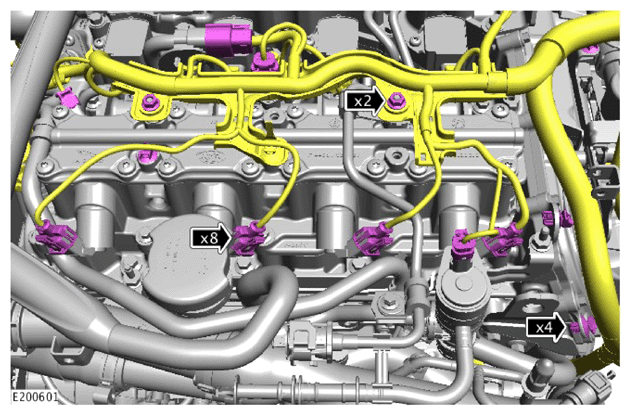

1. Disconnect the 8 electrical connectors at the top of the engine.
2. Remove the 2 bolts.
3. Release the 4 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

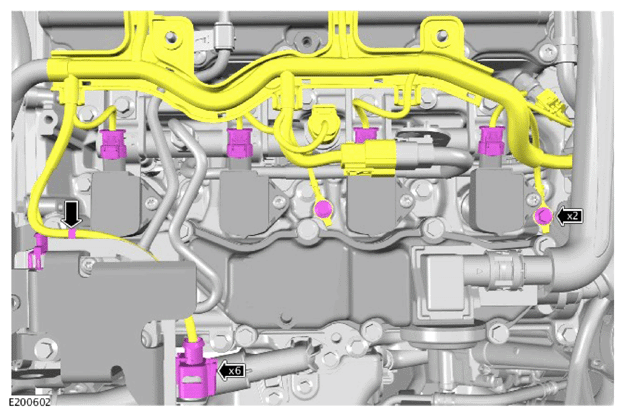

1. Disconnect the 6 electrical connectors in the area of the ignition coils.
2. Release the wiring harness clip.
3. Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

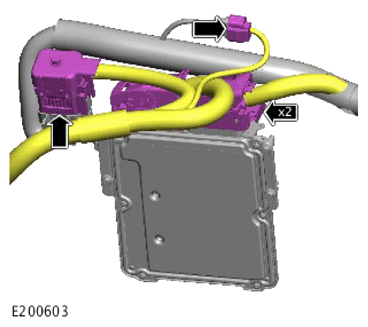

1. Disconnect the 4 engine wiring harness connectors from the Powertrain Control Module (PCM).
CAUTION: Make sure the wiring harness and electrical connectors are not damaged during this operation.

NOTE: Note the position of the wiring harnesses to aid installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

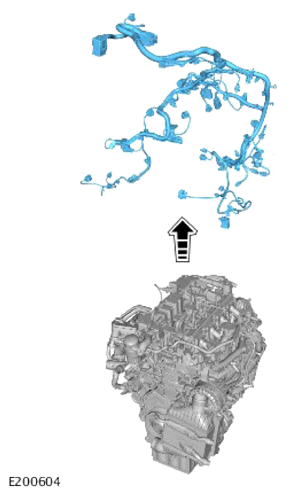

Remove the engine wiring harness.
