Engine Compartment Wiring Harness - Project 8 (G2248419): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  1. To prevent accidental deployment, you must de-energize the power in the Restraints Control Module (RCM). Wait at least 2 minutes after you disconnect the startup battery ground cable before you do any work on, of adjacent to, the Supplementary Restraint System (SRS). If you do not follow these instructions, it can cause injury or death.
  2. Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
  3. Do not connect any electrical test device or equipment to the Supplementary Restraint System (SRS) connectors.
CAUTION: Note the installed position of the component(s) prior to removal.
NOTE:
  1. This procedure contains illustrations showing certain components removed to provide extra clarity.
  2. This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. To avoid accidental deployment, wait at least 2 minutes after you disconnect the startup battery ground cable.
  3. Remove the left air filter housing.

    Refer to: LEFT AIR FILTER HOUSING

  4. Remove the right air filter housing.

    Refer to: RIGHT AIR FILTER HOUSING

  5. NOTE: This procedure must be carried out on both sides.

    Remove the front wheel arch liner.

    Refer to: FRONT WHEEL ARCH LINER - PROJECT 8

  6. Remove the secondary bulkhead left inner panel.

    Refer to: SECONDARY BULKHEAD LEFT INNER PANEL - PROJECT 8

  7. Remove the secondary bulkhead right inner panel.

    Refer to: SECONDARY BULKHEAD RIGHT INNER PANEL - PROJECT 8

  8. Remove the instrument panel.

    Refer to the appropriate service information

  9. NOTE: Repeat the procedure for the other side.

    Remove the A-pillar lower trim panel.

    Refer to: A-PILLAR LOWER TRIM PANEL

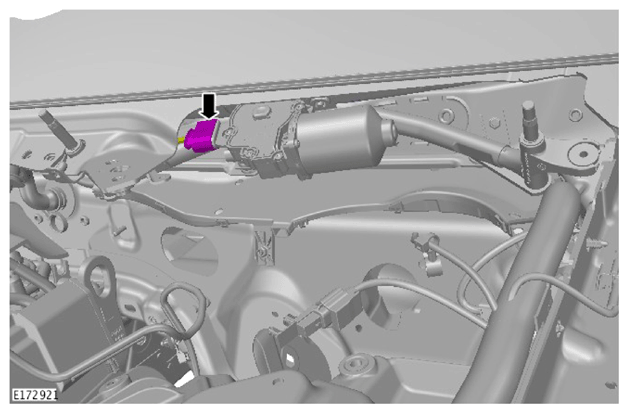

  10. G14009536Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

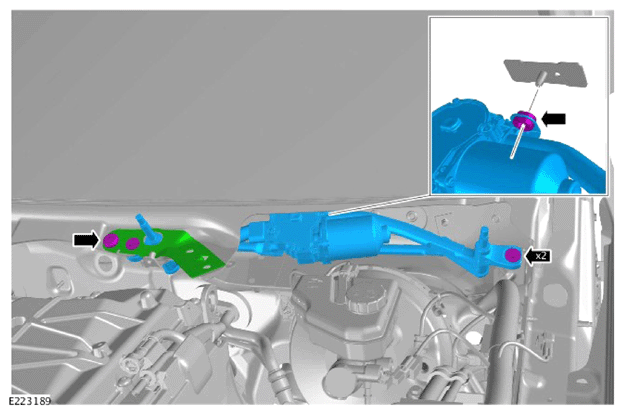

  11. G14009537Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the 3 bolts.
    2. Remove the mounting bracket.
    3. Remove the windshield wiper motor.

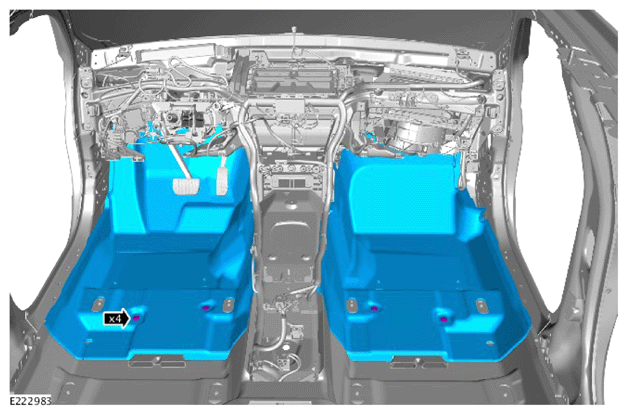

  12. G14009538Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the 4 clips.
    2. Remove the 2 front floor carpets.

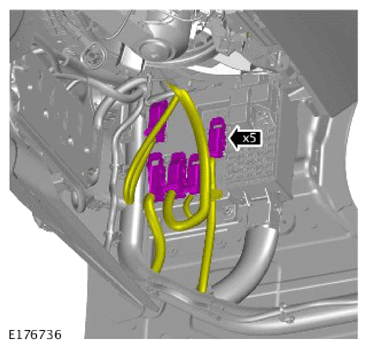

  13. G14009539Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 5 electrical connectors.

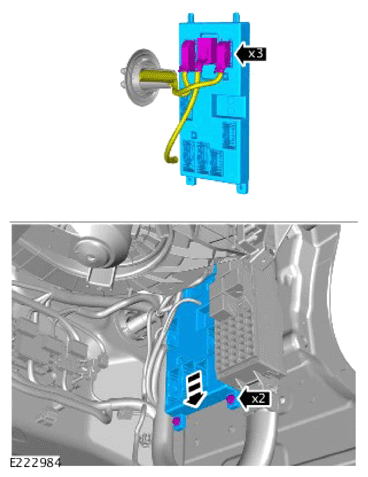

  14. G14009540Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the 2 nuts.
    2. Lower the Body Control Module/Gateway Module (BCM/GWM) assembly.
    3. Disconnect the 3 electrical connectors.
    4. Remove the (BCM/GWM) assembly.

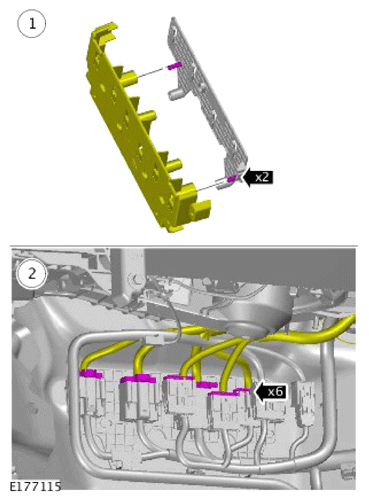

  15. G14009541Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the access cover.
    2. Disconnect the 6 electrical connectors.

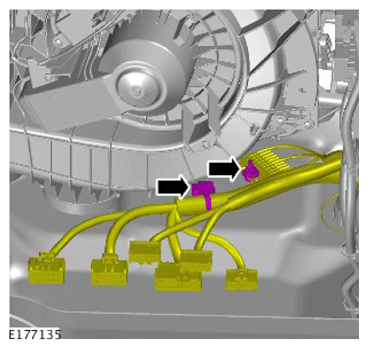

  16. G14009542Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the wiring harness clip.
    2. Remove the nut to release the ground cable.

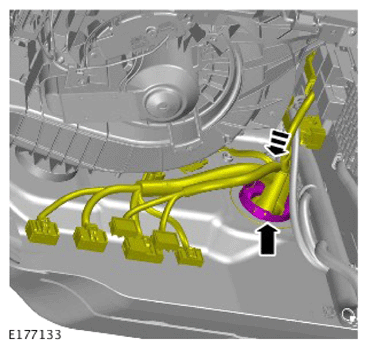

  17. G14009543Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the wiring harness retainer.
    2. Move the wiring harness through the bulkhead panel.

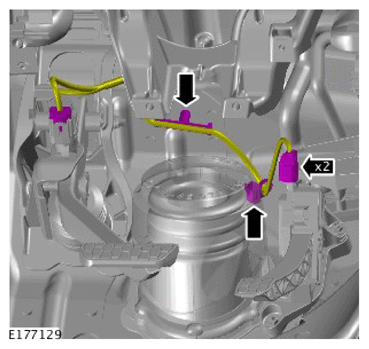

  18. G14009544Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 2 electrical connectors.
    2. Release the 2 wiring harness clips.

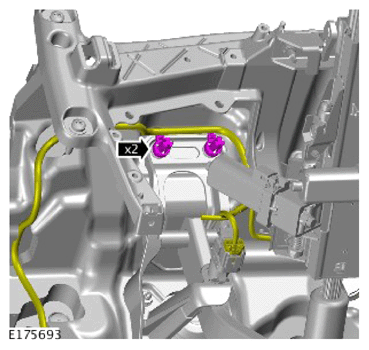

  19. G14009545Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 wiring harness clips.

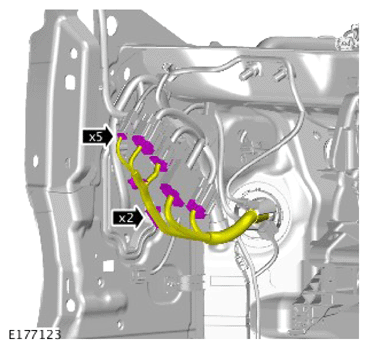

  20. G14009546Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 5 electrical connectors.
    2. Release the 2 wiring harness clips.

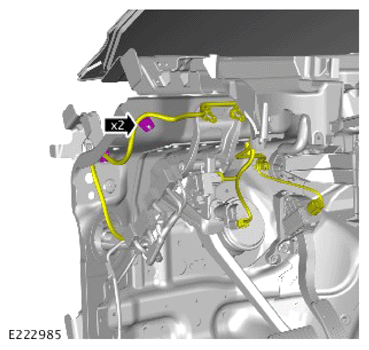

  21. G14009547Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 wiring harness clips.

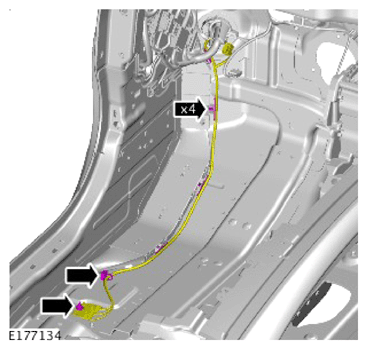

  22. G14009548Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the nut to release the ground cable.
    2. Release the 5 wiring harness clips.

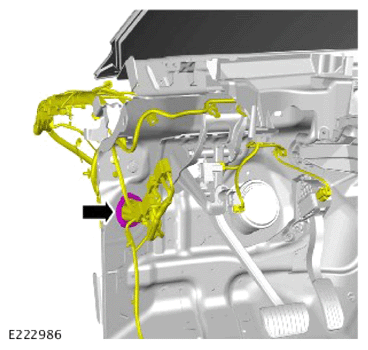

  23. G14009549Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the wiring harness retainer.
    2. Move the wiring harness through the bulkhead panel.
  24. Remove the passive sounder.

    Refer to: ANTI-THEFT ALARM HORN

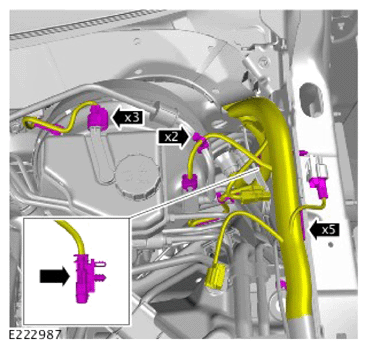

  25. G14009550Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 3 electrical connectors.
    2. Release the 7 wiring harness clips.
    3. Release the electrical connector.

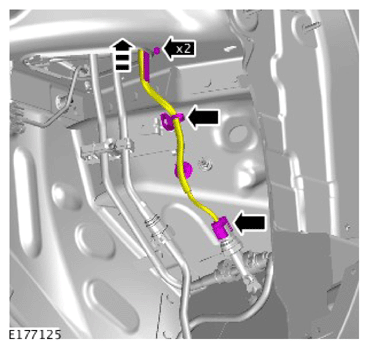

  26. G14009551Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Release the 3 wiring harness clips.

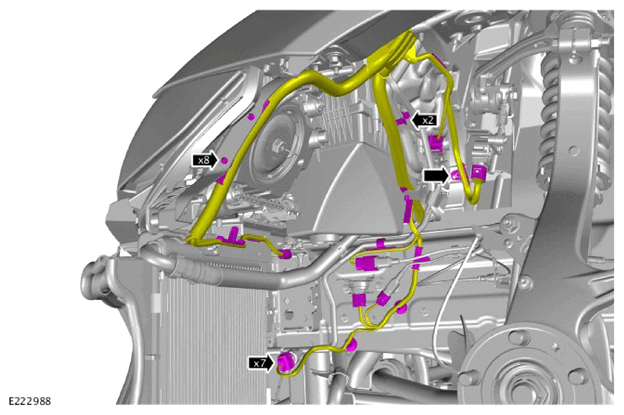

  27. G14009552Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the 11 wiring harness clips.
    2. Disconnect the 7 electrical connectors.

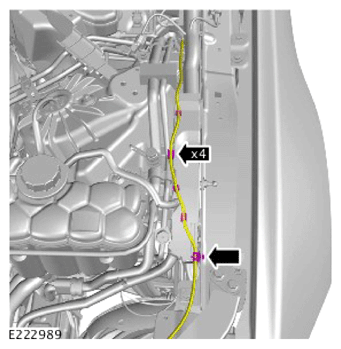

  28. G14009553Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the hood release cable from the 5 clips.

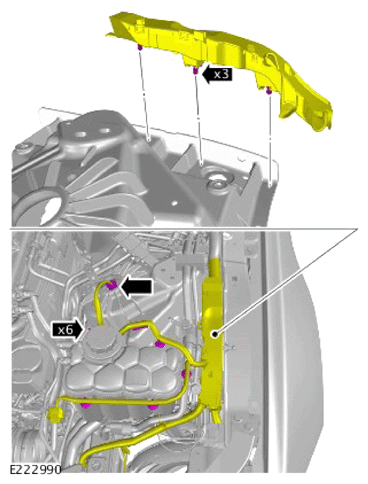

  29. G14009554Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Release the 6 wiring harness clips.
    3. Release the wiring harness carrier.

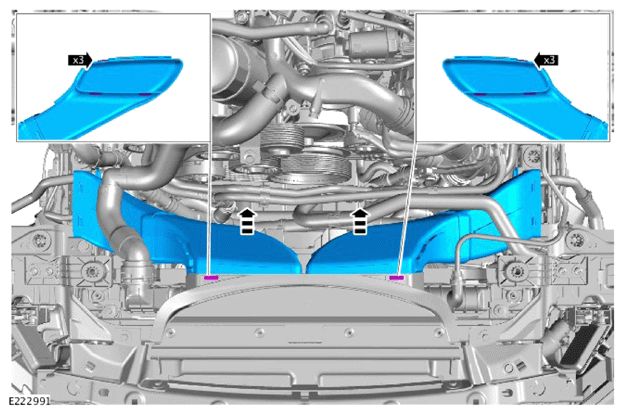

  30. G14009555Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 dirty air ducts.

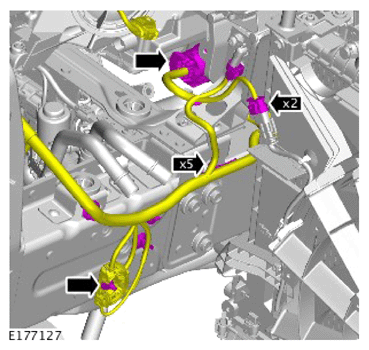

  31. G14009556Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 3 electrical connectors.
    2. Remove the nut to release the ground cable.
    3. Release the 5 wiring harness clips.

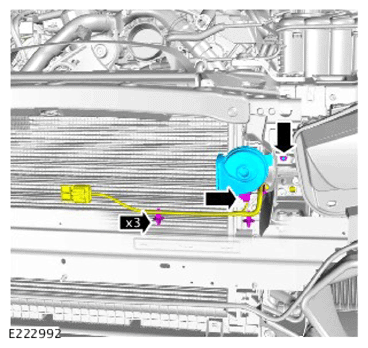

  32. G14009557Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Remove the nut.
    3. Remove the horn.
    4. Release the 3 wiring harness clips.

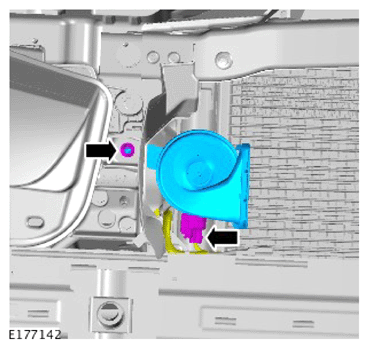

  33. G14009558Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Remove the nut.
    3. Remove the horn.

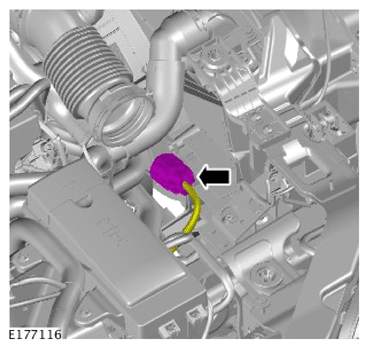

  34. G14009559Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

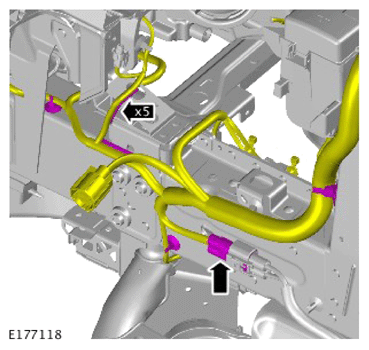

  35. G14009560Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.

      2.  Release the 5 wiring harness clips.

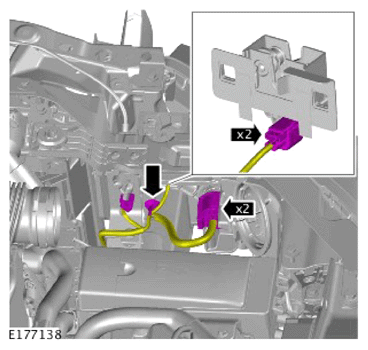

  36. G14009561Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 3 electrical connectors.
    2. Release the wiring harness clip.

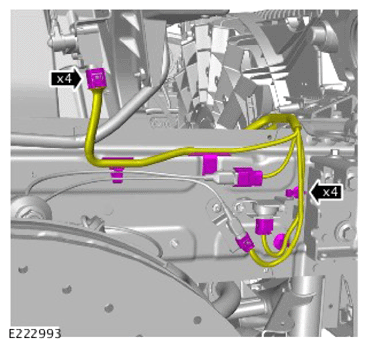

  37. G14009562Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 4 electrical connectors.
    2. Release the 4 wiring harness clips.

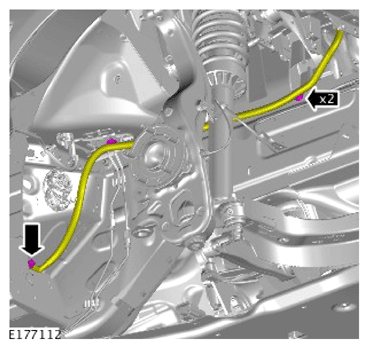

  38. G14009563Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the nut.
    2. Release the 2 wiring harness clips.

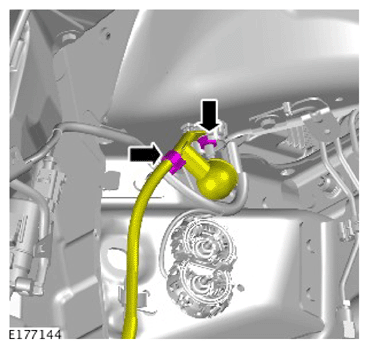

  39. G14009564Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Remove the nut.
    2. Release the harness clip.

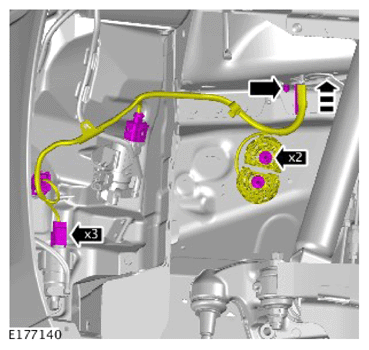

  40. G14009565Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 3 electrical connectors.
    2. Remove the 2 nuts to release the ground cables.
    3. Release the harness clip.

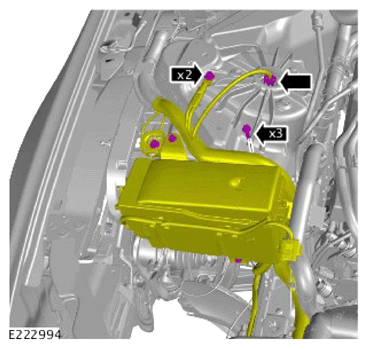

  41. G14009566Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the electrical connector.
    2. Remove the 2 bolts to release the ground cables.
    3. Remove the 3 bolts.

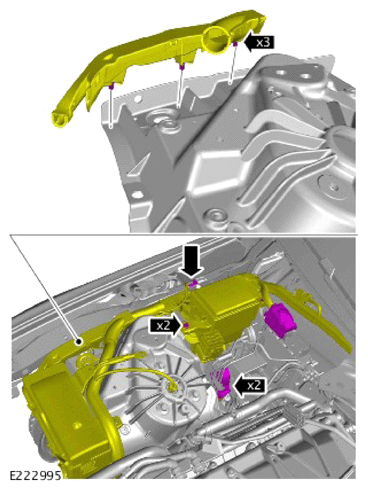

  42. G14009567Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Disconnect the 3 electrical connectors.
    2. Remove the 2 bolts.
    3. Release the wiring harness carrier.

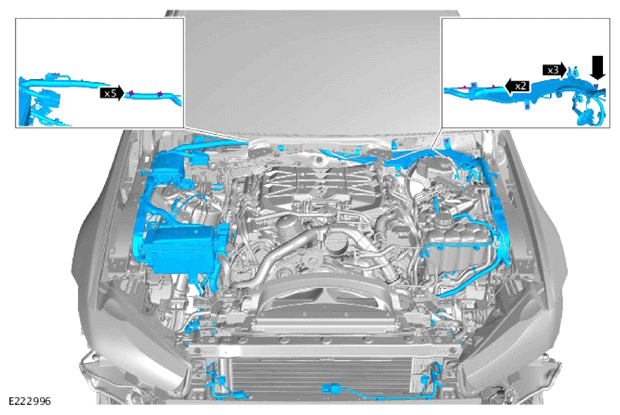

  43. G14009568Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Release the 7 wiring harness clips.
    2. Remove the 3 nuts.
    3. Release the clip.
    4. Remove the engine compartment harness.
