Engine Compartment Wiring Harness - Project 8 (G2248419): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

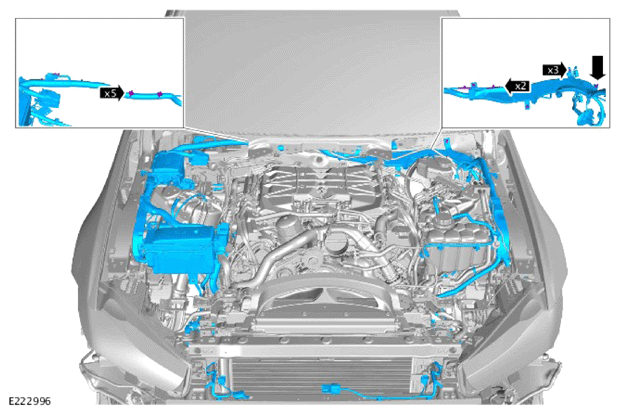

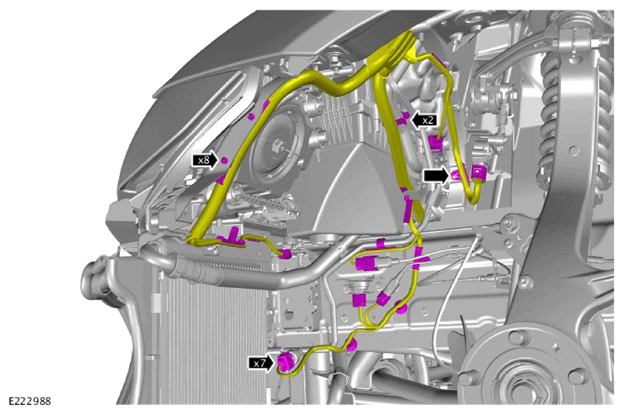

1. Install the engine compartment harness.
2. Install and tighten the 3 nuts.
  Torque : 10Nm
3. Secure the clip.
4. Secure the 7 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

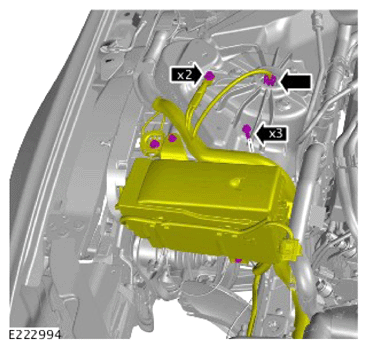

1. Install the wiring harness carrier.
2. Install and tighten the 2 bolts.
  Torque : 10Nm
3. Connect the 3 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

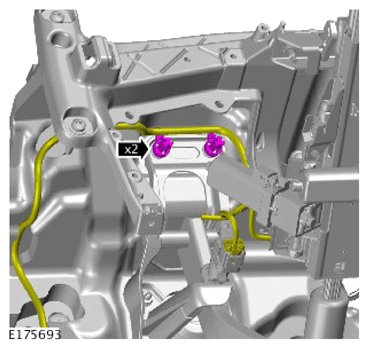

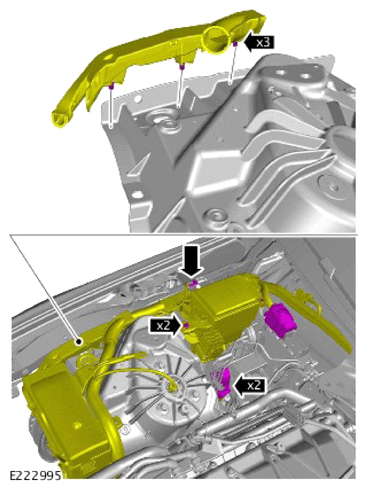

1. Install and tighten the 2 bolts to secure the ground cables.
  Torque : 10Nm
2. Remove the 3 bolts.
  Torque : 10Nm
3. Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

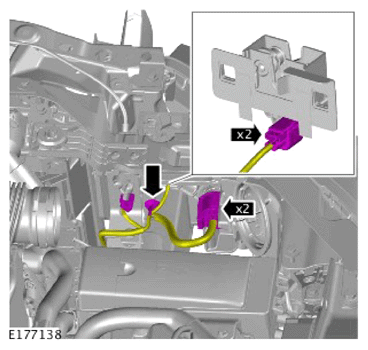

1. Secure the harness clip.
2. Install and tighten the 2 nuts to secure the ground cables.
  Torque : 10Nm
3. Connect the 3 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Secure the harness clip.
2. Install and tighten the nut.
  Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

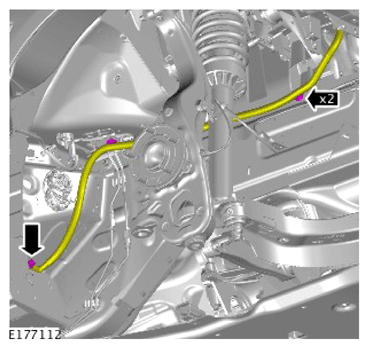

1. Secure the 2 wiring harness clips.
2. Install and tighten the nut.
  Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

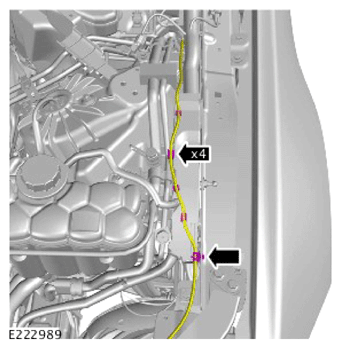

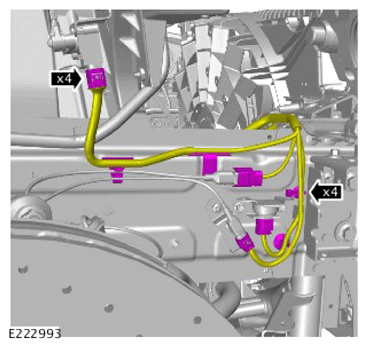

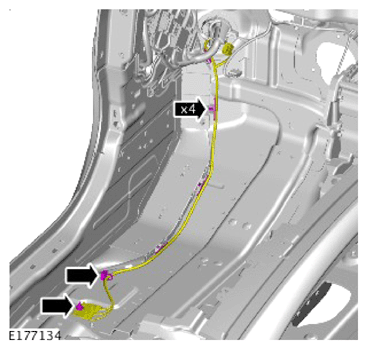

1. Secure the 4 wiring harness clips.
2. Connect the 4 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

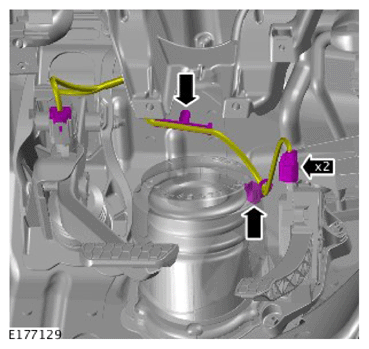

1. Secure the wiring harness clip.
2. Connect the 3 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Secure the 5 wiring harness clips.
2. Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

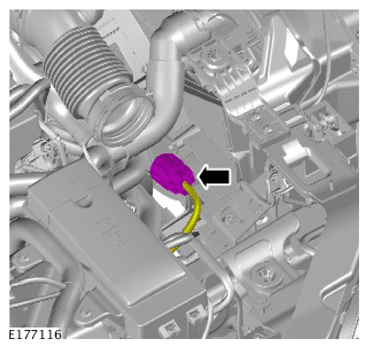

Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

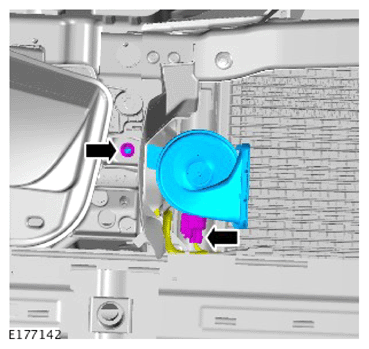

1. Install the horn.
2. Install and tighten the nut.
  Torque : 15Nm
3. Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

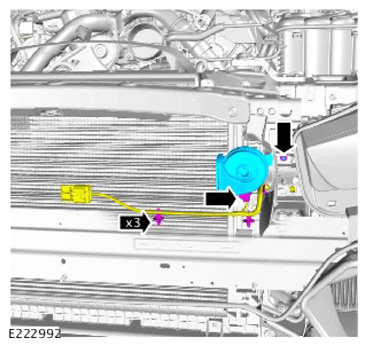

1. Secure the 3 wiring harness clips.
2. Install the horn.
3. Install and tighten the nut.
  Torque : 15Nm
4. Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

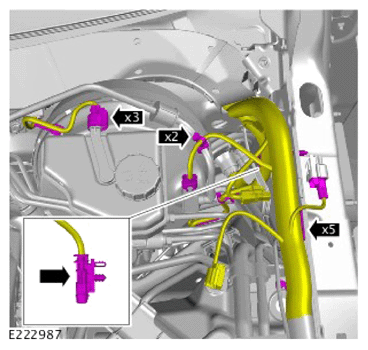

1. Secure the 5 wiring harness clips.
2. Install and tighten the nut to secure the ground cable.
  Torque : 10Nm
3. Connect the 3 electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

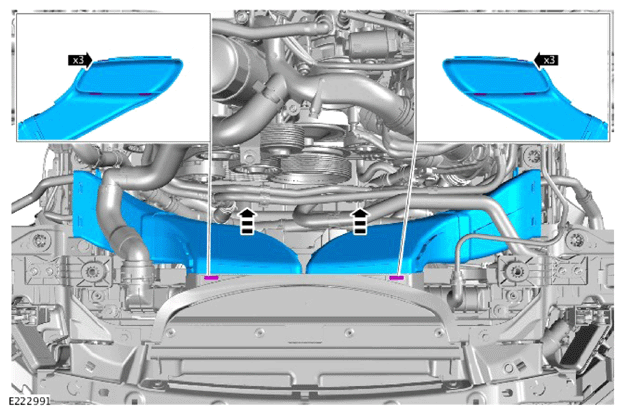

Install the 2 dirty air ducts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

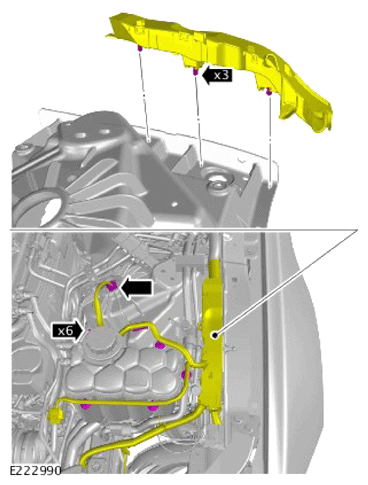

1. Install the wiring harness carrier.
2. Secure the 6 harness clips.
3. Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the hood release cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Secure the 11 wiring harness retaining clips.
2. Connect the 7 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Secure the 3 wiring harness clips.
2. Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Install the electrical connector.
2. Secure the 7 wiring harness clips.
3. Connect the 3 electrical connectors.
Install the passive sounder.
Refer to: ANTI-THEFT ALARM HORN
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

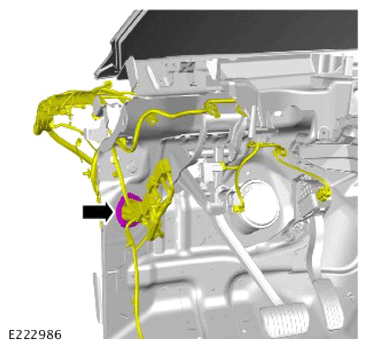

1. Move the wiring harness through the bulkhead panel.
2. Install the wiring harness retainer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

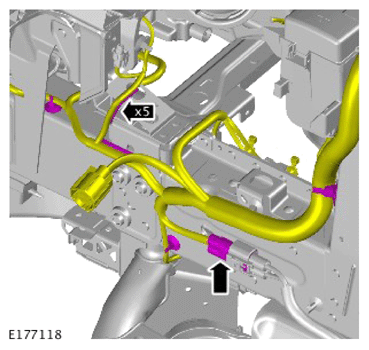

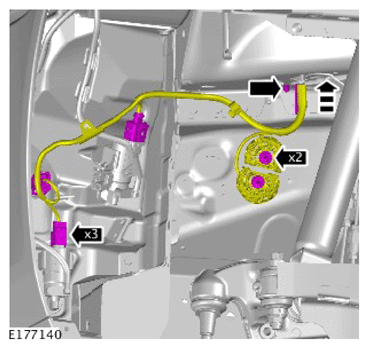

1. Secure the 5 wiring harness clips.
2. Install and tighten the nut to secure the ground cable.
  Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

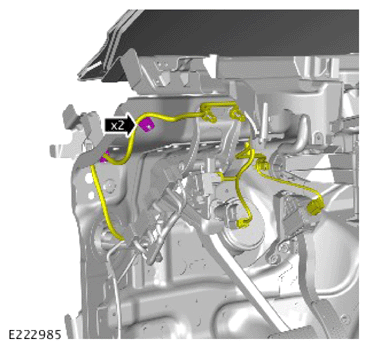

Secure the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

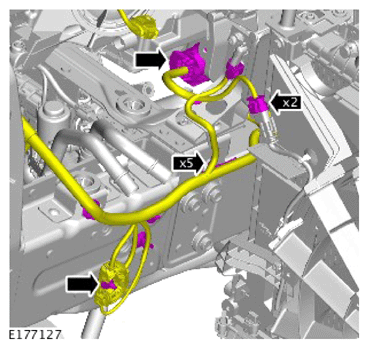

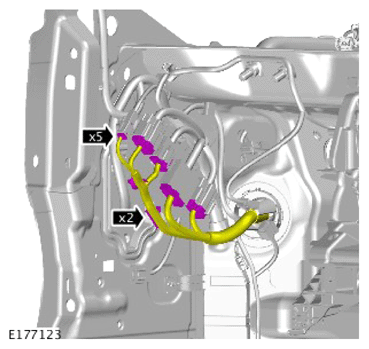

1. Secure the 2 wiring harness clips.
2. Connect the 5 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Secure the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

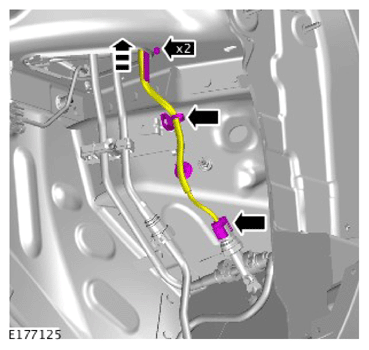

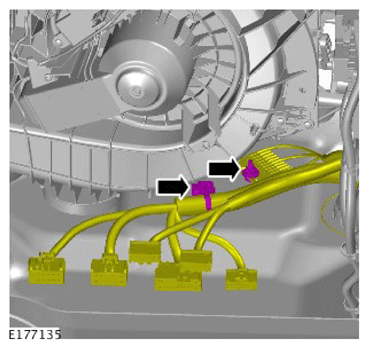

1. Secure the 2 wiring harness clips.
2. Connect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

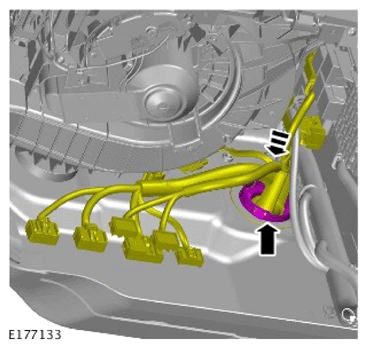

1. Move the wiring harness through the bulkhead panel.
2. Install the wiring harness retainer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

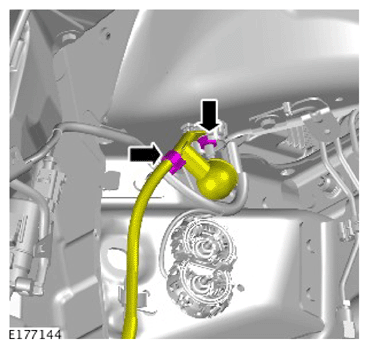

1. Secure the wiring harness clip.
2. Install and tighten the nut to secure the ground cable.
  Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

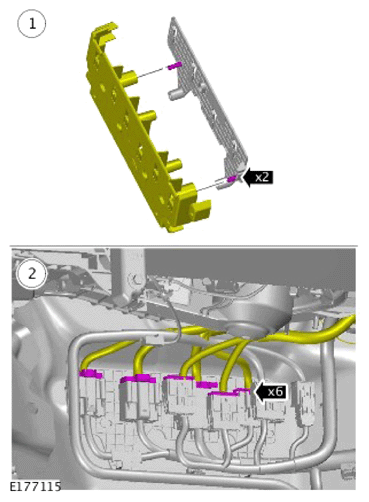

1. Connect the 6 electrical connectors.
2. Install the access cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

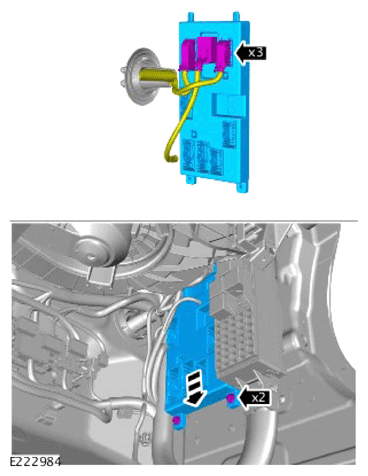

1. Connect the 3 electrical connectors.
2. Install the Body Control Module/Gateway Module (BCM/GWM) assembly.
3. Install and tighten the 2 nuts.
  Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

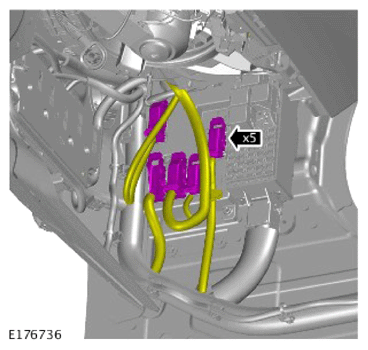

Connect the 5 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

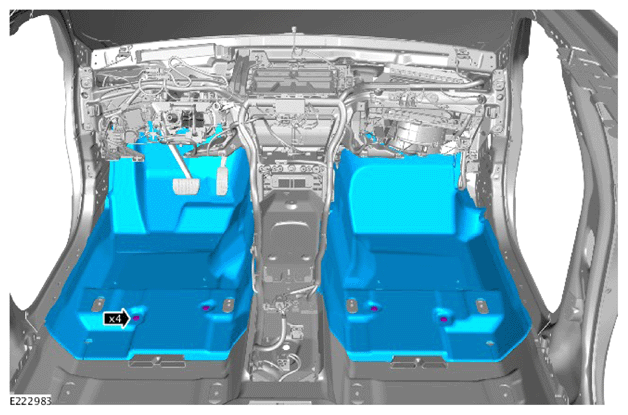

1. Install the 2 front floor carpets.
2. Install the 4 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

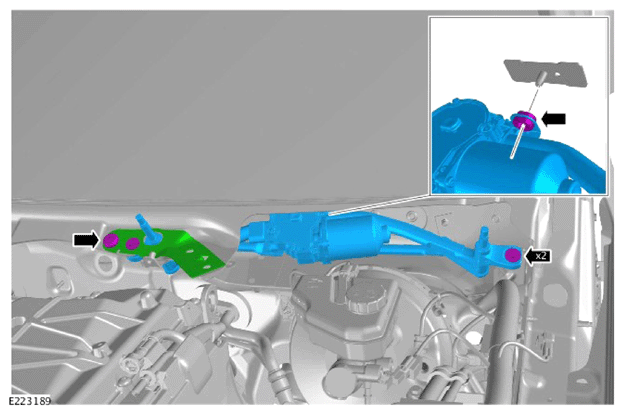

1. Install the windshield wiper motor.
2. Install the mounting bracket.
3. Install the 3 bolts.
4. Tighten the 3 bolts.
  Torque

  M8: 12Nm

  M10: 55Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

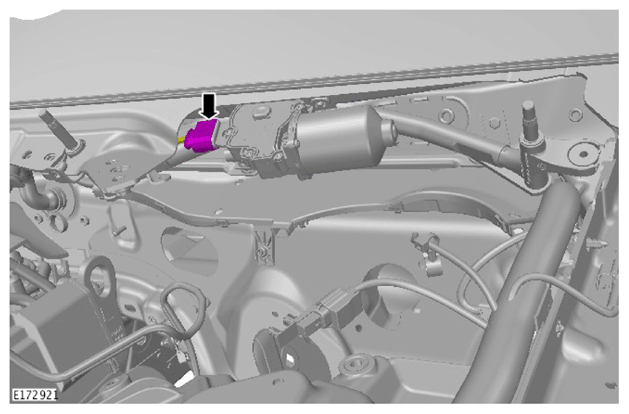

Connect the electrical connector.
NOTE: Repeat the procedure for the other side.

Install the A-pillar lower trim panel.

Refer to: A-PILLAR LOWER TRIM PANEL
Install the instrument panel.
Refer to the appropriate service information
Install the secondary bulkhead right inner panel.
Refer to: SECONDARY BULKHEAD RIGHT INNER PANEL - PROJECT 8
Install the secondary bulkhead left inner panel.
Refer to: SECONDARY BULKHEAD LEFT INNER PANEL - PROJECT 8
NOTE: This procedure must be carried out on both sides.

Install the front wheel arch liner.

Refer to: FRONT WHEEL ARCH LINER - PROJECT 8
Install the right air filter housing.
Refer to: RIGHT AIR FILTER HOUSING
Install the left air filter housing.
Refer to: LEFT AIR FILTER HOUSING
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
