Engine Compartment Wiring Harness (G1862931): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

The following step(s) applies to:

All vehicles

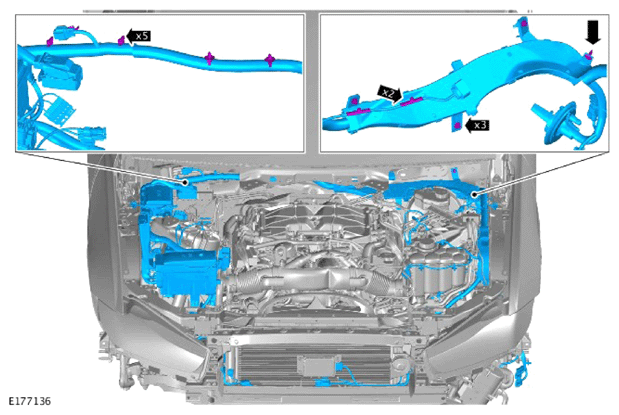

  1. G14009495Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the engine compartment wiring harness.
    2. Install and tighten the 3 bolts.

      Torque  : 10Nm

    3. Install the 8 clips.

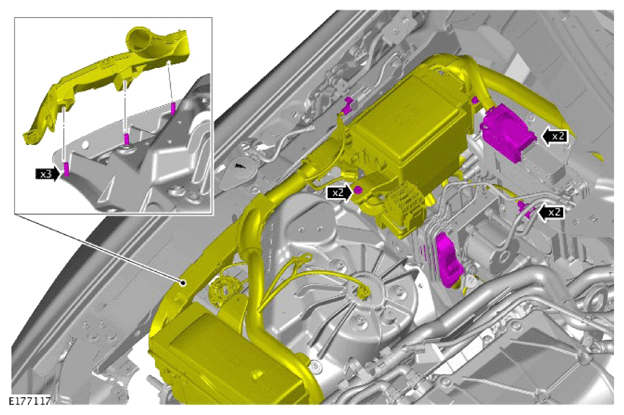

  2. G14009496Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the 2 bolts.

      Torque  : 10Nm

    2. Connect the 4 electrical connectors.
    3. Install the bracket to the 3 studs.

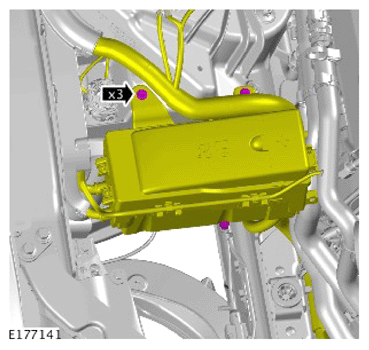

  3. G14009497Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 3 bolts.

    Torque  : 10Nm

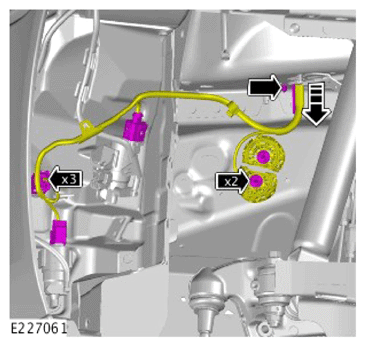

  4. G14009498Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the 2 nuts.

      Torque  : 10Nm

    2. Connect the 3 electrical connectors.
    3. Install the clip.

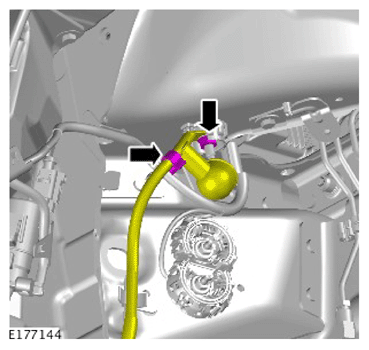

  5. G14009499Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the wiring harness to the stud.
    2. Install and tighten the nut.

      Torque  : 10Nm

    3. Reposition the cover.
    4. Install the wiring harness to the clip.

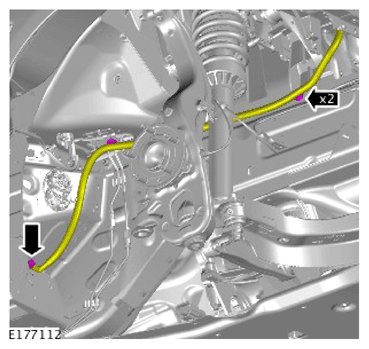

  6. G14009500Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the wiring harness to the stud.
    2. Install and tighten the nut.

      Torque  : 10Nm

    3. Connect the 2 electrical connectors.

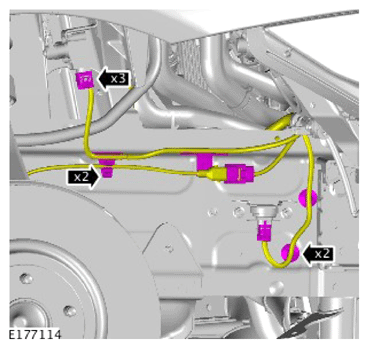

  7. G14009501Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 3 electrical connectors.
    2. Install the wiring harness to the 2 clips.
    3. Secure the 2 clips.

    The following step(s) applies to:

    Vehicles with diesel engine

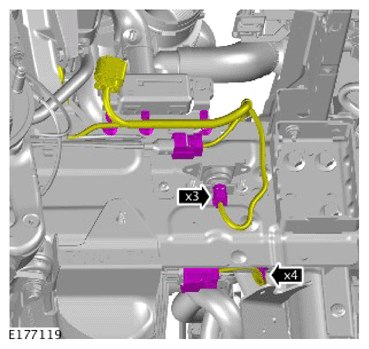

  8. G14009502Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 3 electrical connectors.
    2. Install the 4 clips.

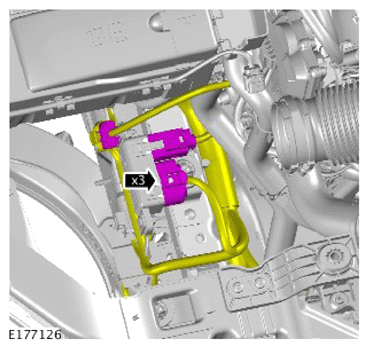

  9. G14009503Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the 3 electrical connectors.

    The following step(s) applies to:

    All vehicles

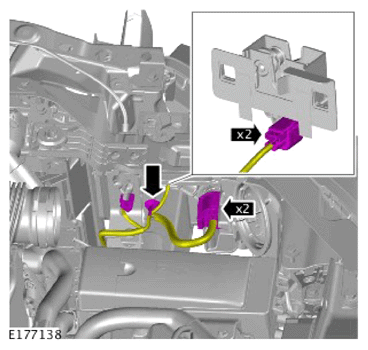

  10. G14009504Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 4 electrical connectors.
    2. Install the clip.

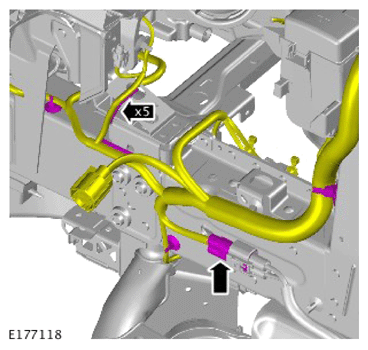

  11. G14009505Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the 5 clips.

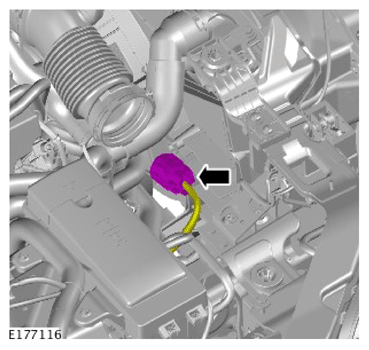

  12. G14009506Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the electrical connector.

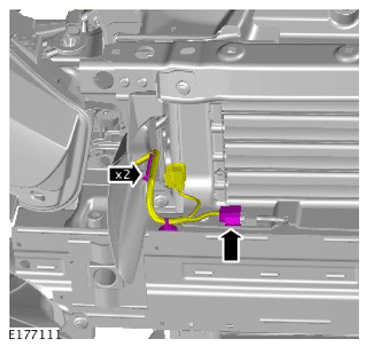

  13. NOTE: If equipped.
    G14009507Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the 2 clips.

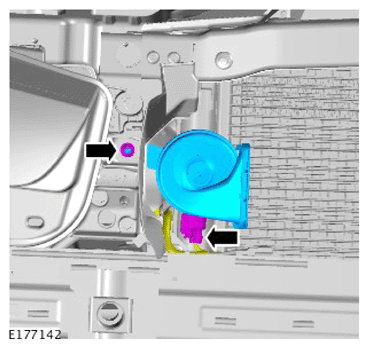

  14. G14009508Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the right side horn and the nut.

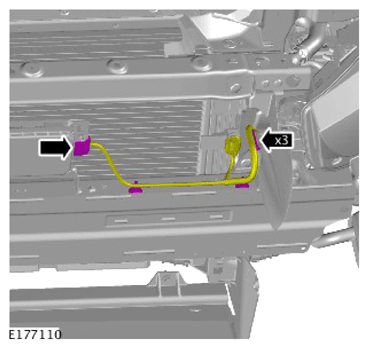

  15. G14009509Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the 3 clips.

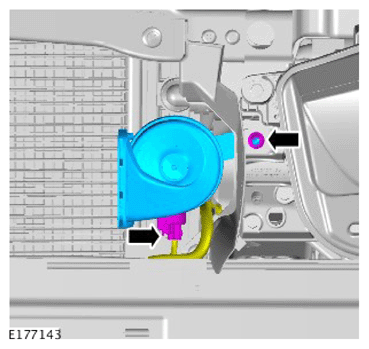

  16. G14009510Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the left horn and the nut.
    2. Connect the electrical connector.

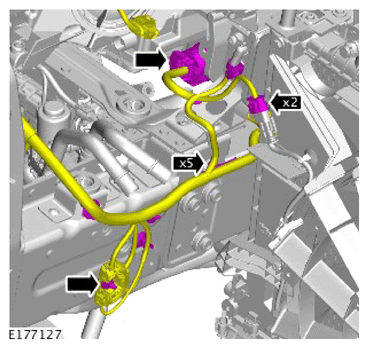

  17. G14009511Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 3 electrical connectors.
    2. Install the 5 clips.
    3. Install and tighten the bolt.

      Torque  : 10Nm

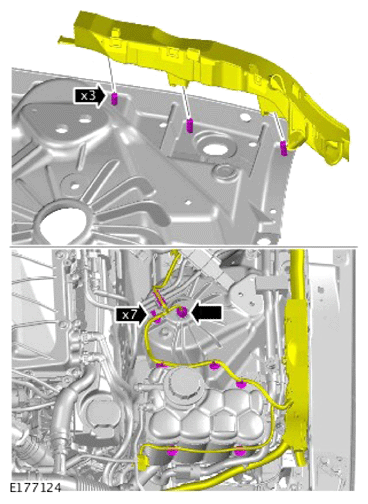

  18. G14009512Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the bracket to the 3 studs.
    2. Connect the electrical connector.
    3. Install the 7 clips.

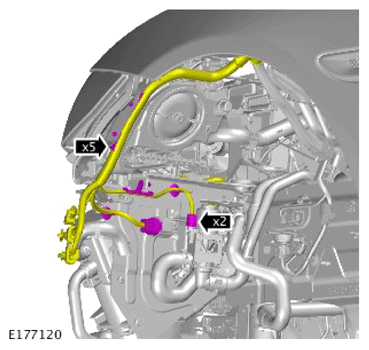

  19. G14009513Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 2 electrical connectors.
    2. Install the 5 clips.

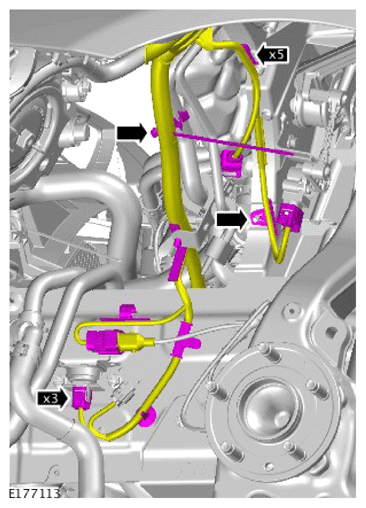

  20. G14009514Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 3 electrical connectors.
    2. Install the 7 clips.
  21. G14009515Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Reposition the wiring harness as illustrated.
    2. Connect the electrical connector.
    3. Install the 3 clips.

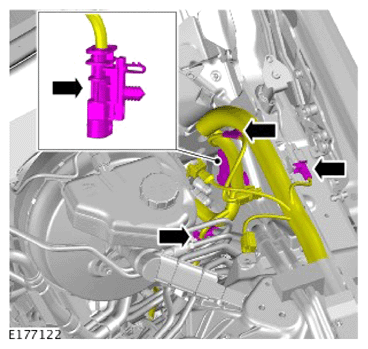

  22. G14009516Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the electrical connector.
    2. Install the 3 clips.
  23. Install the anti-theft passive sounder.

    Refer to: ANTI-THEFT ALARM HORN

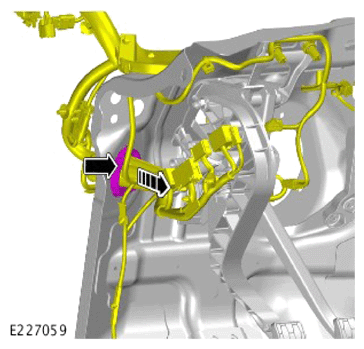

  24. G14009517Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the grommet.

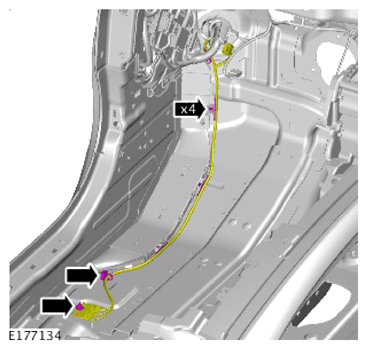

  25. G14009518Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install and tighten the bolt.

      Torque  : 10Nm

    2. Install the 5 clips.

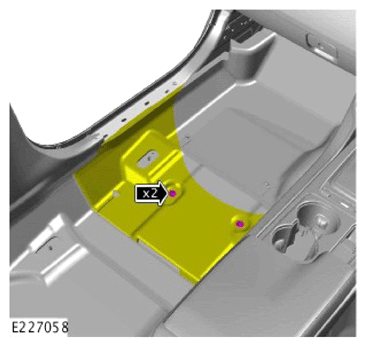

  26. G14009519Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Reposition the carpet as illustrated.
    2. Install the 2 clips.

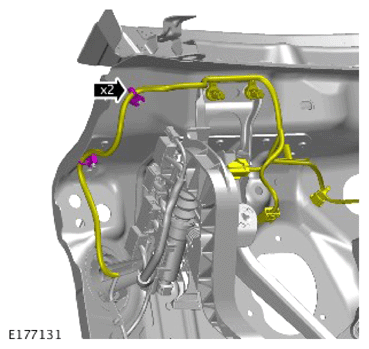

  27. G14009520Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 clips.

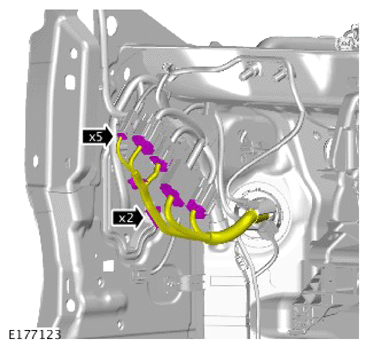

  28. G14009521Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 5 electrical connectors.
    2. Install the 2 clips.

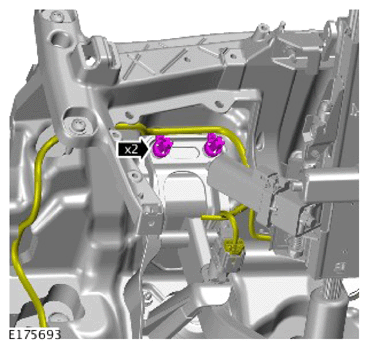

  29. G14009522Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 clips.

    The following step(s) applies to:

    Vehicles with automatic transmission

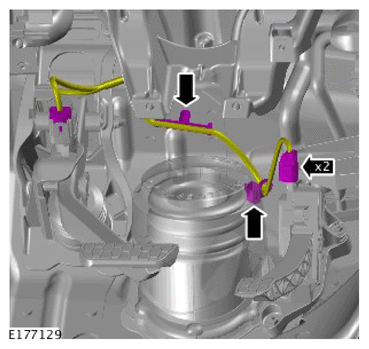

  30. G14009523Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 2 electrical connectors.
    2. Install the 2 clips.

    The following step(s) applies to:

    Vehicles with manual transmission

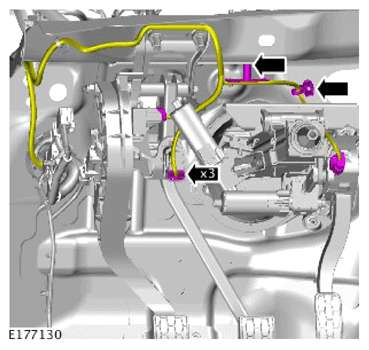

  31. G14009524Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 3 electrical connectors.
    2. Install the 2 clips.

    The following step(s) applies to:

    All vehicles

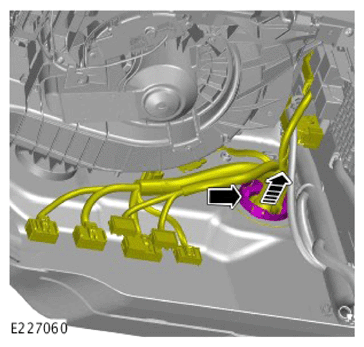

  32. G14009525Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Reposition the wiring harness as illustrated.
    2. Install the grommet.

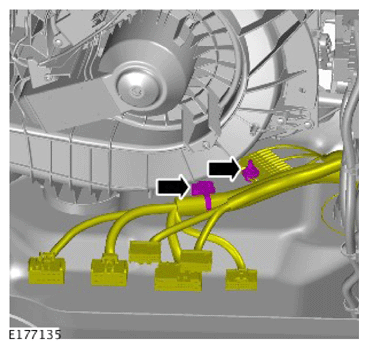

  33. G14009526Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the clip.
    2. Install and tighten the nut.

      Torque  : 10Nm

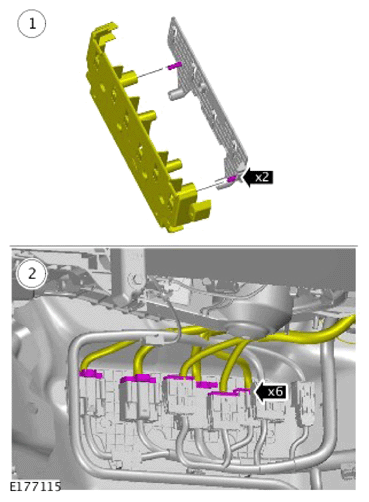

  34. G14009527Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 6 electrical connectors.
    2. Install the cover.

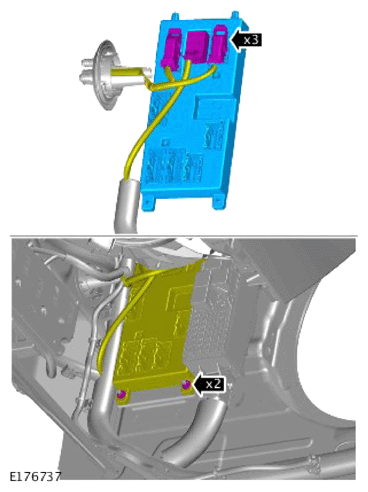

  35. G14009528Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Connect the 3 electrical connectors.
    2. Install and tighten the 2 nuts.

      Torque  : 10Nm

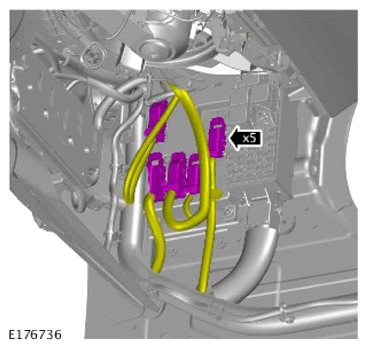

  36. G14009529Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the 5 electrical connectors.

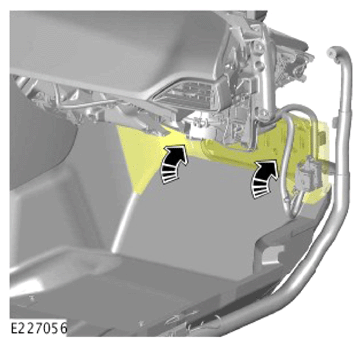

  37. G14009530Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the carpet as illustrated.

  38. NOTE: Repeat this step for the other side.

    Install the front wheel arch liner.

    Refer to: RADIATOR SPLASH SHIELD

  39. Install the instrument panel cross-car beam.

    Refer to the appropriate service information

  40. Install the windshield wiper motor.

    Refer to: WINDSHIELD WIPER MOTOR - LHD

    Refer to: WINDSHIELD WIPER MOTOR - RHD

  41. Install the air cleaner.

    Refer to: AIR CLEANER - INGENIUM I4 2.0L Diesel

    Refer to: LEFT AIR CLEANER - V6 S/C 3.0L Petrol

    Refer to: RIGHT AIR CLEANER - V6 S/C 3.0L Petrol

    Refer to: AIR CLEANER - INGENIUM I4 2.0L Petrol

  42. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  43. Configure the component using Jaguar Land Rover approved diagnostic equipment.

    General Equipment: Jaguar Land Rover approved diagnostic equipment
