Visible Wiring Harness Overlays

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

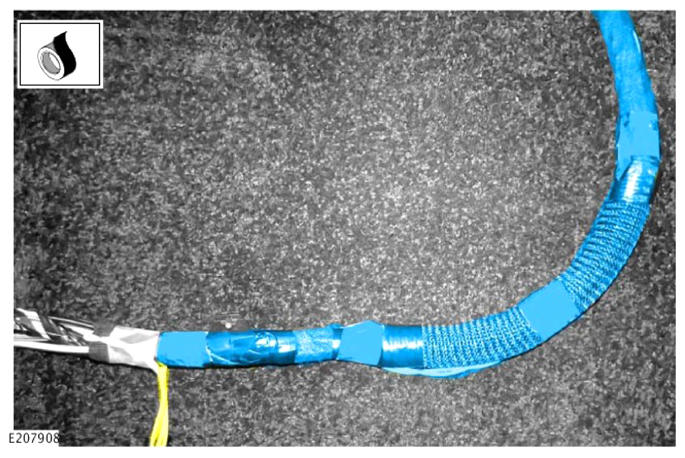

Where wiring harness overlays are visible, with all components in their installed condition, the overlay harness must be fully taped to the original wiring harness, with no gaps in the tape binding. Example illustration below:

G14009301Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
