Most Harness Repair Components And Tools

List of Parts

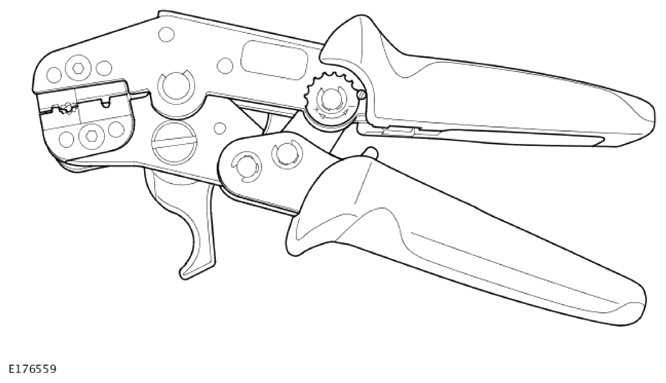

Fiber Optic Conductor Stripper

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

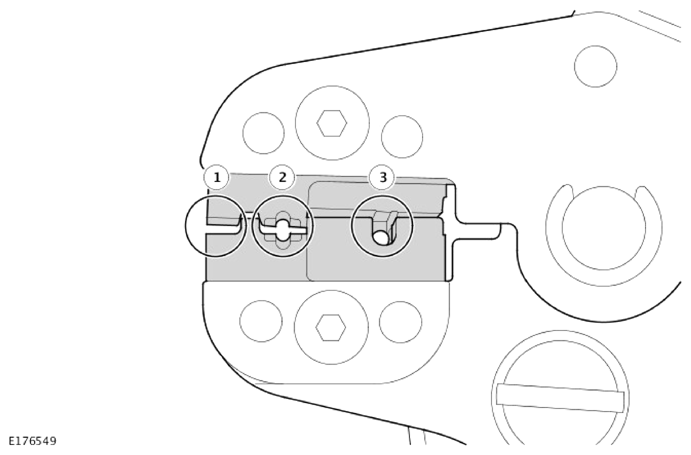

Fiber Optic Conductor Stripper Jaw Positions

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

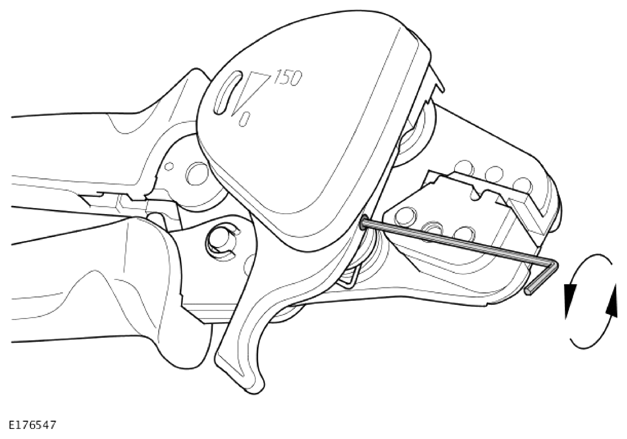

Fiber Optic Core Cutter Locking Screw

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The fiber optic core cutter has a locking screw to protect the cutter wheel when in transit or not in use. A hexagonal key is supplied in the MOST repair kit to release the locking screw.

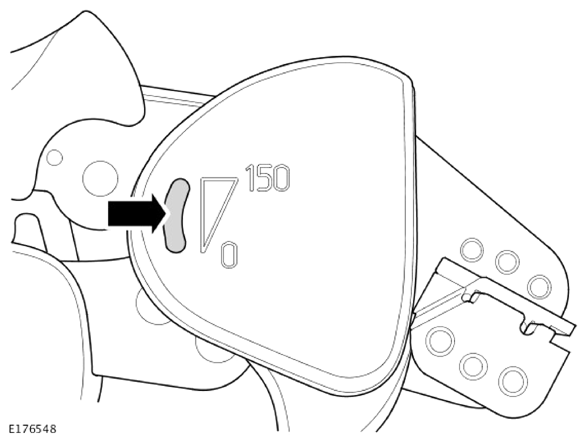

Fiber Optic Core Cutter Remaining Cut Indicator

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The fiber optic core cutter can be used for approximately 1260 cuts. The indicator line on the remaining cut indicator window only becomes visible when the fiber optic core cutter has 150 cuts or below available.

Before using the fiber optic conductor core cutter, make sure it has enough cuts remaining to complete the repair process by viewing the remaining cut indicator.

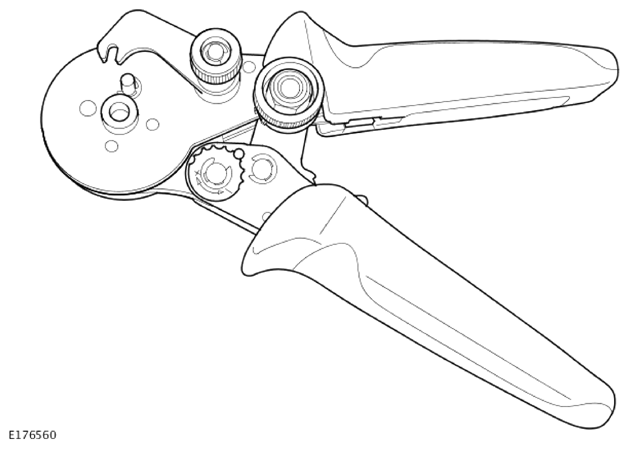

Fiber Optic Conductor Contact Crimping Pliers

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A small amount of effort is required to operate the fiber optic conductor contact crimping pliers and secure a fiber optic conductor contact to the fiber optic conductor core.

The new fiber optic conductor contact is placed into the cramping mechanism in the head of the pliers. The locking arm is repositioned to hold the conductor contact securely in position. The locking arm must locate on to the retaining pin.

The prepared end of the fiber optic core is then inserted into the new conductor contact.

The fiber optic core and conductor contact must be pushed and held against the spring pressure in the cramping mechanism. The grips of the fiber optic conductor contact crimping pliers are then be closed, cramping the conductor contact to the conductor core.

The cramping mechanism inside the head applies the appropriate pressure to the conductor contact at 4 points. This makes a secure contact and does not damage the conductor core.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

When the new conductor contact has been cramped to the fiber optic core do the following. Make sure the fiber optic core end sits 0.01 mm (0.00039 inch) to 0.1 mm (0.0039 inch) below the height of the conductor contact end.
