Wheel And Tire - Project 8 (G2247804): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The locking wheel nuts can be removed and installed using the special adapter only, provided in the tool kit.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains illustrations for left side components, right side components are similar.
  • A code number is stamped onto the underside of the adapter. This number should be recorded in the Service Portfolio supplied with the vehicle literature pack. If a replacement adapter is required, this code number will be provided.
  • Not all vehicles have locking wheel nuts as standard parts.
  1. NOTE: Take extra care there are 2 versions of the wheel locking system available.
    • The locking wheel nut system used on Jaguar XE (X760) has been specifically engineered to meet stringent anti-theft standards.
    • Both the locking anti-theft nut and the locking anti-theft key have been purposely designed to be intolerant to abuse. This strategy should not be confused with the components being weak or sub-standard.
    • The anti-theft key has a hardened steel insert that is designed to collapse and render the key useless if it is forced onto the wrong anti-theft nut or is in the wrong orientation.
    • The anti-theft nut has a separate decorative cap, designed to spin and render the nut useless unless the correct key is fully engaged onto the nut body before torque is applied.
    • The most common reasons for the locking wheel nut system to fail are:
    • Ratchet, impact or percussion type power tools being used to install or remove the nut.
    • Attempted theft.
    • Over tightening.
    • The wrong key being hammered onto the locking nut.
    • The key not being fully engaged on the nut prior to installation or removal.
    • The key not being correctly aligned on the nut prior to installation or removal.
    • Presenting the key to the nut, with the key placed in an already spinning power tool.

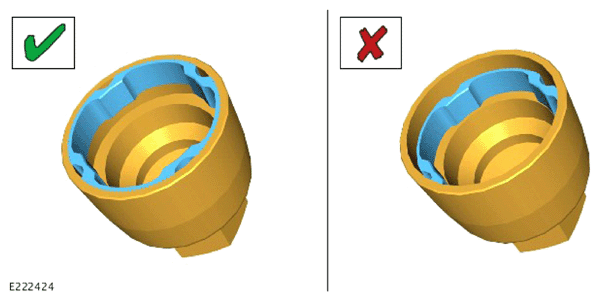

  3. G13902468Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Check the locking wheel nut key for damage.

  4. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

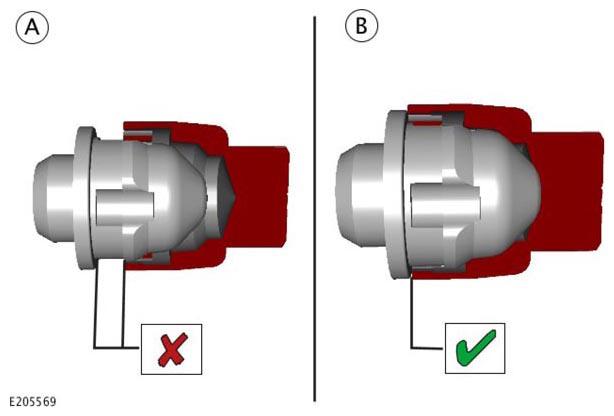

  5. G11305662Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the locking wheel nut key by hand and check correct fitment. The locking wheel nut key must be fully located on the wheel nut before releasing, as shown in section B of the illustration.

  6. WARNING: The wheel and tire assembly will be heavy.
    G13995884Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
