Wheel And Tire - Project 8 (G2247804): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The wheel and tire assembly will be heavy.

CAUTION: Install the wheel nuts finger tight before final tightening.

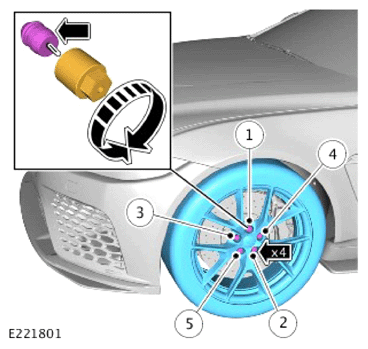

Fig 1: Wheel Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the wheel and tire.
- Install the locking wheel nut, if equipped.
- Install the 4 nuts.
- Tighten the nuts in the indicated sequence.
  Torque

  Stage 1: 4Nm

  Stage 2: 70Nm

  Stage 3: 133Nm
