Wheel And Tire (G1817289): Installation
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
-
WARNING: The wheel and tire assembly will be heavy.CAUTION:
- Using power tools may result in damage to the wheel nuts. Make sure that the wheel nuts are installed using hand tools only.
- Apply a small amount of grease to the bore and spigot areas of the wheel before installation. Make sure that the grease does not come into contact with the vehicle brake components and the wheel stud threads. Failure to follow these instructions may result in damage to the vehicle.
NOTE: This procedure contains illustrations for right side components, left side components are similar.- Install the wheel and tire.
-
CAUTION: Install the wheel nuts finger tight before final tightening.

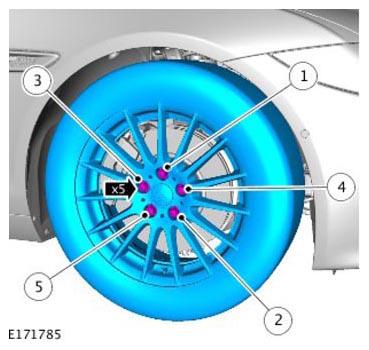

Install and tighten the nuts in the sequence shown.
Torque
Stage 1: 4Nm
Stage 2: 70Nm
Stage 3: 125Nm
