Tire Pressure Sensor (G1821591): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Make sure that the seal is correctly located.
    • Make sure that new components are installed.

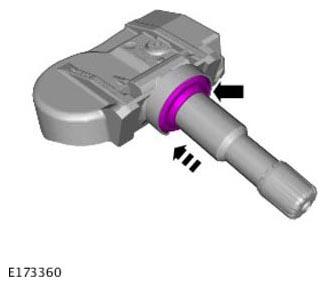

    G11305668Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the washer and seal, making sure the valve remains pressed fully onto its seat.

  2. WARNING:
    • Make sure that any corrosion or dirt is removed from the mating surfaces.
    • Make sure that a new tire valve, valve core, seal, washer, cap and retaining nut is installed.
    CAUTION:
    • Use lint free cloth.
    • Only use moderate force when installing the sensor.
    NOTE: Only tighten the nut finger tight at this stage.

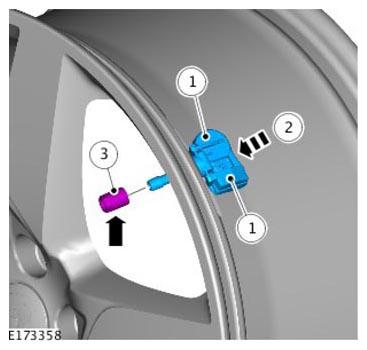

    G11305669Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 8Nm

  3. Install the tire and balance the wheel.
  4. Refer to: WHEEL AND TIRE
  5. If a new component has been installed, configure using Jaguar approved diagnostic equipment.
