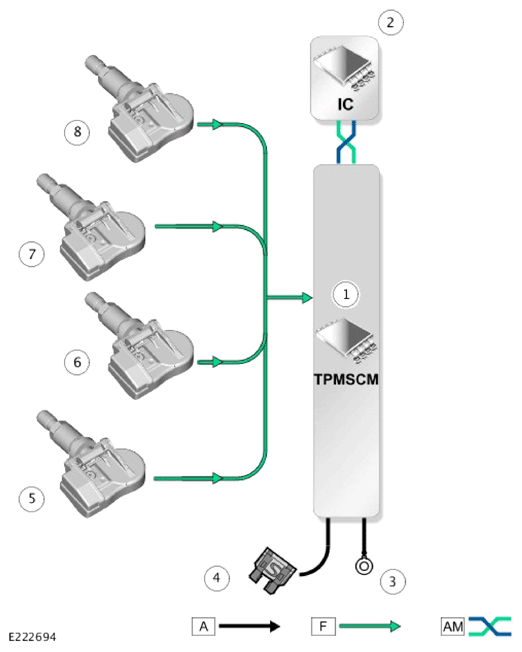

Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: F = RADIO FREQUENCY (RF) TRANSMISSION.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Tire Pressure Monitoring System Control Module (TPMSCM) |
| 2 | Instrument Cluster (IC) |
| 3 | Ground |
| 4 | Power supply |
| 5 | Front left Tire Pressure Monitoring System (TPMS) sensor |
| 6 | Front right TPMS sensor |
| 7 | Rear left TPMS sensor |
| 8 | Rear right TPMS sensor |
