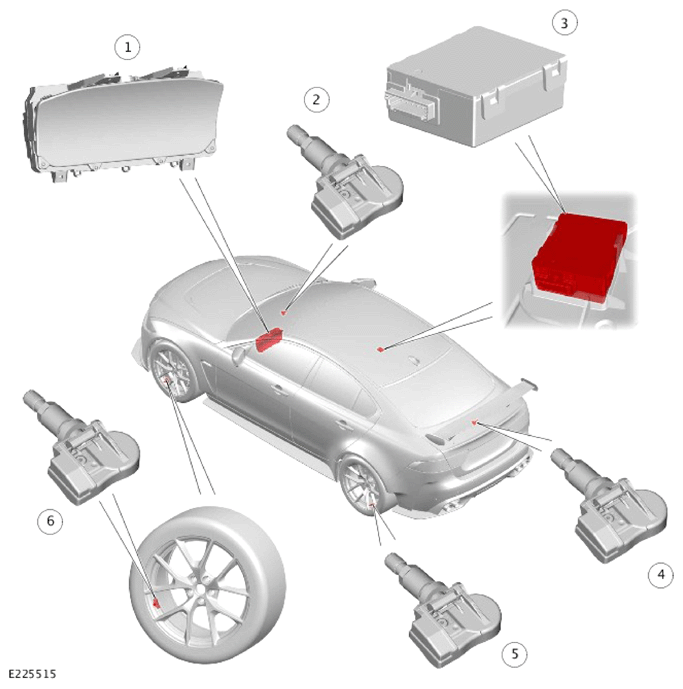

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Instrument Cluster (IC) |
| 2 |
Front right Tire Pressure Monitoring System (TPMS) sensor |
| 3 |
Tire Pressure Monitoring System Control Module (TPMSCM) |
| 4 |
Rear right TPMS sensor |
| 5 |
Rear left TPMS sensor |
| 6 |
Front left TPMS sensor |
