Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = Hardwired; AN = High Speed (HS) Controller Area Network (CAN) Powertrain Bus; F = RF Transmission.

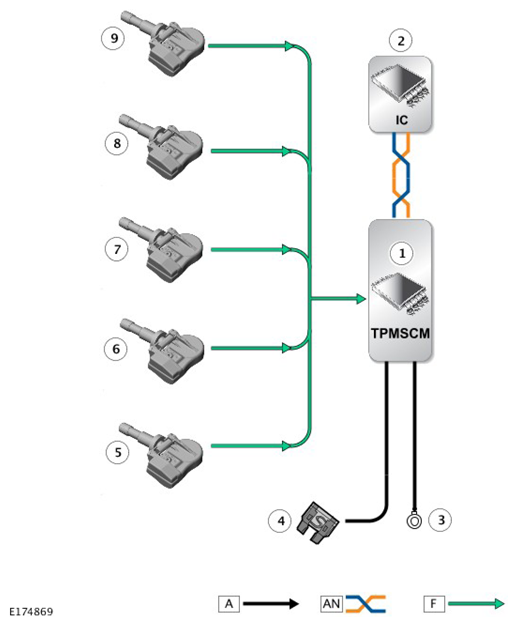

| ITEM | DESCRIPTION |
|---|---|
| 1 | Tire Pressure Monitoring System Control Module (TPMSCM) |
| 2 | Instrument Cluster (IC) |
| 3 | Ground wire |
| 4 | Power supply |
| 5 | Tire Pressure Sensor - left front |
| 6 | Tire Pressure Sensor - right front |
| 7 | Tire Pressure Sensor - left rear |
| 8 | Tire Pressure Sensor - right rear |
| 9 | Tire Pressure Sensor - spare (if a full-size spare wheel is fitted) |
