Torque Specifications
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers with a green background are a single use component.
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |||
|---|---|---|---|---|---|---|
| 1 | Front bumper upper bolts | 1.7 | - | 15 | ||
| 2 | Radiator grille screws | 2 | - | 18 | ||
| 3 | Front bumper bolts to fender | 2.5 | - | 22 | ||
| 4 | Front bumper lower screws | 2 | - | 18 | ||
| 5 | Headlamp washer jet screws | 2.5 | - | 22 | ||
| 6 | Front armature bolts | 110 | 81 | - | ||
| 7 | Front subframe to body bolts | Stage 1 - 100 Nm | Stage 2 - 180 Degrees | Stage 1 - 74 lb-ft | Stage 2 - 180 Degrees | - |

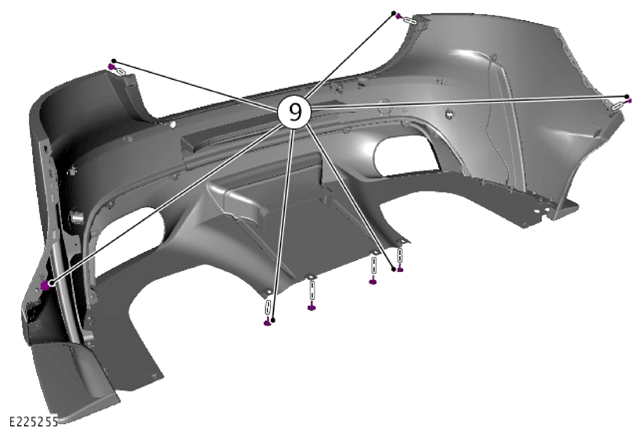

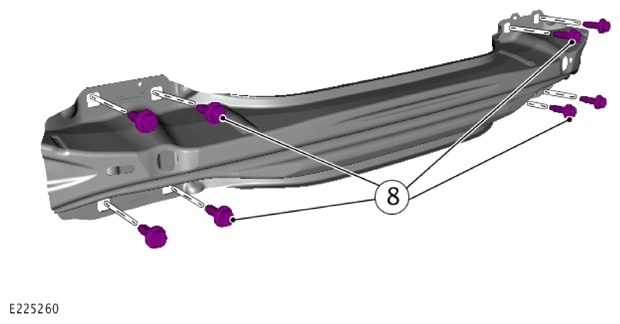

| 8 | Rear armature bolts | 170 | 125 | - | ||

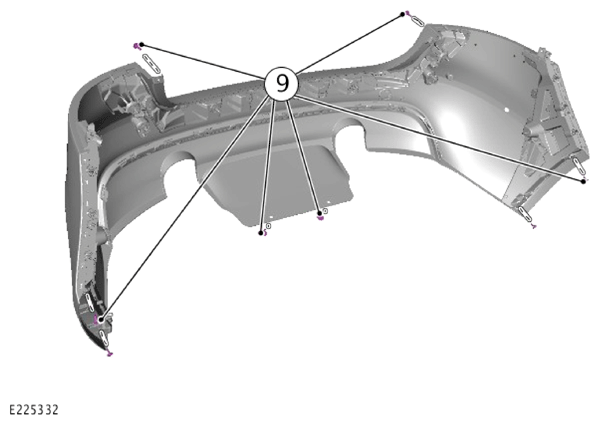

| 9 | Rear bumper bolts | 2 | - | 18 | ||
