Rear Bumper - Project 8 (G2245716): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not attempt to pull or bend the bumper assembly to improve or achieve alignment to the vehicle body panels. Failure to follow this caution could result in damage to the bumper.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
NOTE: Repeat the procedure for the other side.

Remove the rear wheel arch liner.

Refer to: REAR WHEEL ARCH LINER - PROJECT 8
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

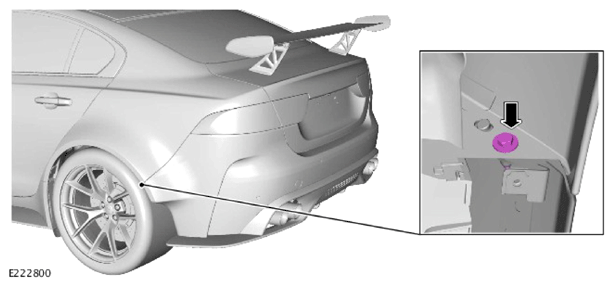

Remove the outside bolt from the rear bumper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

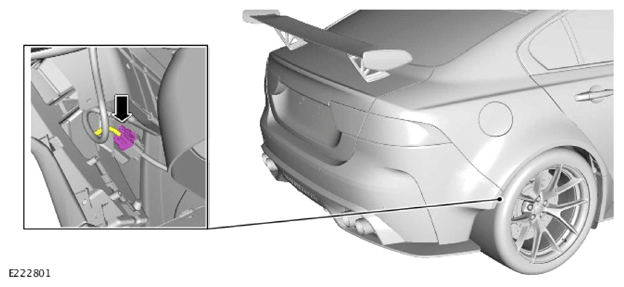

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

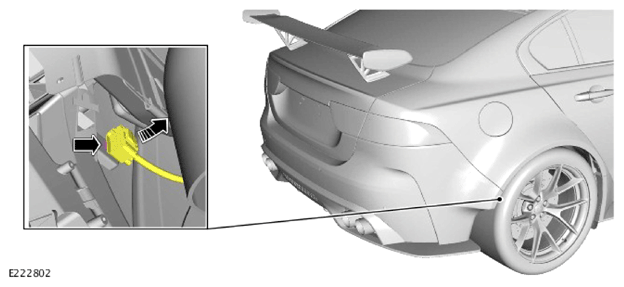

Release the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

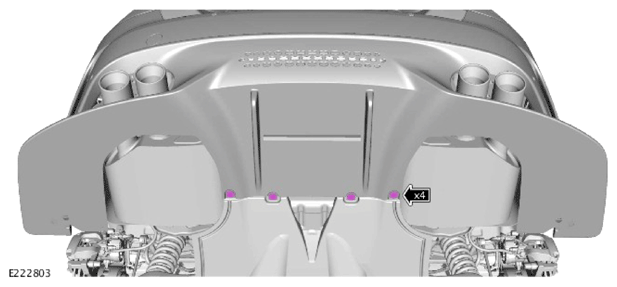

Remove the 4 lower bolts from the rear bumper.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

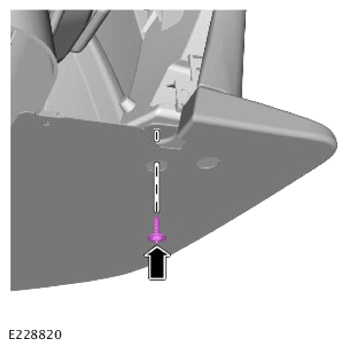

Remove the outside screw from the rear bumper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

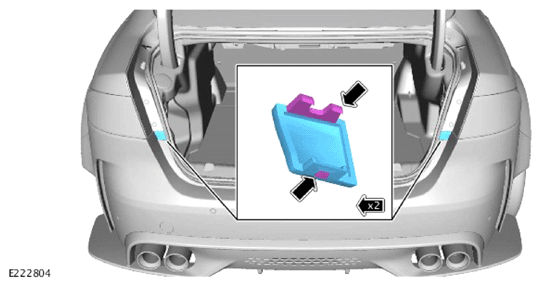

Remove the 2 covers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

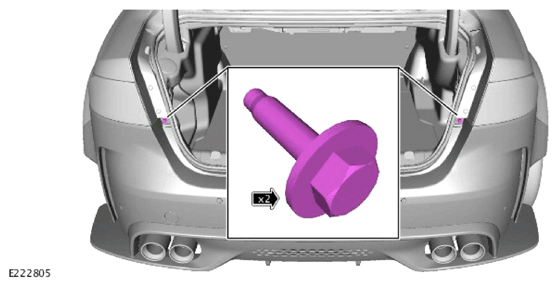

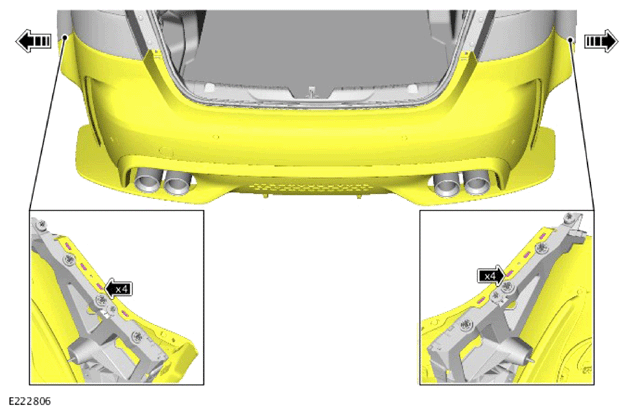

Remove the 2 upper bolts from the rear bumper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

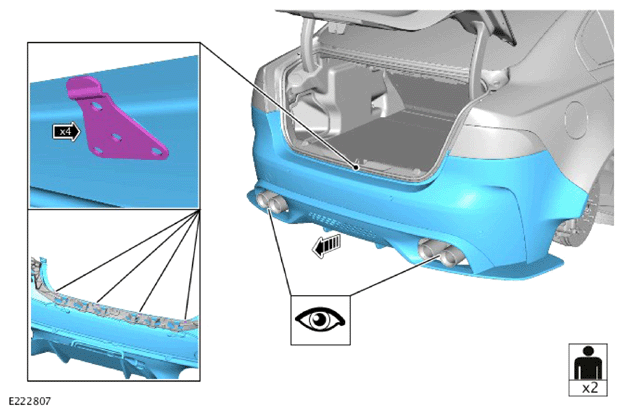

Release the rear bumper on both sides.
CAUTION: Make sure to protect the paintwork.

NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

With assistance, remove the rear bumper.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

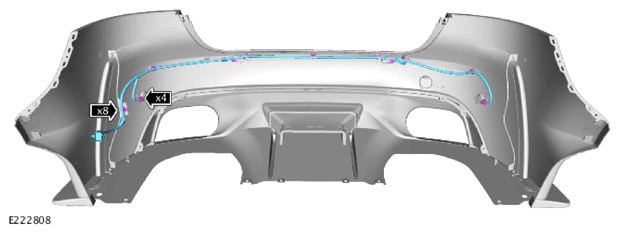

- Disconnect the 4 electrical connectors from the parking aid sensors.
- Carefully release the 8 clips.
- Remove the rear bumper wiring harness.
CAUTION: Take extra care not to damage the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

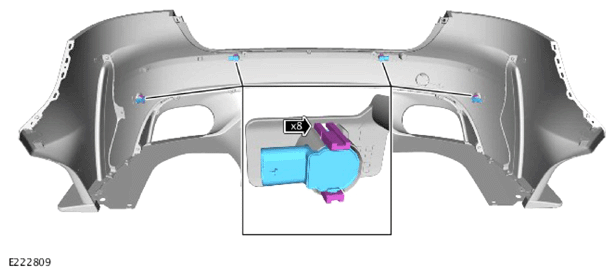

Remove the 4 parking aid sensors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

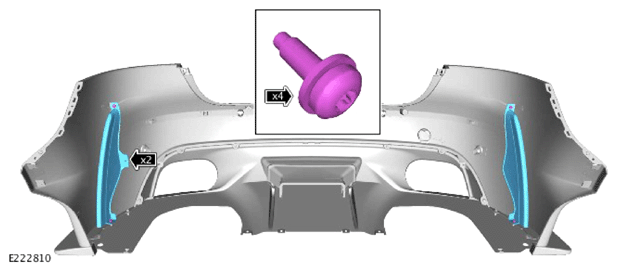

- Remove the 4 screws.
- Remove the 2 outside finishers from the rear bumper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

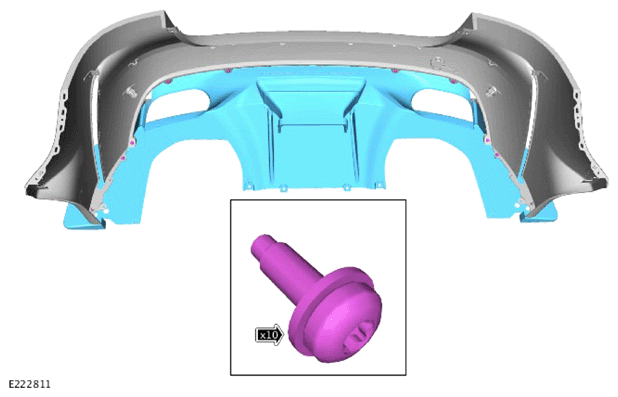

- Remove the 10 bolts.
- Remove the rear valance.
