Rear Bumper (G2203902): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
-
NOTE: Repeat the step for the other side.

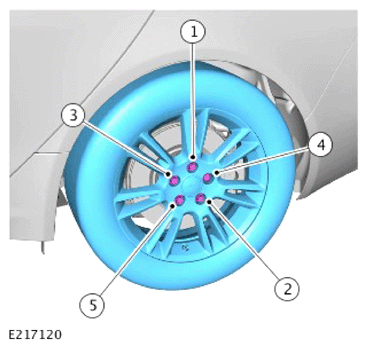

Remove the rear wheel and tire.
-
NOTE: Repeat the step for the other side.

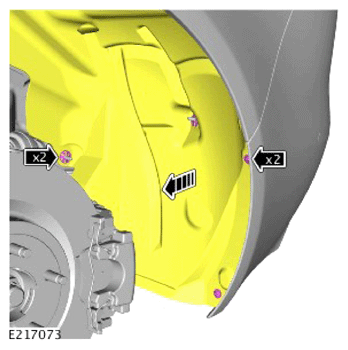

- Remove the 2 screws.
- Remove the 2 nuts.
- Release the rear section of the wheel arch liner.
-
NOTE: Repeat the step for the other side.

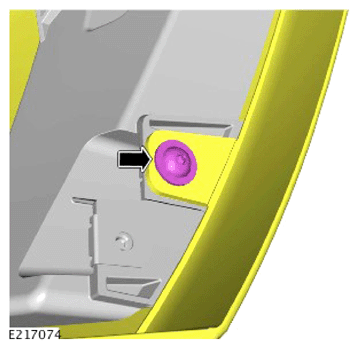

Remove the rear bumper outer screw.
-
NOTE: Right side only.

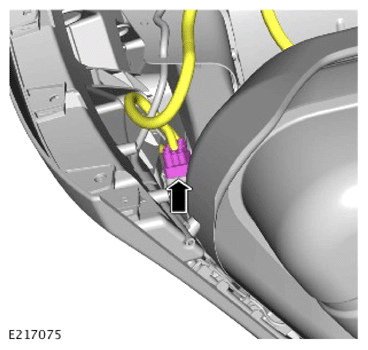

Disconnect the electrical connector.

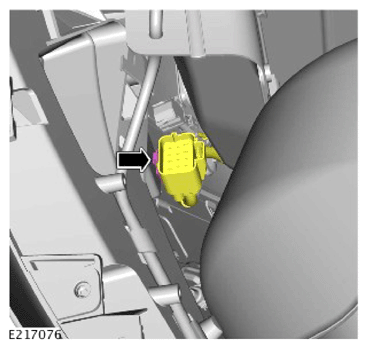

Release the electrical connector.

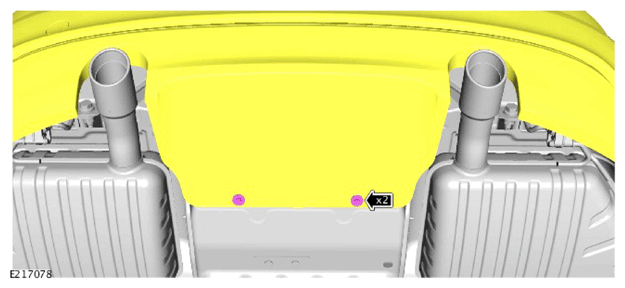

Remove the 2 rear bumper lower bolts.

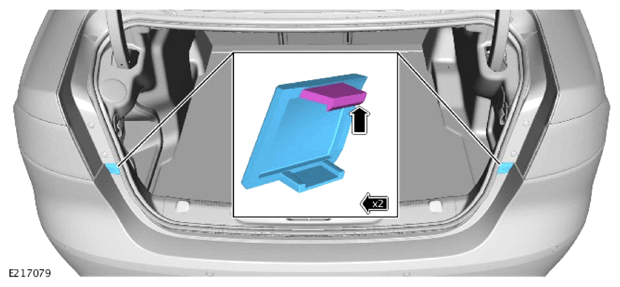

Remove the 2 covers.

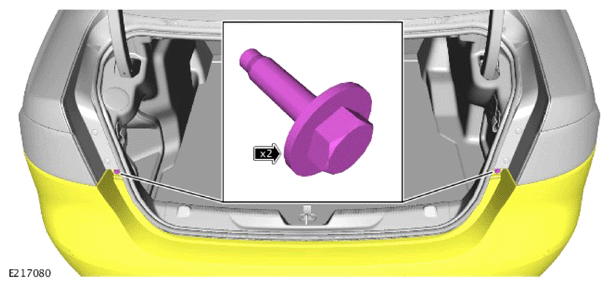

Remove the 2 rear bumper upper bolts.

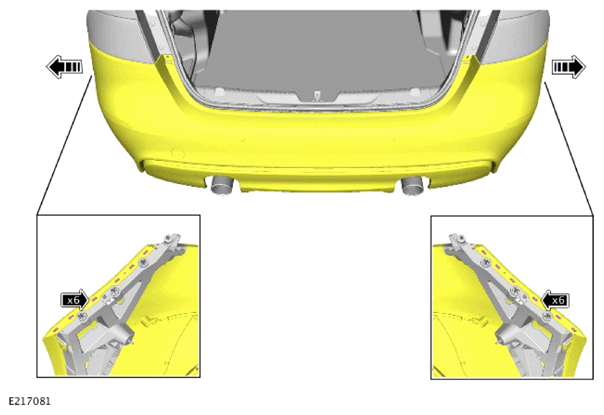

Release the rear bumper on both sides.
-
CAUTION: Make sure to protect the paintwork.

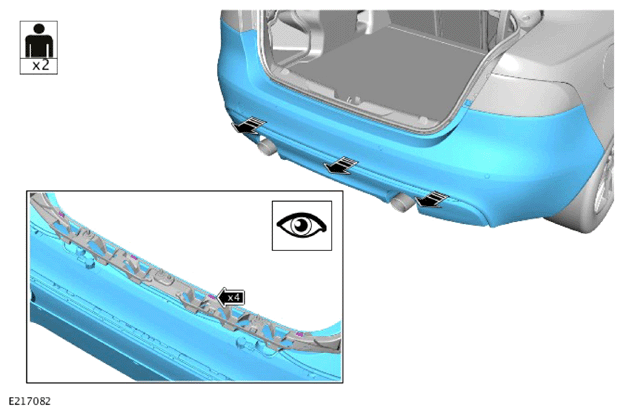

Remove the rear bumper.
-
NOTE: Only do the following step(s) if a new component is to be installed.

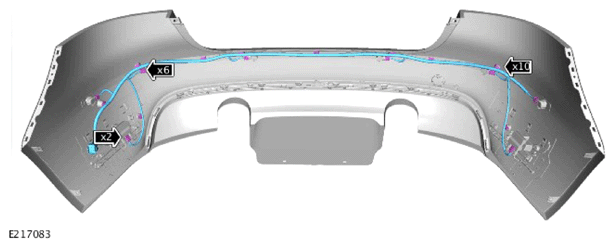

- Disconnect the 2 electrical connectors from the hands-free tailgate modules.
- Disconnect the 4 parking aid sensor connectors.
- Disconnect the 2 park assist sensor connectors.

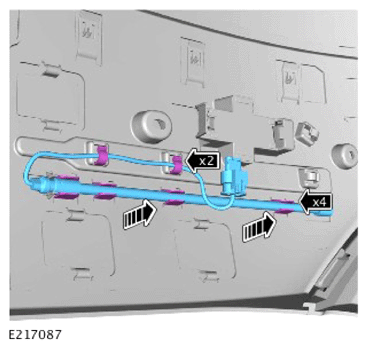

- Carefully release the 10 clips.
- Remove the rear bumper harness.
-
CAUTION: Take extra care not to damage the clips.

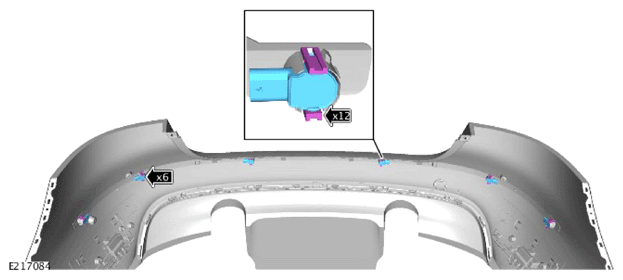

- Remove the 4 parking aid sensors.
- Remove the 2 park assist sensors.

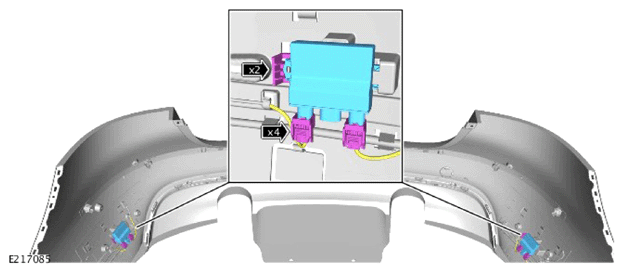

- Disconnect the 4 electrical connectors.
- Remove the 2 hands-free tailgate modules.
-
CAUTION: Take extra care not to damage the clips.

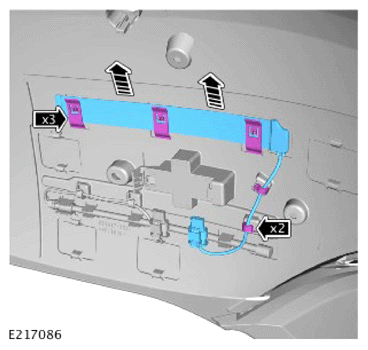

Remove the hands-free tailgate upper sensor.
-
CAUTION: Take extra care not to damage the clips.
Remove the hands-free tailgate lower sensor.
