Rear Armature - Project 8 (G2247806): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- With assistance, remove the rear bumper.
Refer to: REAR BUMPER - PROJECT 8

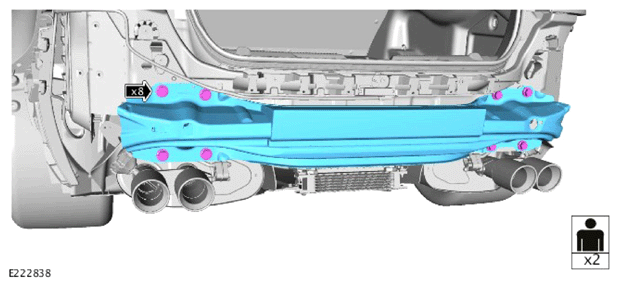

- Remove the 8 bolts.
- With assistance, remove the rear armature.
