Front Bumper Cover Insert (G1821559): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: FRONT BUMPER - PROJECT 8

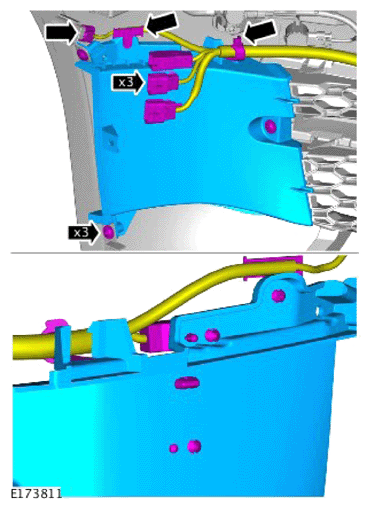

  3. G14011754Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 2.5Nm

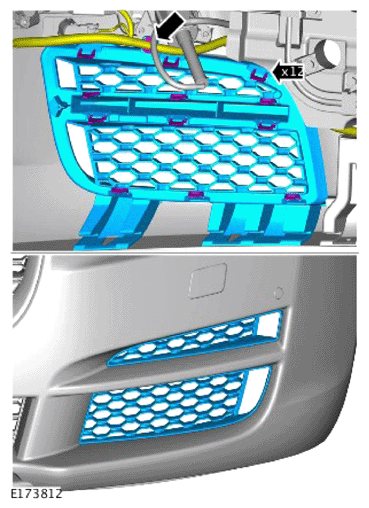

  4. G14011755Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
