Front Bumper - Project 8 (G2245715): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not attempt to pull or bend the bumper assembly to improve or achieve alignment to the vehicle body panels. Failure to follow this caution could result in damage to the bumper.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8
NOTE: Repeat the procedure for the other side.

Remove the front wheel arch liner.

Refer to: FRONT WHEEL ARCH LINER - PROJECT 8
CAUTION: Clamp the hoses to minimize fluid loss.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

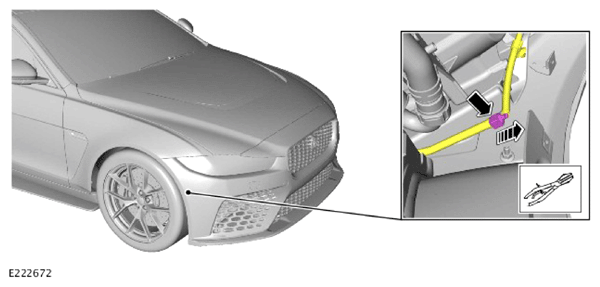

Release the washer jet hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

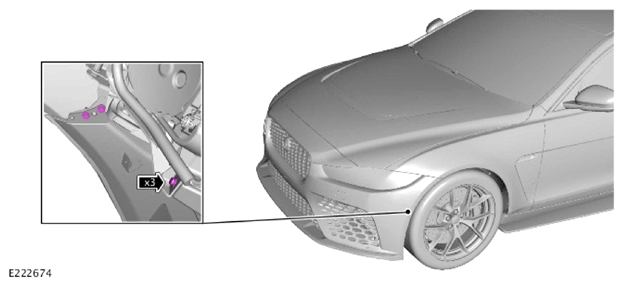

Remove the 3 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

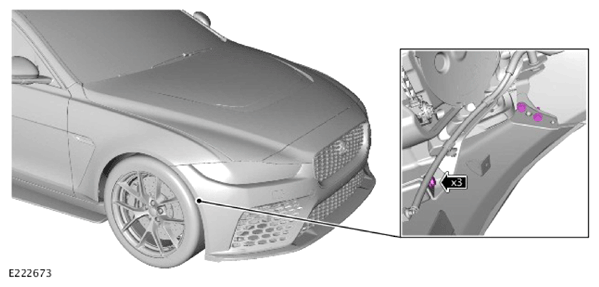

Remove the 3 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

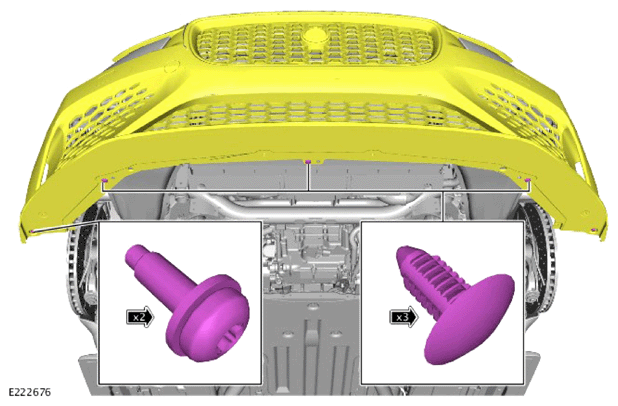

Remove the 2 lower screws and 3 clips from the front bumper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

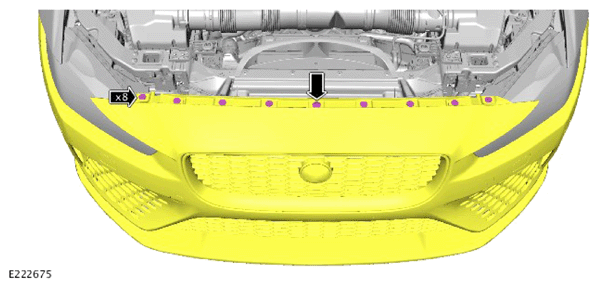

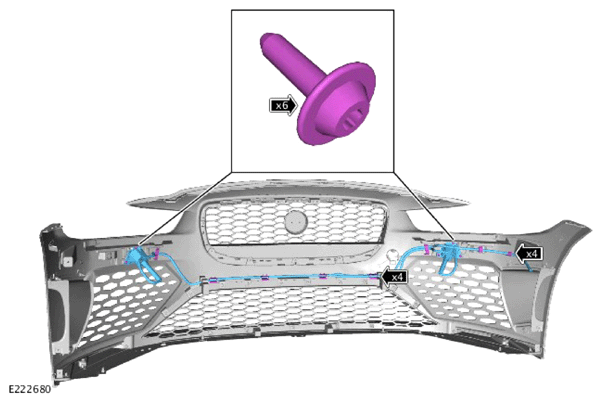

Remove the 8 upper screws and clip from the front bumper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

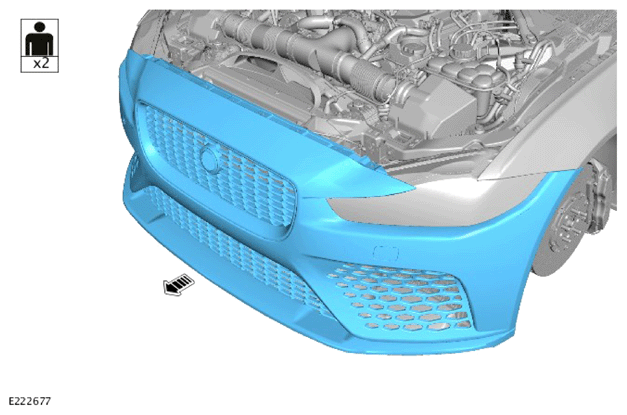

With assistance, remove the front bumper.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

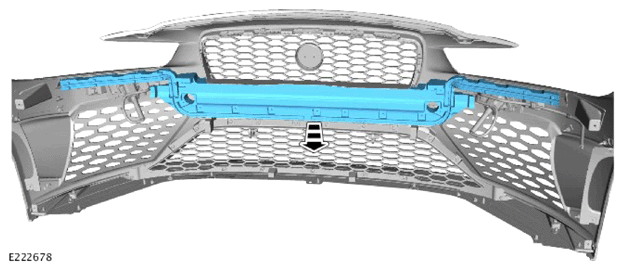

Remove the front bumper insulator foam.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

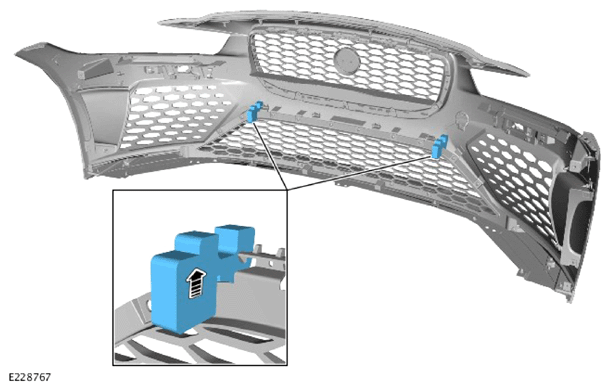

Remove the headlamp washer jet covers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

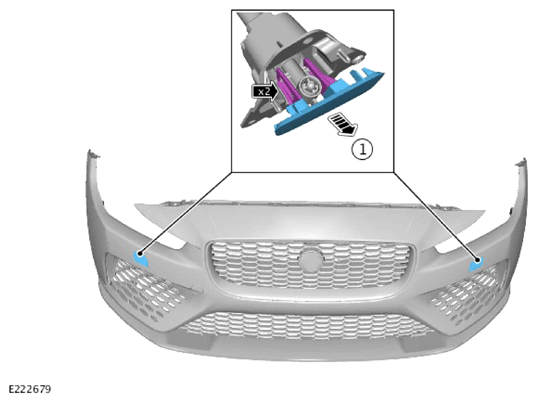

Remove the headlamp washer jets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 lower foams from the lower grille.
NOTE: Note the different lengths of the screws.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

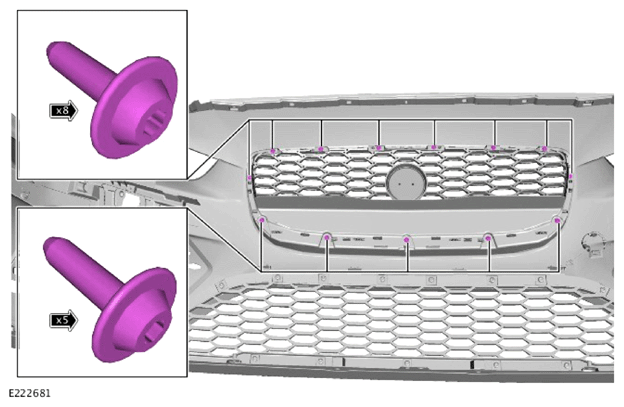

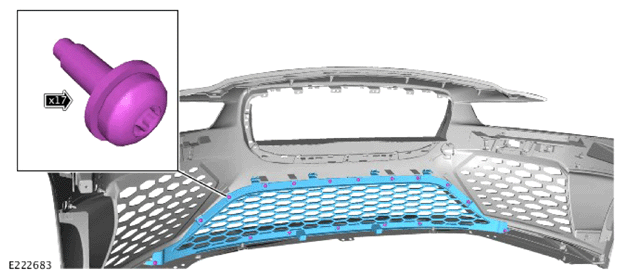

Remove the 8 upper and 5 lower screws.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

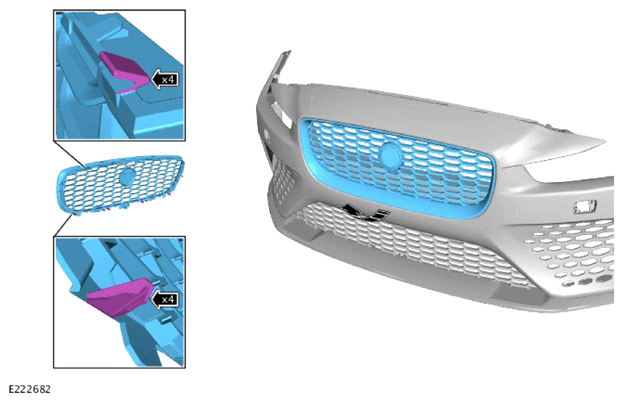

Remove the radiator grille.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front bumper lower grille.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

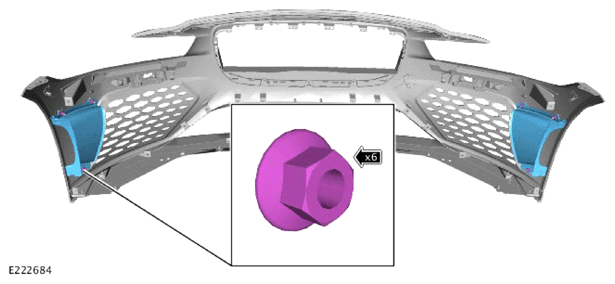

Remove the 2 air ducts from the front bumper.
