Front Bumper (G1822130): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
The ignition must be switched off.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: RADIATOR SPLASH SHIELD (G1817598)

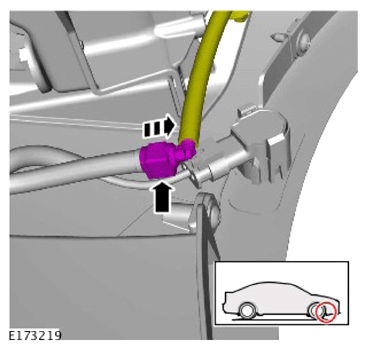

NOTE: Left side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Right side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

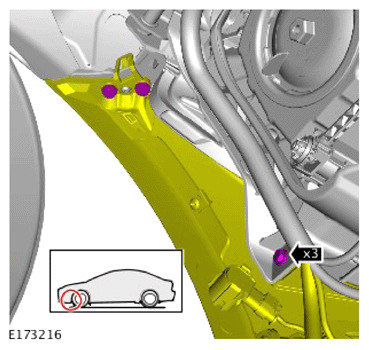

NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

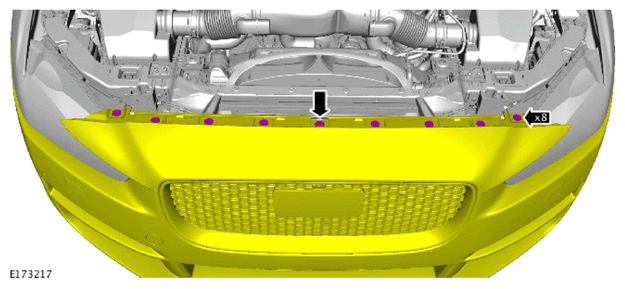

Torque : 2.5Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 1.7Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

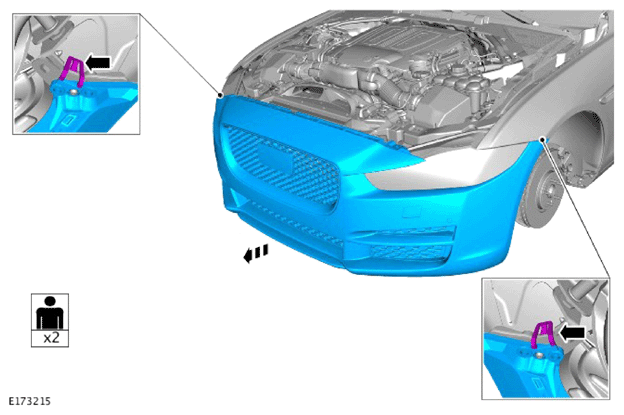

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

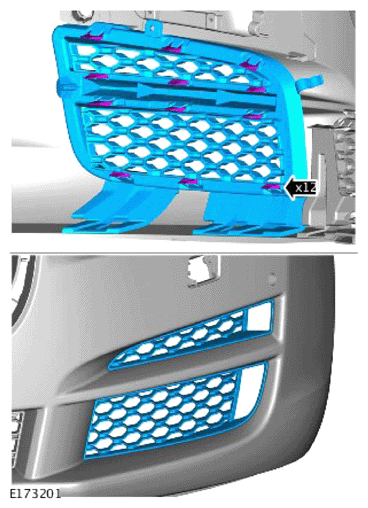

NOTE:
- Do not disassemble further if the component is removed for access only.
- Repeat the step for the other side.

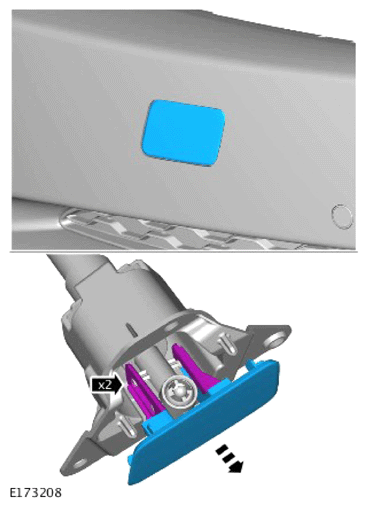

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 0.5Nm

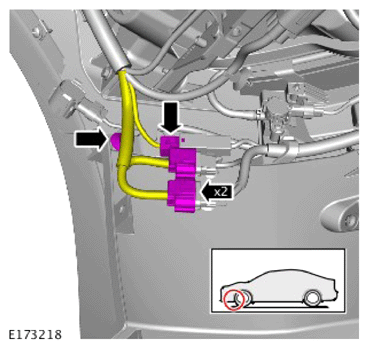

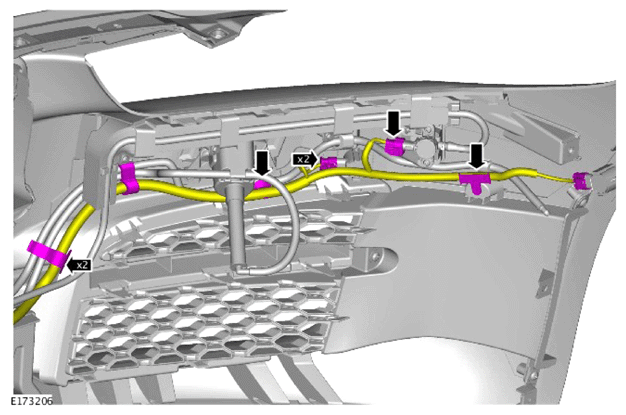

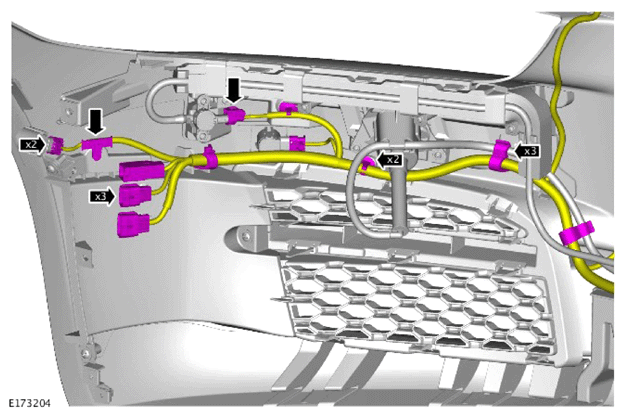

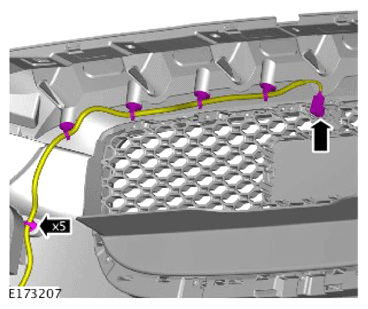

CAUTION: Take extra care not to damage the wiring harnesses.

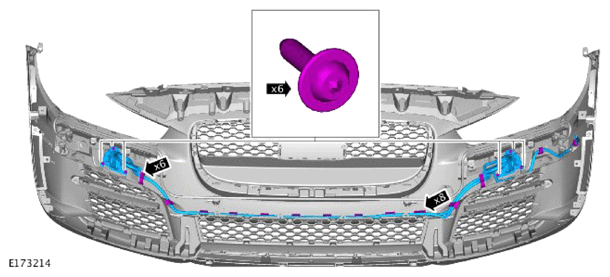

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

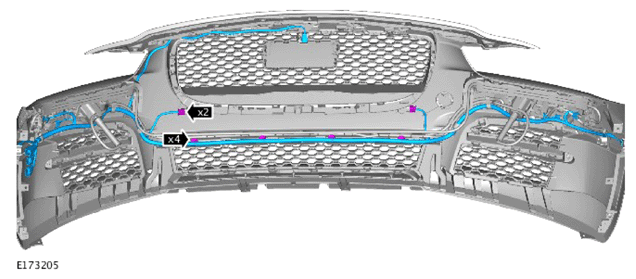

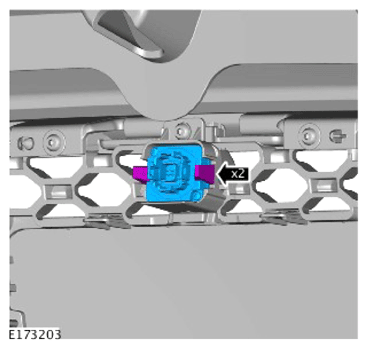

CAUTION: Take extra care not to damage the wiring harnesses.

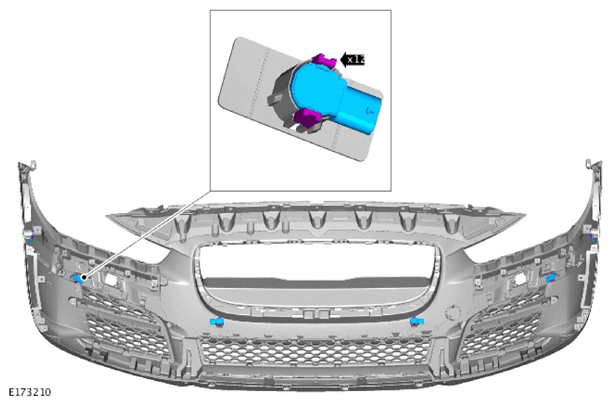

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

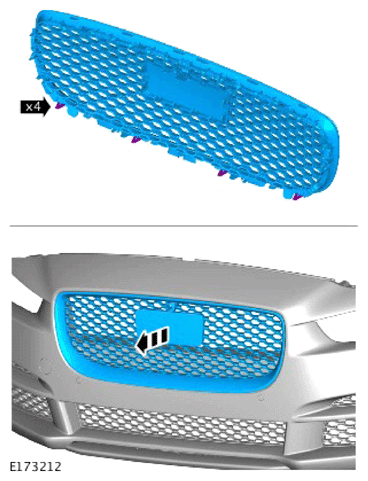

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2.5Nm

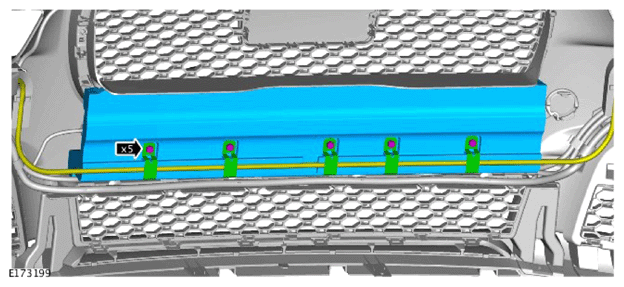

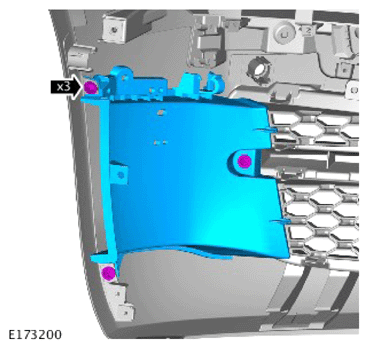

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2Nm

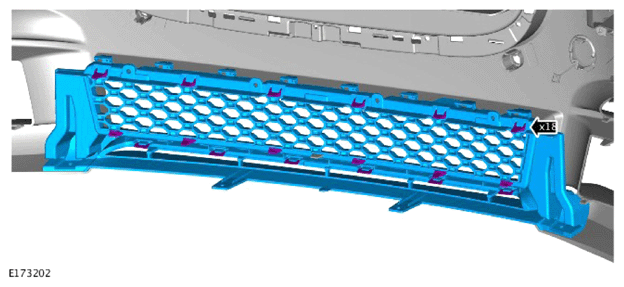

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2Nm

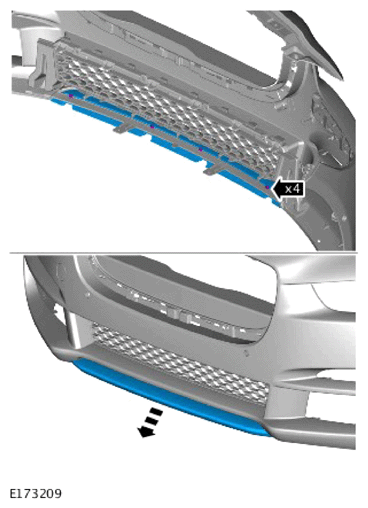

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Repeat the step for the other side.

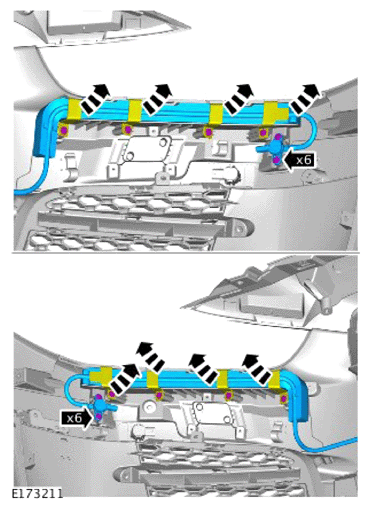

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 2Nm
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

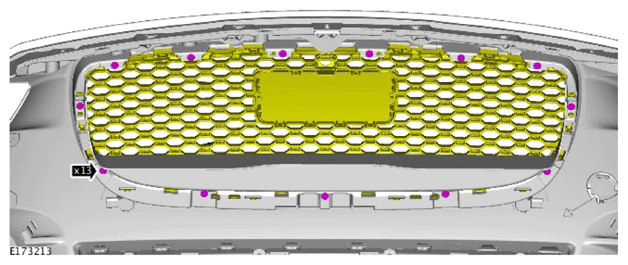

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
