Front Armature - Project 8 (G2247805): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
With assistance, remove the front bumper.
Refer to: FRONT BUMPER - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 fasteners.
- Remove the 2 radiator side panels.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

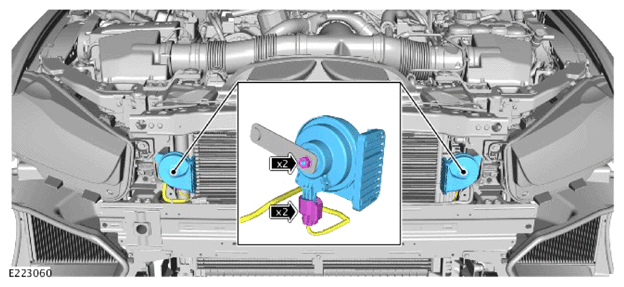

- Disconnect the electrical connector.
- Remove the nut.
- Remove the horn assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

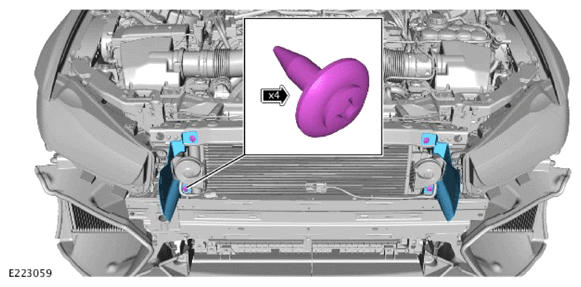

- Remove the 4 fasteners.
- Remove the radiator lower panel.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

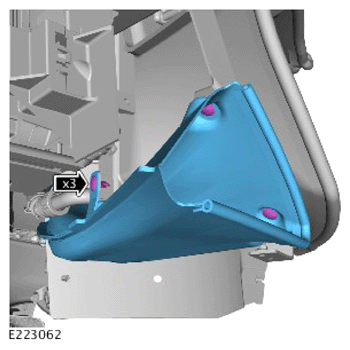

- Remove the 3 clips.
- Remove the brake cooling air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

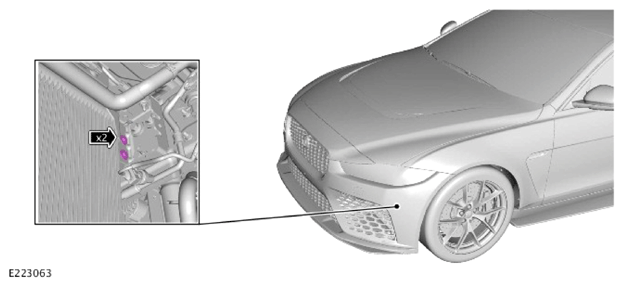

Remove the 2 bolts from the auxiliary radiator duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts from the auxiliary radiator duct.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

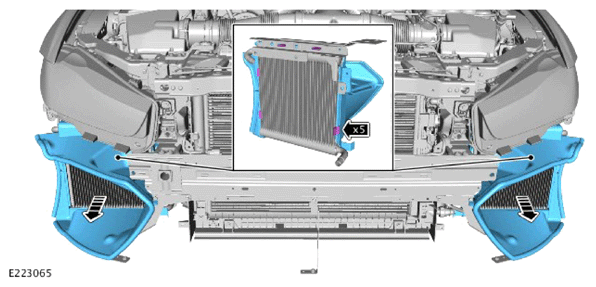

Remove the auxiliary radiator ducts on both sides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

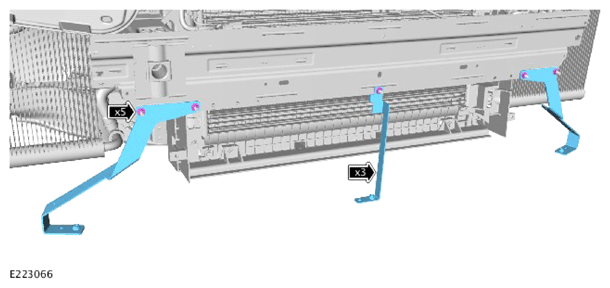

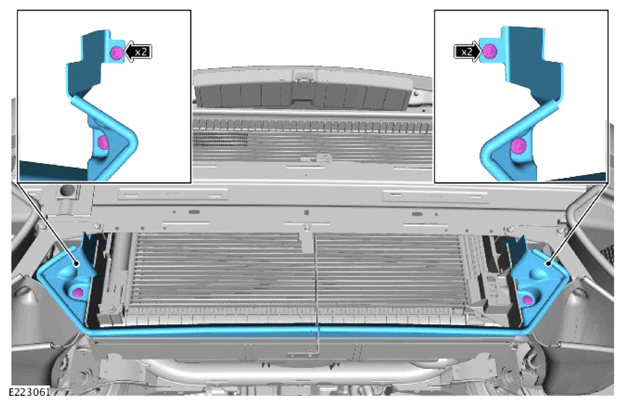

- Remove the 5 nuts.
- Remove the 3 brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

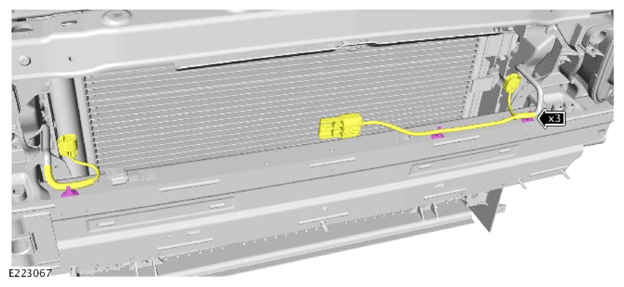

Release the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

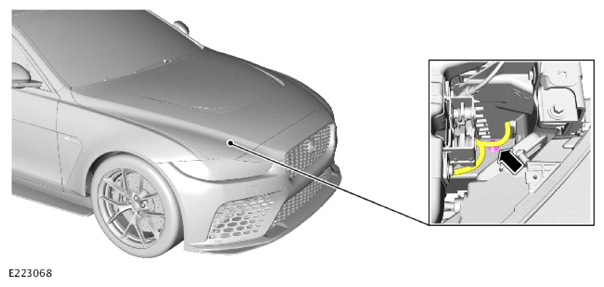

Release the clip.
NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

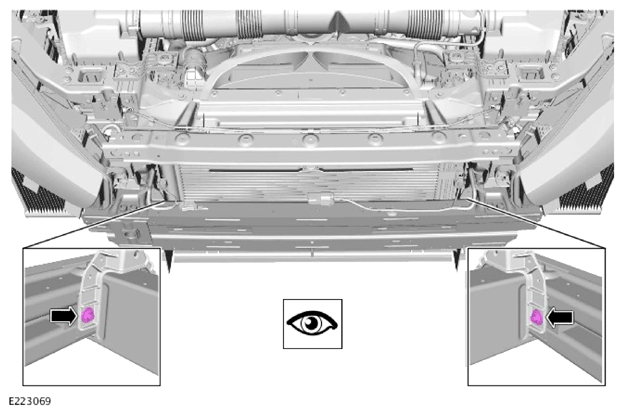

Remove the 2 inside bolts from the front armature.
NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

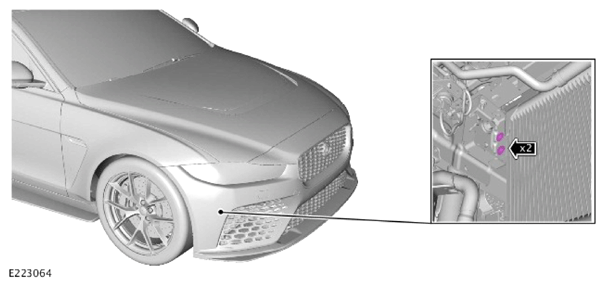

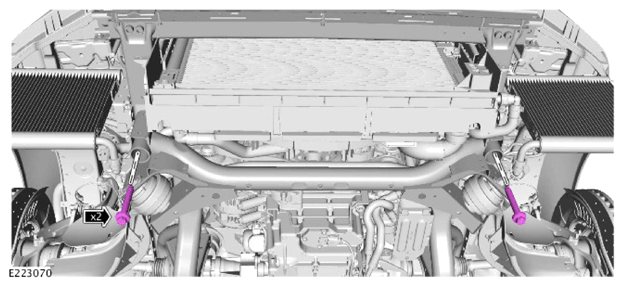

Remove the 2 bolts from the front subframe.
NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

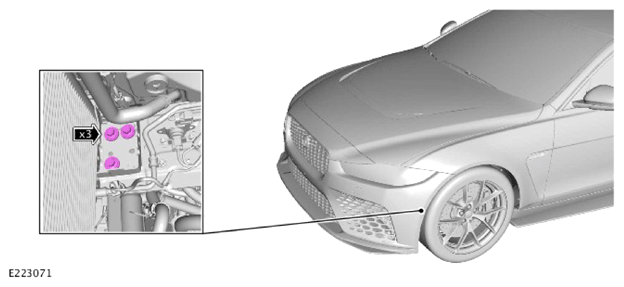

Remove the 3 bolts on the left side of the front armature.
NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

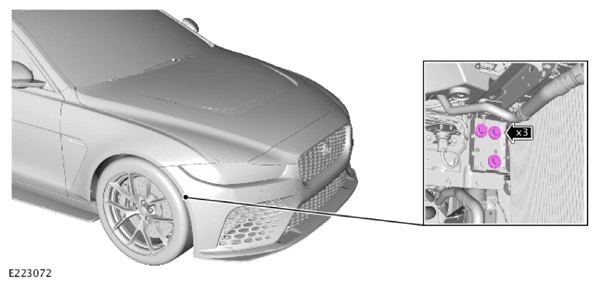

Remove the 3 bolts on the right side of the front armature.
NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

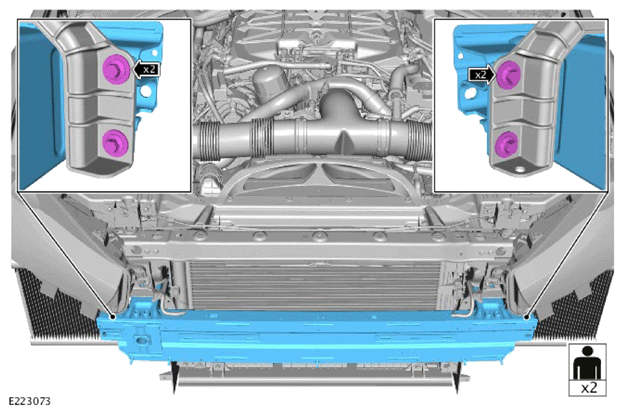

- Remove the 4 bolts.
- With assistance, remove the front armature.
