Front Armature (G1818677): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
-
NOTE: Repeat the procedure for the other side.
Refer to: HEADLAMP ASSEMBLY
-

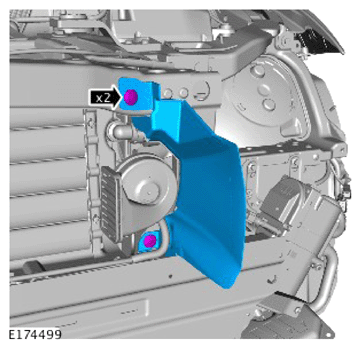

NOTE: Repeat the step for the other side.
-

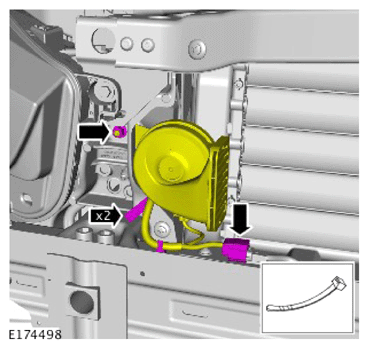

NOTE: Repeat the step for the other side.
-

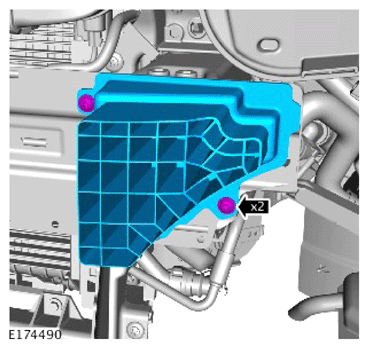

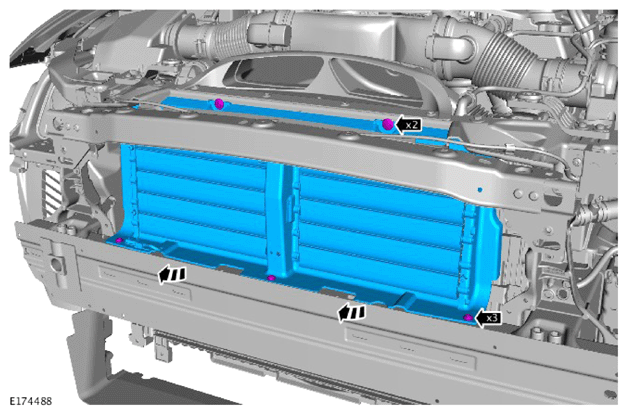

CAUTION: Take extra care not to damage the component.

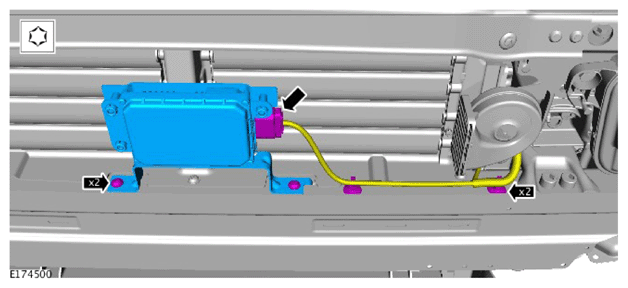

Torque : 9Nm
Torque : 25Nm
Torque : 25Nm

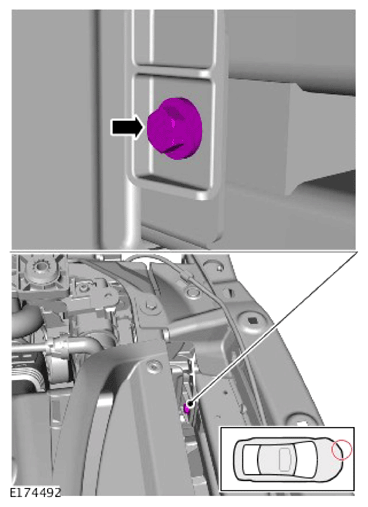

Torque : 7Nm
-

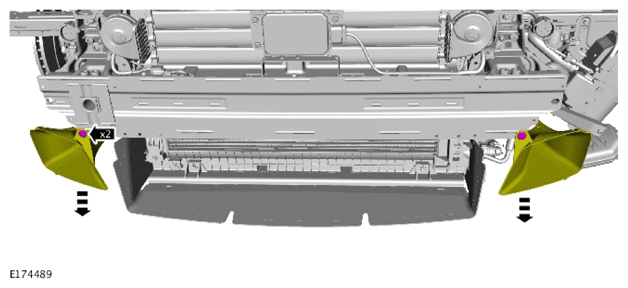

NOTE:
- Repeat the step for the other side.
- Make sure that new bolts are installed.
Renew Part: Radiator guard bolts Quantity: 2 .
Torque : 110Nm
-

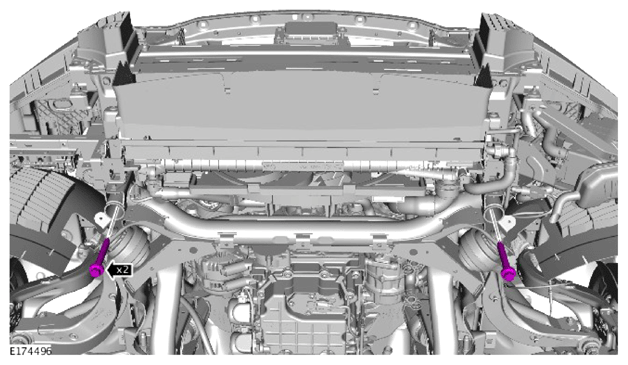

NOTE: Make sure that new bolts are installed.
Renew Part: Front subframe to body bolts Quantity: 2 .
Torque
Stage 1: 100Nm
Stage 2: 180°
-

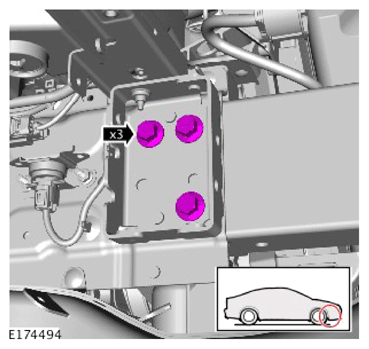

NOTE: Make sure that new bolts are installed.
Renew Part: Front armature to front subframe bolt Quantity: 3 .
Torque : 110Nm
-

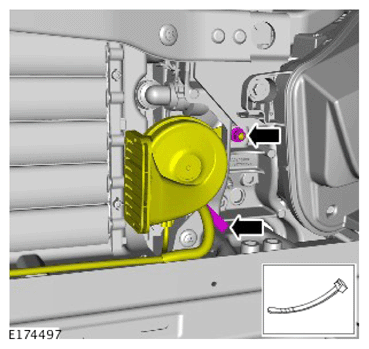

CAUTION: Take extra care not to damage the component.
Torque : 10Nm
-

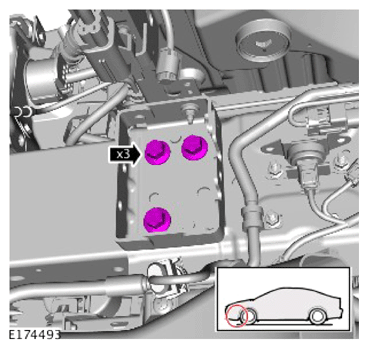

NOTE:

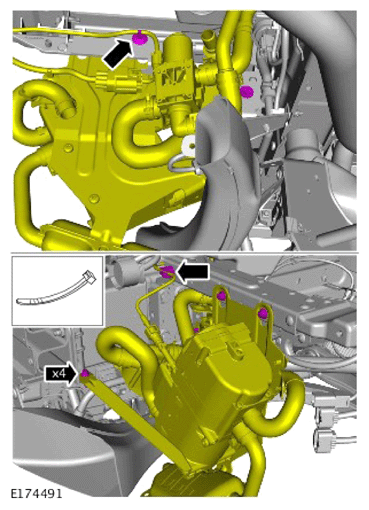

- Fuel fired booster heater (FFBH) shown removed for clarity.
- Make sure that new bolts are installed.
Renew Part: Front armature to front subframe bolt Quantity: 3 .
Torque : 110Nm
-

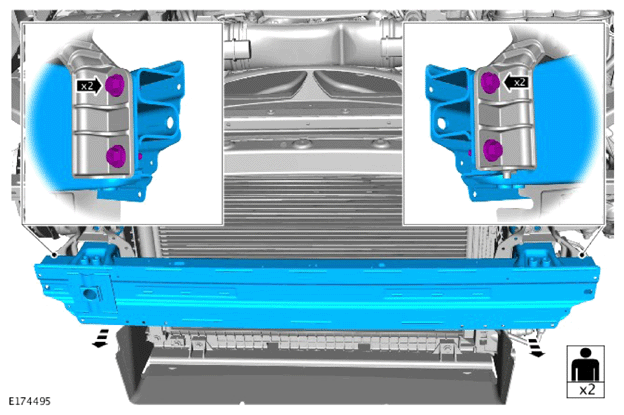

NOTE: Discard the bolts.
Renew Part: Front armature to front subframe bolt Quantity: 4 .
