Front Armature (G1818677): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Make sure that new bolts are installed.

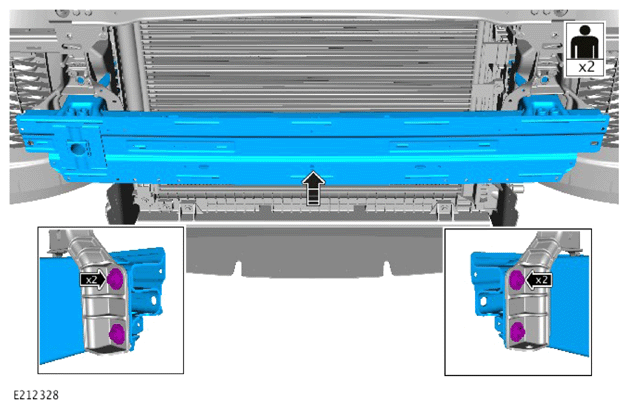

    G14011696Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 110Nm

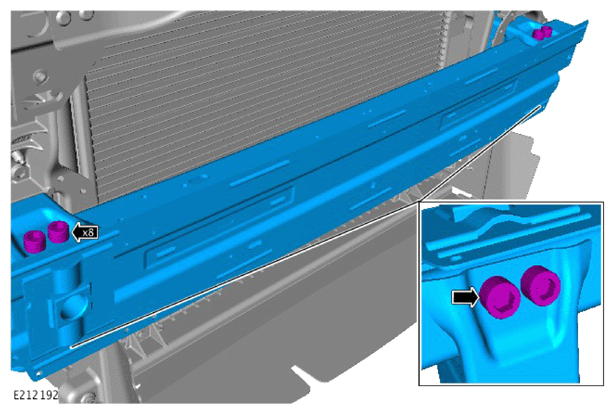

  2. G14011697Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 8 bolts.

    Torque  : 110Nm

  3. To install, reverse the removal procedure.
  4. Refer to: BODY AND FRAME COMPONENT DIMENSIONS
